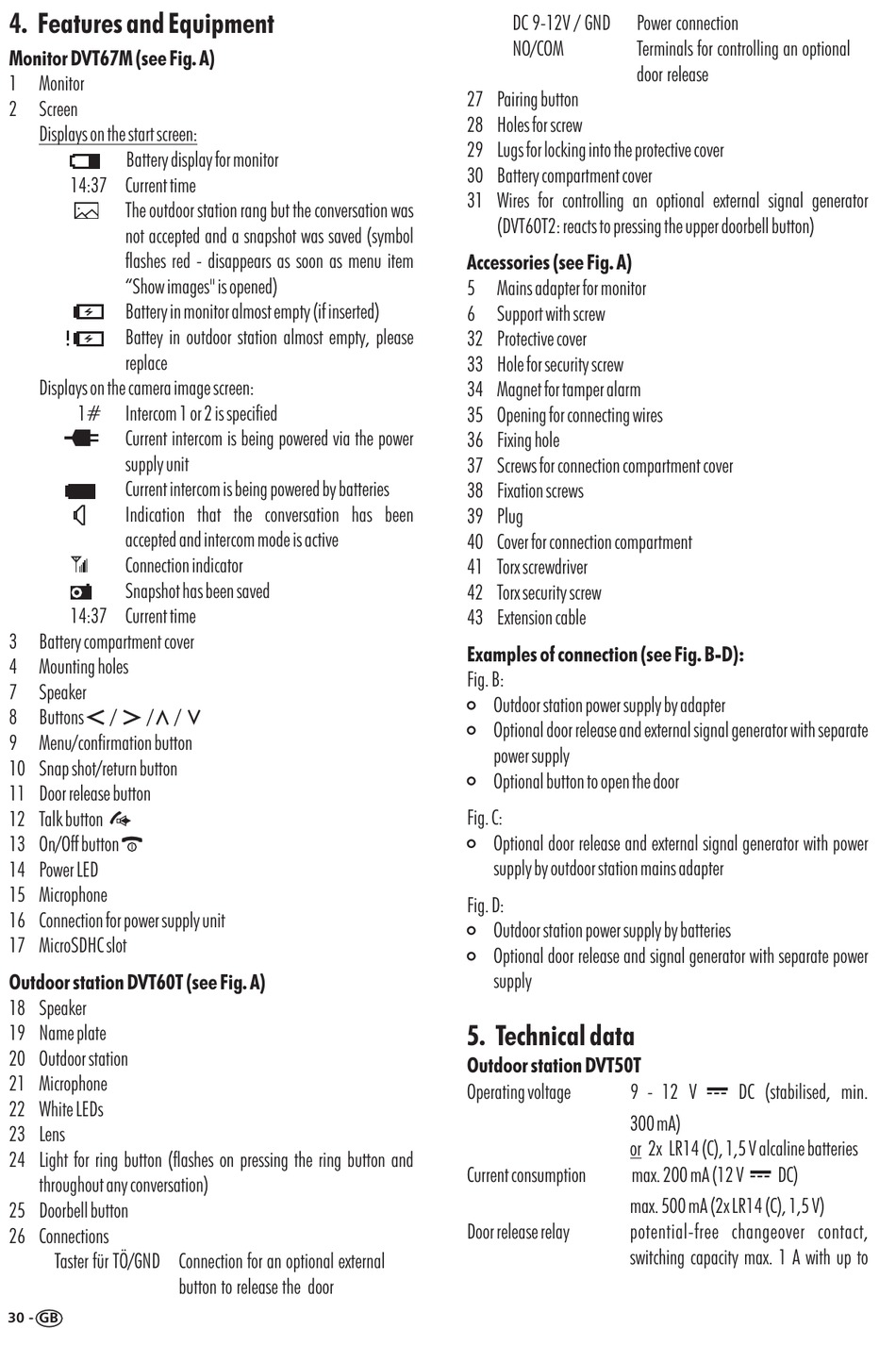

4. Features and Equipment

Monitor DVT67M (see Fig. A)
1 Monitor
2 Screen
Displays on the start screen:
Battery display for monitor
14:37 Current time
The outdoor station rang but the conversation was
not accepted and a snapshot was saved (symbol
flashes red - disappears as soon as menu item
"Show images" is opened)
Battery in monitor almost empty (if inserted)
Battey in outdoor station almost empty, please
replace
Displays on the camera image screen:
1# Intercom 1 or 2 is specified
Current intercom is being powered via the power
supply unit
Current intercom is being powered by batteries
Indication that the conversation has been
accepted and intercom mode is active
Connection indicator
Snapshot has been saved
14:37 Current time
3 Battery compartment cover
4 Mounting holes
7 Speaker
8 Buttons / / /
9 Menu/confirmation button
10 Snap shot/return button
11 Door release button
12 Talk button
13 On/Off button
14 Power LED
15 Microphone
16 Connection for power supply unit
17 MicroSDHC slot
Outdoor station DVT60T (see Fig. A)
18 Speaker
19 Name plate
20 Outdoor station
21 Microphone
22 White LEDs
23 Lens
24 Light for ring button (flashes on pressing the ring button and
throughout any conversation)
25 Doorbell button
26 Connections
Taster für TÖ/GND Connection for an optional external
30 - GB
button to release the door
DC 9-12V / GND
NO/COM
27 Pairing button
28 Holes for screw
29 Lugs for locking into the protective cover
30 Battery compartment cover
31 Wires for controlling an optional external signal generator
(DVT60T2: reacts to pressing the upper doorbell button)
Accessories (see Fig. A)
5 Mains adapter for monitor
6 Support with screw
32 Protective cover
33 Hole for security screw
34 Magnet for tamper alarm
35 Opening for connecting wires
36 Fixing hole
37 Screws for connection compartment cover
38 Fixation screws
39 Plug
40 Cover for connection compartment
41 Torx screwdriver
42 Torx security screw
43 Extension cable
Examples of connection (see Fig. B-D):
Fig. B:
#
Outdoor station power supply by adapter
#
Optional door release and external signal generator with separate
power supply
#
Optional button to open the door
Fig. C:
#
Optional door release and external signal generator with power
supply by outdoor station mains adapter
Fig. D:
#
Outdoor station power supply by batteries
#
Optional door release and signal generator with separate power
supply

5. Technical data

Outdoor station DVT50T
Operating voltage 9 - 12 V
300mA)
or
Current consumption max. 200 mA (12 V
max. 500 mA (2x LR14 (C), 1,5 V)
Door release relay potential-free changeover contact,
switching capacity max. 1 A with up to
Power connection
Terminals for controlling an optional
door release
"
DC (stabilised, min.
2x LR14 (C), 1,5 V alcaline batteries
"
DC)
