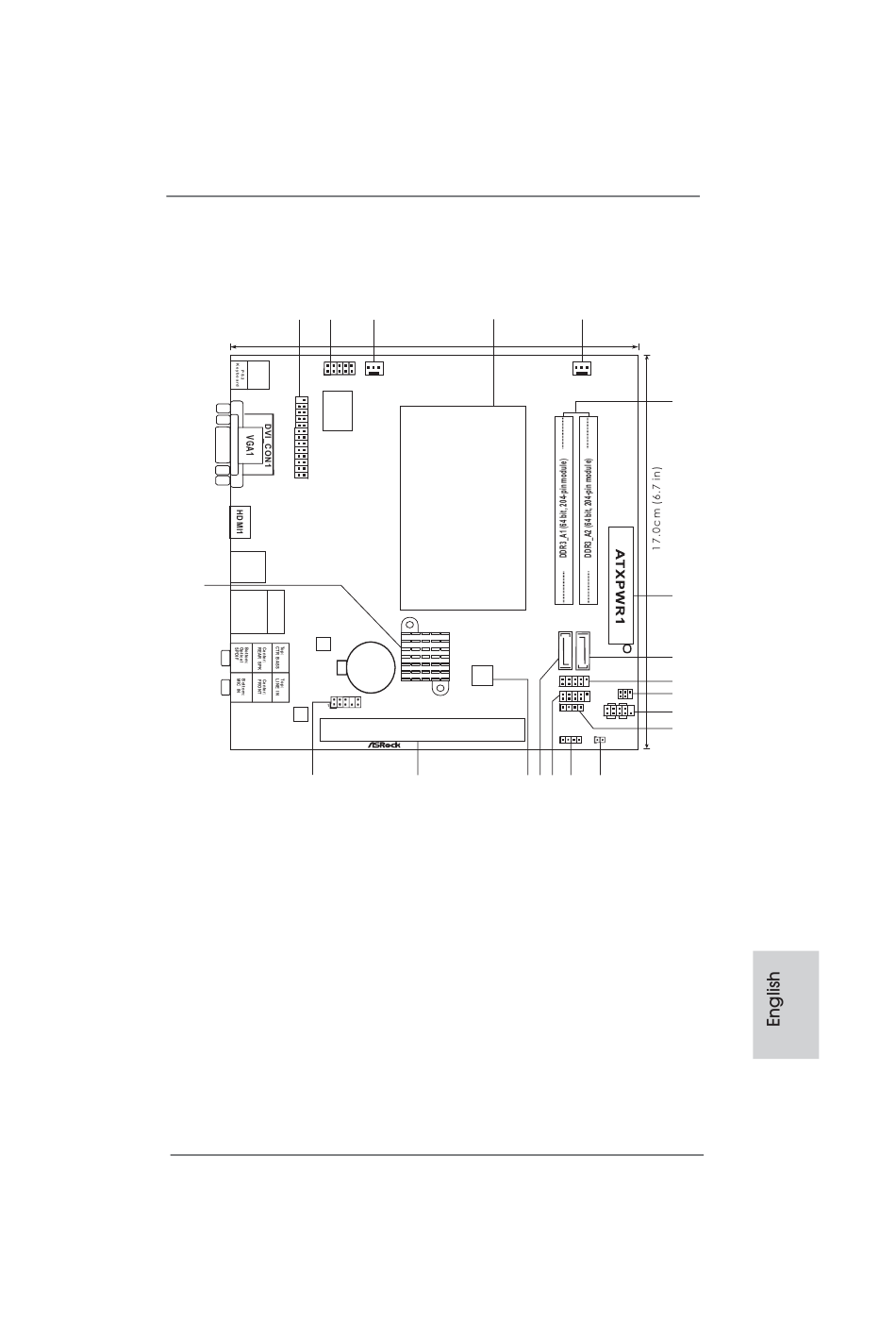

Motherboard Layout (AD2500-ITX)
1
2
COM1
USB 2.0
1
T: USB0
B: USB1
Super
IO
LPT1
1
USB 2.0
T: USB2
B: USB3
20
USB 2.0
Top:
T: USB4
RJ-45
B: USB5
LAN
PHY
HD_AUDIO1
AUDIO
CODEC
19
1
Print Port Header (LPT1, White)
2
COM Port Header (COM1)
3
CPU Fan Connector (CPU_FAN1)
4
CPU Heatsink
5
Chassis Fan Connector (CHA_FAN1)
6
2 x 240-pin DDR3 SO-DIMM Slots
(DDR3_A1, DDR3_A2, Black)
7
ATX Power Connector (ATXPWR1)
8
SATA2 Connector (SATAII_2, Blue)
9
USB 2.0 Header (USB8_9, Blue)
10
Infrared Module Header (IR1)
11
System Panel Header (PANEL1, White)
ASRock AD2700-ITX / AD2500-ITX Motherboard
3
4
17.0cm (6.7 in)
ErP/EuP Ready
CPU_FAN1
RoHS
CMOS
Battery
16Mb
BIOS
AD2500-ITX
PCI1
Design in Taipei
18
17
12
Consumer Infrared Module Header (CIR1)
13
Clear CMOS Jumper (CLRCMOS1)
14
Chassis Speaker Header
(SPEAKER 1, White)
15
USB 2.0 Header (USB6_7, Blue)
16
SATA2 Connector (SATAII_1, Blue)
17
16Mb SPI Flash
18
PCI Slot (PCI1)
19
Front Panel Audio Header
(HD_AUDIO1, White)
20
Intel NM10 Express Chip
5
CHA_FAN1
6
7
SATAII_1
SATAII_2
8
9
1
USB8_9
IR1
10
1
1
USB6_7
PLED PWRBTN
11
1
CIR1
1
HDLED RESET
PANEL 1
12
CLRCMOS1
SPEAKER1
1
1
16
15
14
13
3
