2.3 Installation of Memory Modules (SO-DIMM)
AD2700-ITX / AD2500-ITX motherboard provides two 240-pin DDR3 (Double Data
Rate 3) SO-DIMM slots.
1. It is not allowed to install a DDR or DDR2 memory module into DDR3
slot; otherwise, this motherboard and SO-DIMM may be damaged.
2. Please install the memory module from DDR3_A2 slot for the fi rst
priority.
Installing a SO-DIMM
Please make sure to disconnect power supply before adding or
removing SO-DIMMs or the system components.
Step 1.
Unlock a SO-DIMM slot by pressing the retaining clips outward.
Step 2.

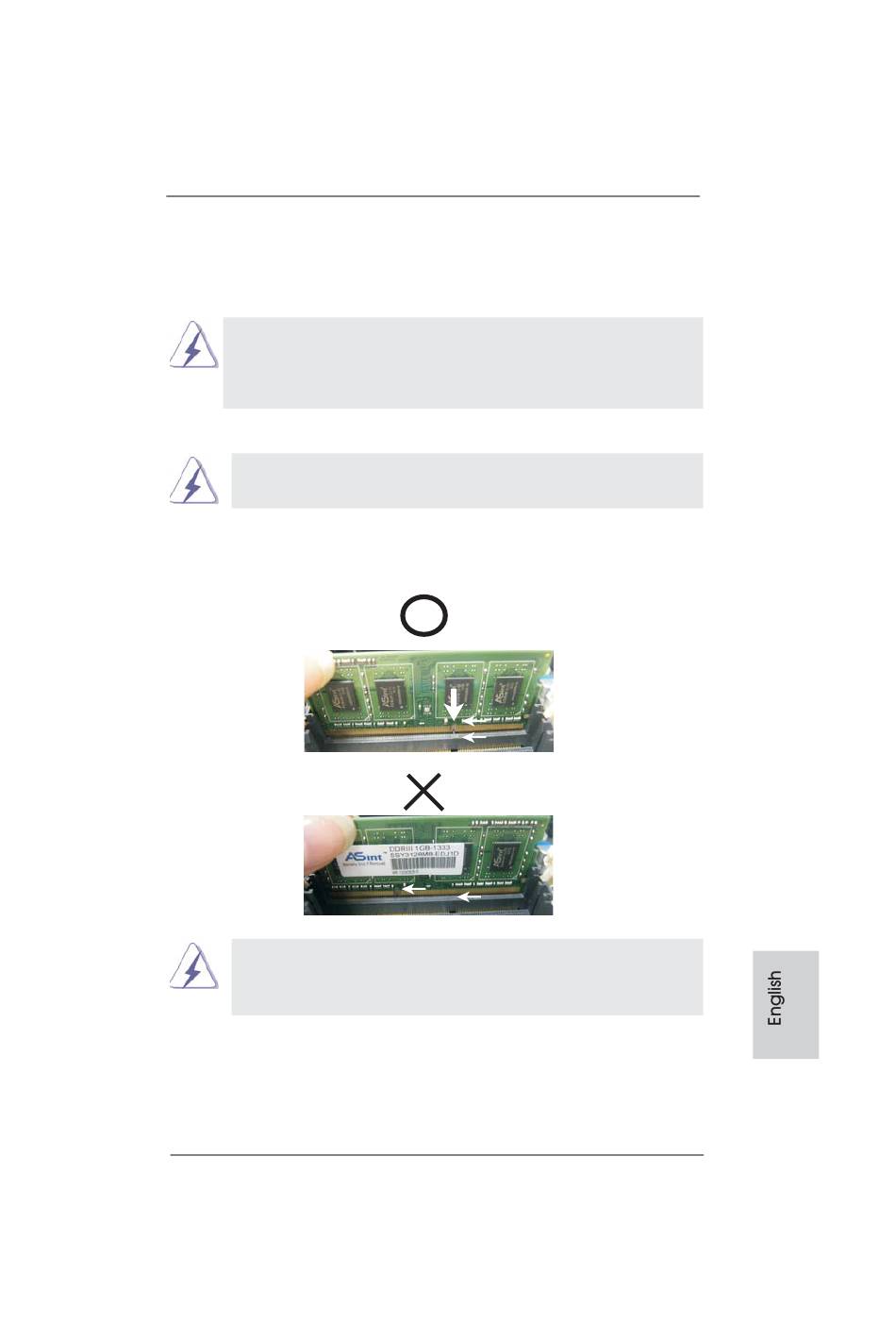

Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
The SO-DIMM only fi ts in one correct orientation. It will cause perma-
nent damage to the motherboard and the SO-DIMM if you force the SO-
DIMM into the slot at incorrect orientation.
Step 3.
Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.
ASRock AD2700-ITX / AD2500-ITX Motherboard
notch
break
notch
break
13
