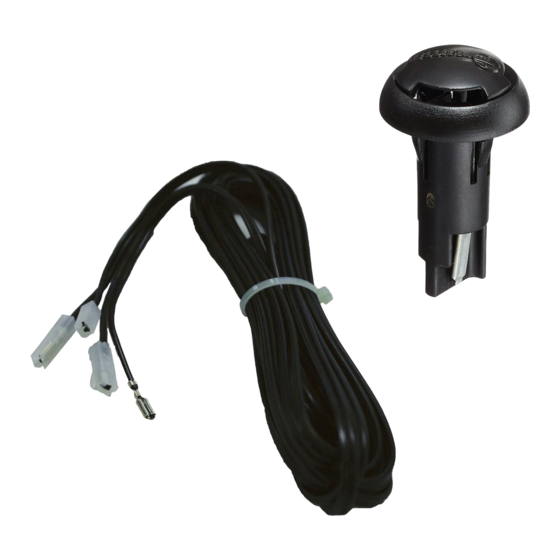

Raumtemperaturfühler FFC 2
Fernfühler für die Raumtemperatur
(für die Flüssiggasheizungen Trumatic C, Truma Combi, und
für die Elektro- Zusatzheizung Truma Ultraheat)
Bei der Platzwahl beachten, dass der Fühler nicht in der Nähe
fremder Wärmequellen (Warmluft-Austritt, Lampen, Kocher
usw.) oder an Positionen, an welchen sich ein Wärmestau
bilden kann (unterhalb eines Regales, in Ecken, hinter Vorhän-
gen), montiert werden darf.
Für eine optimale Regelung der Raumtemperatur empfehlen
wir, den Fühler über der Eingangstüre anzubringen.
Es ist darauf zu achten, dass der Fühler immer in eine
senkrechte Wand montiert wird. Er muss ungehindert
von der Raumluft umströmt werden.
Montageanweisung
1. Loch Ø 10 mm bohren.
2. Anschlusskabel von hinten durch die Bohrung führen und
am Fühler anstecken (es muss auf keine Polarität geachtet
werden).
3. Fühler (mit Anschlusskabel) in die Öffnung schieben, positi-
onieren und andrücken.
4. Das Kabelende mit den zwei isolierten Anschlusssteckern
zur Heizungselektronik verlegen (bei Bedarf mit einem Kabel
2 x 0,5 mm² verlängern).
Truma Combi
– Stecker des Anschlusskabels am Anschluss (1) aufstecken
(es muss auf keine Polarität geachtet werden).
Trumatic C / Truma Ultraheat
– Mit dem Adapterkabel verbinden und am Zubehörstecker
einstecken. Dadurch ist die Fühlerperle des Bedienteils au-
ßer Funktion.
10 mm
12 V
1
Truma Combi
Trumatic C
Room temperature sensor FFC 2
Remote sensor for the room temperature
(for L.P.G. heaters Trumatic C, Truma Combi and for the elec-
trical supplementary heater Truma Ultraheat)
When selecting the location, bear in mind that the sensor
must not be subjected to any heat source (warm air outlet,
light, oven / cooker etc.) or near a confined area where heat
can accumulate (under a shelf, near a corner, behind curtains).
For optimum room temperature control we recommend instal-
ling the sensor above the entrance door.
air from flowing around it.
Fitting instructions
1. Drill a hole 10 mm in diameter.
2. Guide the connection cable through the drillhole from be-
hind and plug the cable end to the sensor (there is no need
to be concerned about polarity).
3. Push the sensor (and the lead cable) into the opening, then
position and press down.
4. Install the head of the cable with the two insulated couple
connectors to the heating electronics (if required, extend
this using a 2 x 0.5 mm² cable).
Truma Combi
– Attach plug of connector cable to connection (1) (no need
to observe polarity).
Trumatic C / Truma Ultraheat
– Connect with the adaptor cable and connect to accessory
plug. This deactivates the temperature sensor in the control
panel.
Truma Ultraheat
Please ensure that the sensor is attached to a vertical
wall. There may be no obstructions preventing the room
