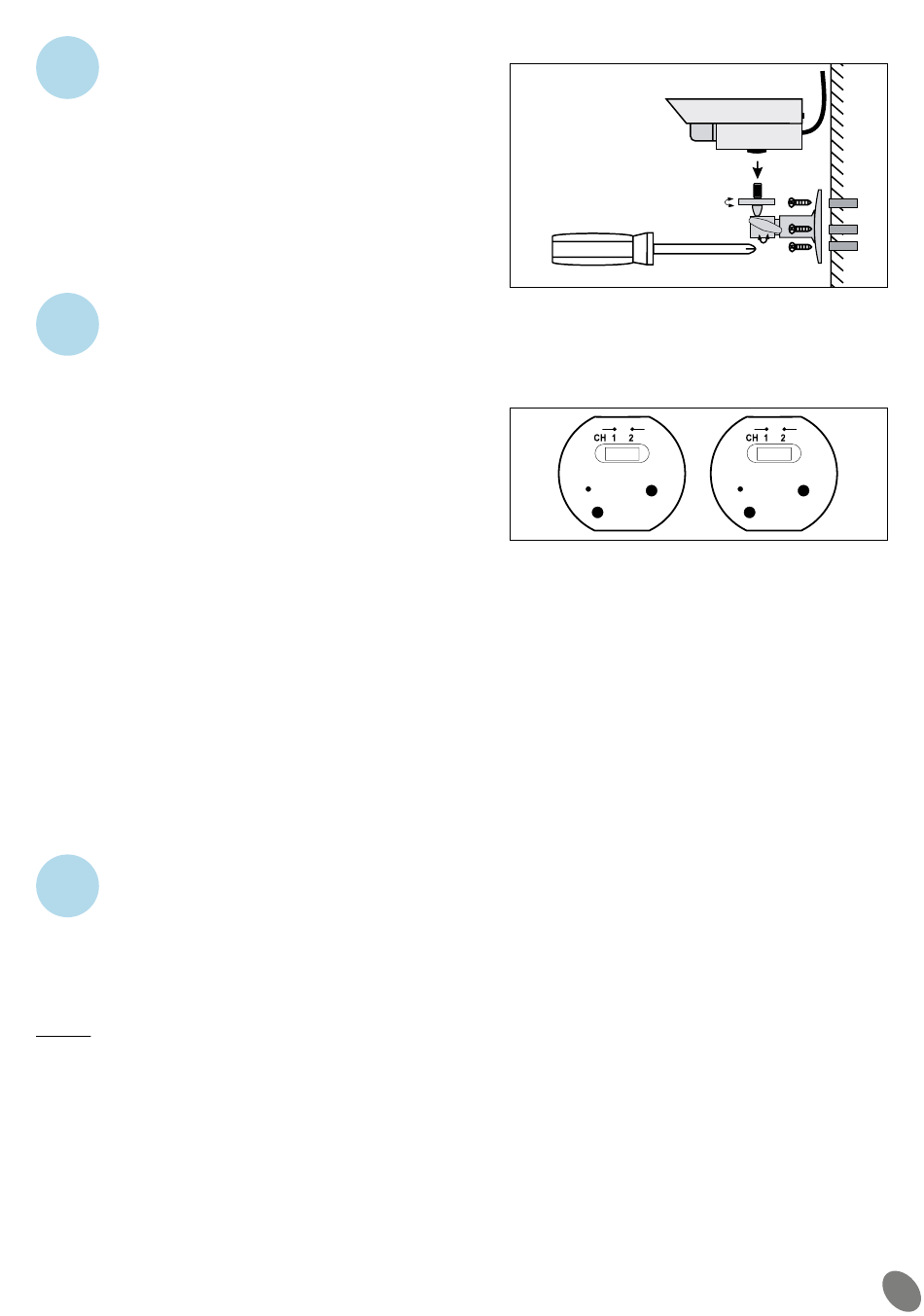

6 mounting tHE CAmErA SupportS
• Make sure that no element is blocking the installation.
• Choose an appropriate spot to attach the fixing support.
• Mount the part that goes on the wall with the provided
screws (insert a plug if necessary).
• Tighten the camera onto the support.
• Point the camera in the desired direction and tighten the
lateral support screw.

7 ConnECting tHE CAmErAS

1. Connect the 7.5 V adapter cord to the In socket of the camera.
2. Plug the adapter into an outlet.
3. Make sure to select the same channel for both camera and monitor.
A. Selecting the camera channel
When using for the first time, each camera transmits onto its own channel. As a
result, the monitor automatically displays Camera 1 on Channel 1 (CH1) and
Camera 2 on Channel 2 (CH2).
B. modification of the camera transmission channels
This adjustment should only be done if you want to change the transmission
channel of each camera. And if you want to change the channel of one of the
two cameras, you must also change the transmission channel of the 2nd camera.
Video transmission can take place on two different channels. To use the switch for choosing the channel, take off the cover located behind the camera
and use a pointed object, such as a pen.
Position the switch to the desired CH1 or CH2 channel.
Only one channel can be activated for each camera. If using two cameras, make sure that a different channel is selected for each camera.
Reinstall the rubber protection on the back of the camera.
C. Selecting the LCd monitor channel
The monitor can receive two different channels.
You have the choice of choosing one particular channel or of viewing up to two camera displays on the monitor.
d. infrared lighting
The infrared diodes do not produce light that is visible to the naked eye. The infrared lighting is automatically activated when it is dark.
8 inStALLAtion oF tHE LCd monitor
Install the monitor at approximately 1 metre above the ground (optimal conditions for reception).
To install the monitor, choose a spot away from walls made of reinforced concrete, mirrors, metal shelves, etc.
Keep the LCD monitor away from any device that may create a strong electrical interference. Any strong electrical field can cause interference and
affect the use of the monitor, e.g. WIFI.
Warning : The monitor should only be placed on hard and stable surfaces.
1. Antenna
2. LED indicating the selected channel (camera 1, camera 2, or both if the SCAN mode is activated)
3. + Adjustment knob (volume, bright, colour, contrast, hue)
4. - Adjustment knob (volume, bright, colour, contrast, hue)
5. Parameter chosen to be adjusted: (bright, colour, contrast, hue)
6. Screen mirror function
7. On/Off button
8. Channel selection or AUTO position (automatic scrolling of both cameras)
9. Screen support
10. Audio/ Video Out socket
11. Audio/ Video In socket
12. Adapter In socket
13. Adapter
14. 1 RCA-jack cable for Audio/Video socket
