3 tECHniCAL CHArACtEriStiCS

a. monitor (SVmn 82212)
Screen : 18 cm diagonally
Monitor power supply : 12 V DC
Consumption : 850 mA
Channels : 2
Frequency transmission : 2.4-2.4835 GHz
Video output level : 1 Vp-p / 75 Ω
Audio mono output level : 1 Vp-p / 600 Ω
Dimensions : « 184x53x127 (mm) »
Weight : 680 grams
Temperature range of use : approximately -10°C to + 50° C
Audio/Video jack connections : 3.5 mm jack
Resolution: 320 x 240 pixels at 25 frames per second
or 640 x 480 pixels at 25 frames per second
Frames per second: 25
4 inStALLAtion
Warning : Check that no element prevents the
screws from going into the walls.

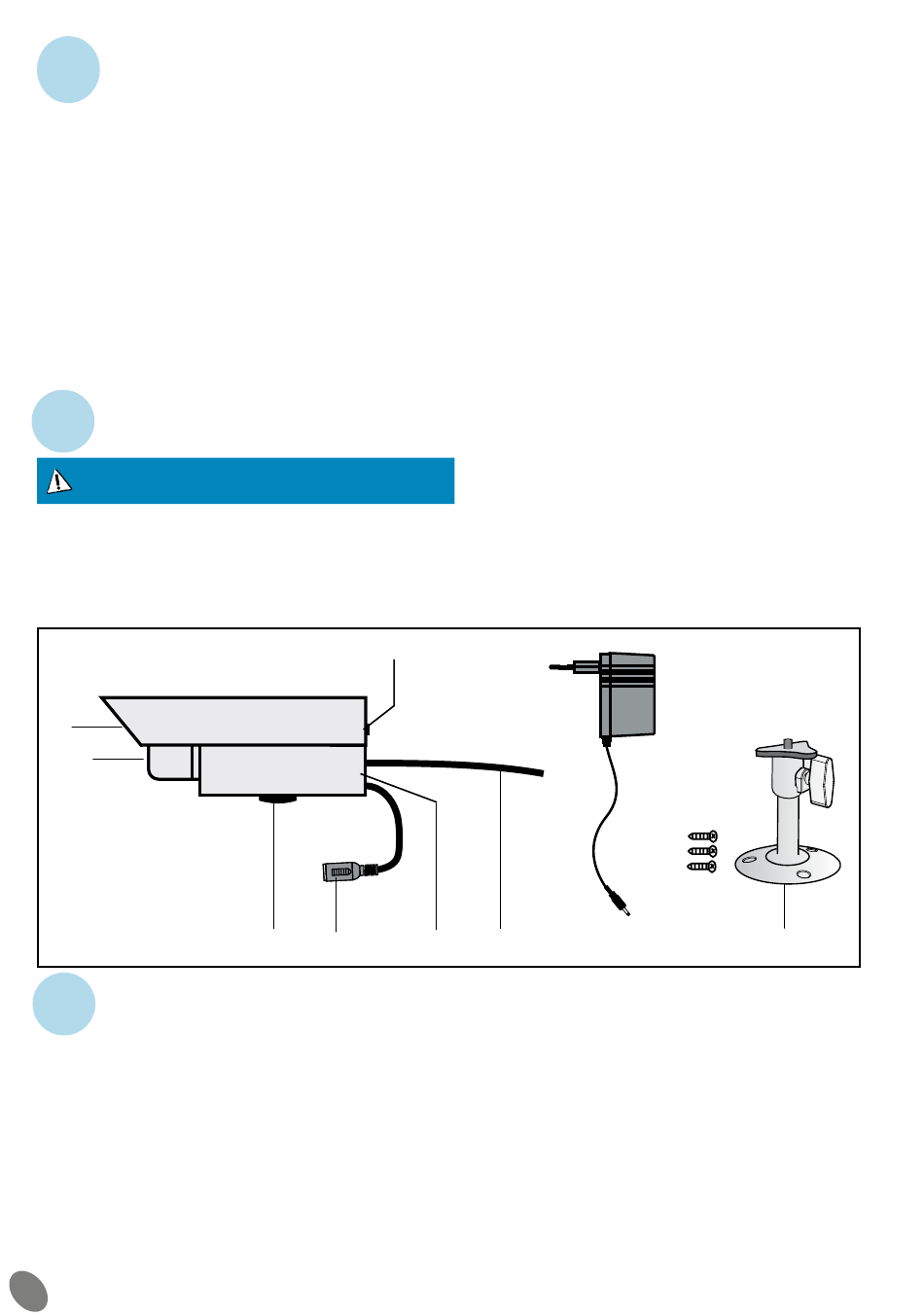

description
1. Protective cover of camera (IP 44)
2. Infrared diodes with darkness detector
3. Threaded hole for attaching the support
4. Connector for adapter
5. Microphone
1
2
5 inStALLAtion oF CAmErAS
Choose an appropriate spot for installing the cameras. if possible, the system should be installed
in a dry, dust-free, well-ventilated area with very little vibration that is equipped with a wall soc-
ket.
While installing the cameras, check that the monitor gets good reception before making the final
adjustments. For example, have someone hold the camera in the surveillance area while another
person moves the monitor to different areas in the house to check the reception.
if you encounter any interference or other problems, please refer to the maintenance chapter.
2gB
7
3
5
4
CFI-EXTEL - WESV 82212 - 05/2009 - V2
b. Cameras (SVCm 82212)
Power supply : 7.5 V DC
Consumption : 300 mA
Channels : 2
Frequency transmission : 2.4-2.4835 GHz Modulation : FM
Sensitivity to light : 8 lux* (* Provide additional lighting at night)
Image objective lens :
1/3'' CMOS colour / 628x586 pixels (PAL) or 656 x 492
(NTSC)
Infrared Led : 11 infrared diodes
Range : approximately 80m/260ft unobstructed view
Weight (without supports) : 138 g
Temperature range of use : approximately -10°C to + 50° C
Dimensions : 100x40x40 (mm)
Resolution: 628 x 586 pixels at 25 frames per second
Frames per second: 25
Viewing angle: 36°
6. Antenna
7. Channel selector
8. AC/DC adapter provided
9. Fixing support
6
8
9
