Technical Specifications - MIR Smart One Bedienungsanleitung

Symbol Description
The symbol is used in accordance with IEC EN 60601-1-2: 2007 in section 5.1.1 for
products including RF transmitters.

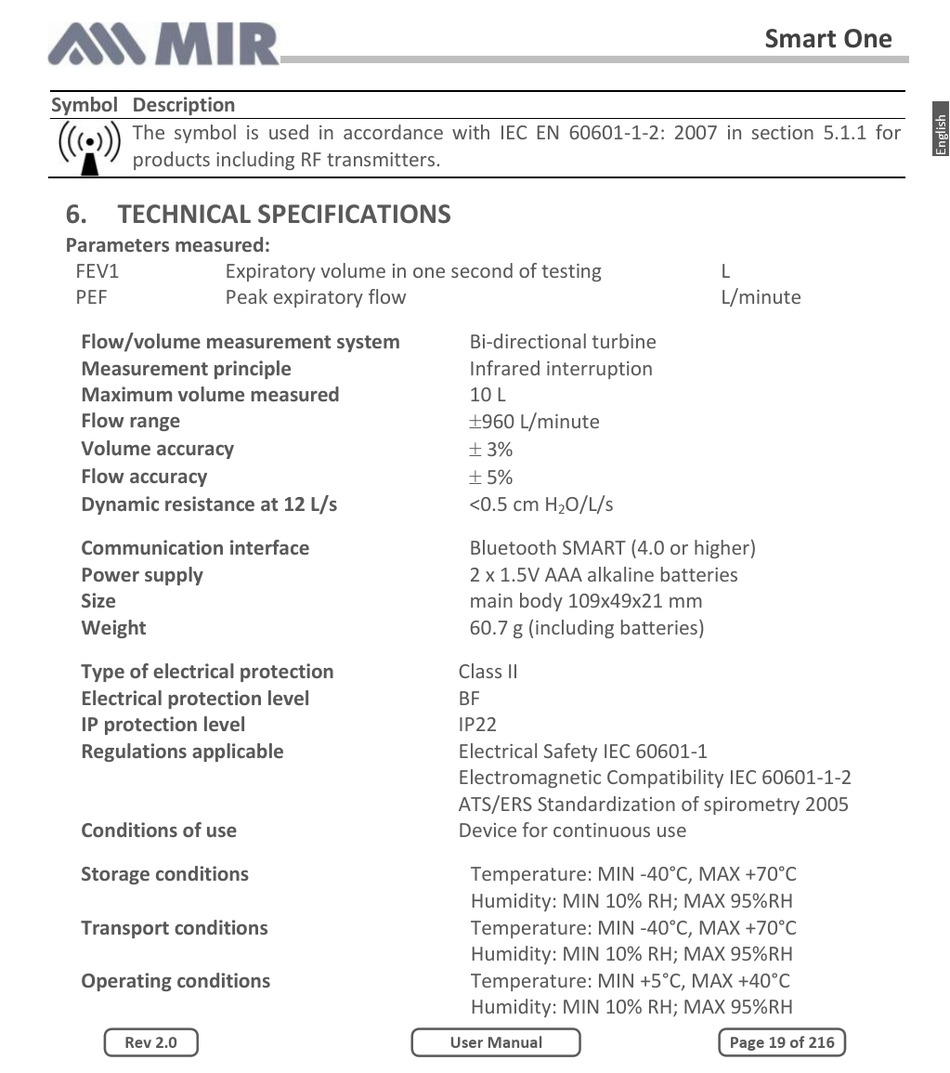

6. TECHNICAL SPECIFICATIONS

Parameters measured:
FEV1 Expiratory volume in one second of testing
PEF Peak expiratory flow
Flow/volume measurement system
Measurement principle
Maximum volume measured
Flow range
Volume accuracy
Flow accuracy
Dynamic resistance at 12 L/s
Communication interface
Power supply
Size
Weight
Type of electrical protection
Electrical protection level
IP protection level
Regulations applicable
Conditions of use
Storage conditions
Transport conditions
Operating conditions
Rev 2.0
Bi-directional turbine
Infrared interruption
10 L
960 L/minute
 3%
 5%
<0.5 cm H O/L/s
2
Bluetooth SMART (4.0 or higher)
2 x 1.5V AAA alkaline batteries
main body 109x49x21 mm
60.7 g (including batteries)
Class II
BF
IP22
Electrical Safety IEC 60601-1
Electromagnetic Compatibility IEC 60601-1-2
ATS/ERS Standardization of spirometry 2005
Device for continuous use
Temperature: MIN -40°C, MAX +70°C
Humidity: MIN 10% RH; MAX 95%RH
Temperature: MIN -40°C, MAX +70°C
Humidity: MIN 10% RH; MAX 95%RH
Temperature: MIN +5°C, MAX +40°C
Humidity: MIN 10% RH; MAX 95%RH
User Manual
Smart One
L
L/minute
Page 19 of 216
