7.3.2 B-510POL-I

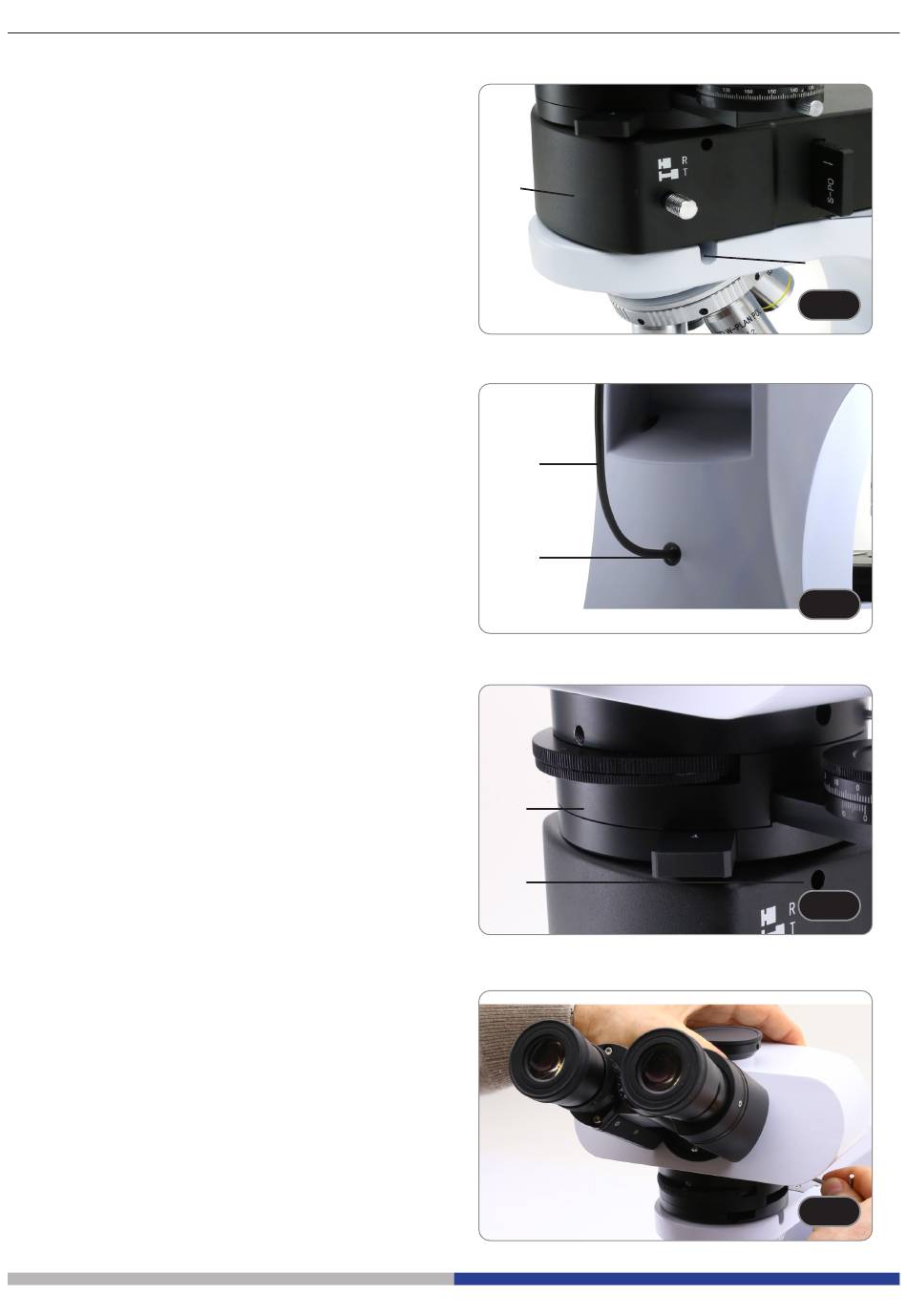

1. Insert the reflected light illuminator ① on the
frame and lock the locking screw ② with the
provided Allen wrench. (Fig. 8)
2. Connect the illuminator cable jack ③ to the socket
④ placed in the back side of the frame. (Fig. 9)
3. Insert the Bertrand lens ⑤ on the reflected light
illuminator and lock the locking screw ⑥ with the
provided Allen wrench. (Fig. 9 - 10).
4. Insert the optical head on the Bertrand lens and
lock the locking screw with the provided Allen
wrench. (Fig. 11)
• Hold the head with one hand during the
locking in order to avoid that the head falls.
①
③
④
⑤
⑥
Page 10
②
F ig. 8 F ig. 8
F ig. 9 F ig. 9
F F ig. 10 ig. 10
F ig. 11 F ig. 11
