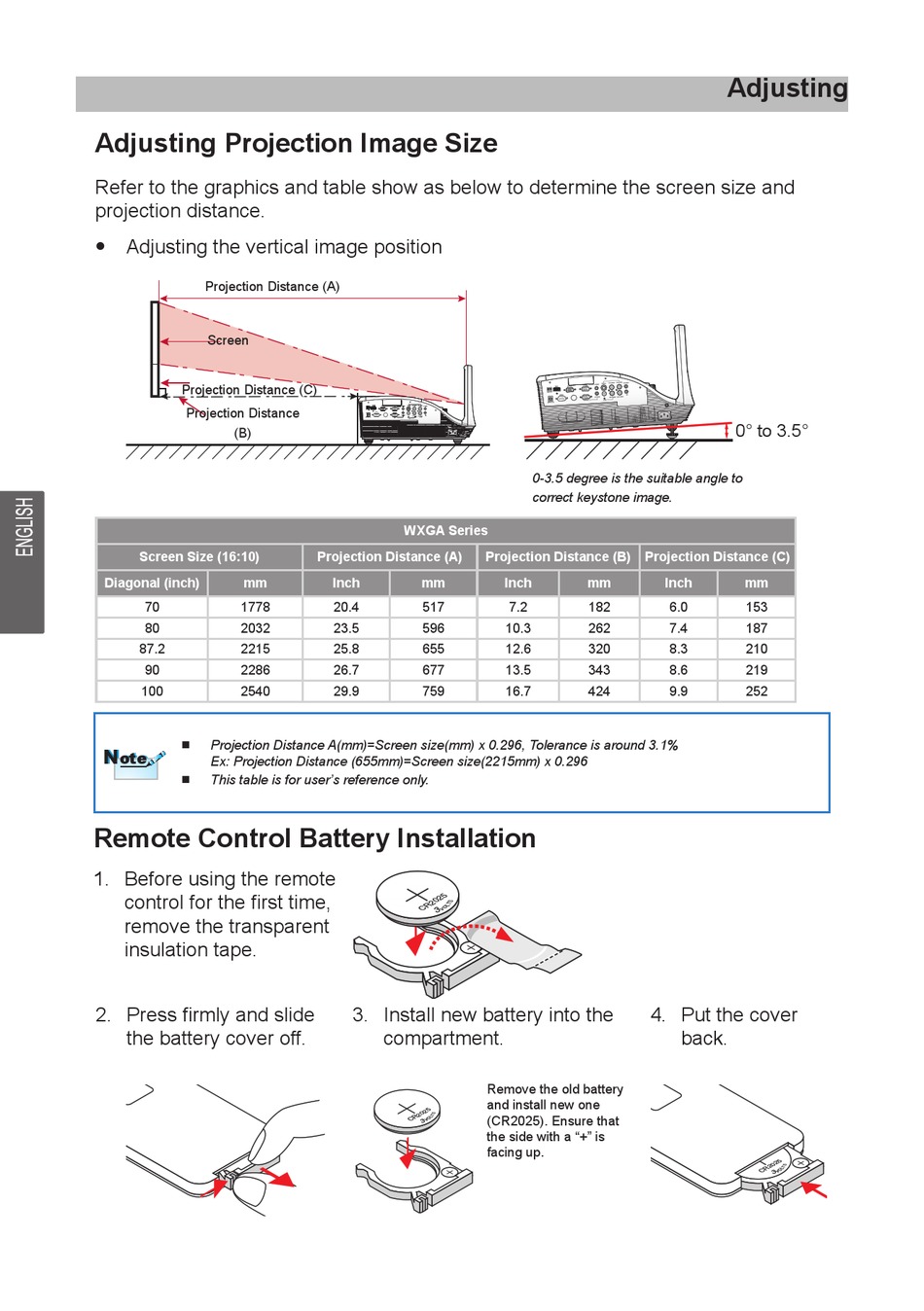

Adjusting Projection Image Size

Refer to the graphics and table show as below to determine the screen size and
projection distance.
Adjusting the vertical image position
y
Projection Distance (A)
Screen
Projection Distance (C)
Projection Distance
(B)
Screen Size (16:10)
Diagonal (inch) mm
70 1778
80 2032
87.2 2215
90 2286
100 2540
Projection Distance A(mm)=Screen size(mm) x 0.296, Tolerance is around 3.1%
N N
ote ote
Ex: Projection Distance (655mm)=Screen size(2215mm) x 0.296
This table is for user's reference only.

Remote Control Battery Installation

1. Before using the remote
control for the first time,
remove the transparent
insulation tape.
2. Press firmly and slide
the battery cover off.
WXGA Series
Projection Distance (A) Projection Distance (B)
Inch mm
20.4 517
23.5 596
25.8 655
26.7 677
29.9 759
3. Install new battery into the
compartment.
Remove the old battery
and install new one
(CR2025). Ensure that
the side with a "+" is
facing up.
0-3.5 degree is the suitable angle to
correct keystone image.
Projection Distance (C)
Inch mm Inch
7.2 182 6.0
10.3 262 7.4
12.6 320 8.3
13.5 343 8.6
16.7 424 9.9
4.
Adjusting
0° to 3.5°
mm
153
187
210
219
252
Put the cover
back.
