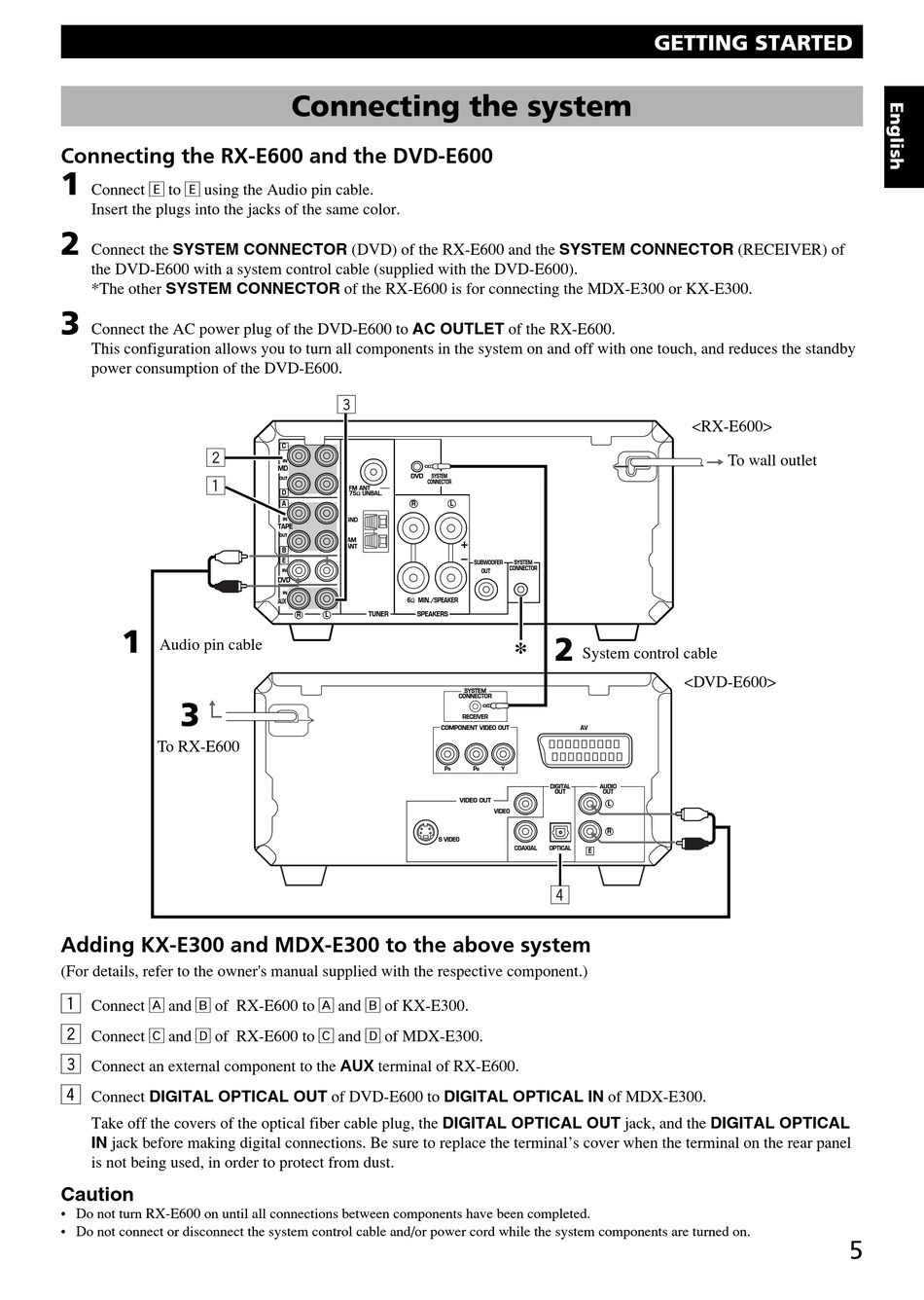

Connecting the RX-E600 and the DVD-E600
1
Connect ‰ to ‰ using the Audio pin cable.
Insert the plugs into the jacks of the same color.
2
Connect the SYSTEM CONNECTOR (DVD) of the RX-E600 and the SYSTEM CONNECTOR (RECEIVER) of
the DVD-E600 with a system control cable (supplied with the DVD-E600).
*The other SYSTEM CONNECTOR of the RX-E600 is for connecting the MDX-E300 or KX-E300.
3
Connect the AC power plug of the DVD-E600 to AC OUTLET of the RX-E600.
This configuration allows you to turn all components in the system on and off with one touch, and reduces the standby
power consumption of the DVD-E600.
1
Audio pin cable
3
To RX-E600
Adding KX-E300 and MDX-E300 to the above system
(For details, refer to the owner's manual supplied with the respective component.)
1
Connect Å and ı of RX-E600 to Å and ı of KX-E300.
2
Connect Ç and Î of RX-E600 to Ç and Î of MDX-E300.
3
Connect an external component to the AUX terminal of RX-E600.
4
Connect DIGITAL OPTICAL OUT of DVD-E600 to DIGITAL OPTICAL IN of MDX-E300.
Take off the covers of the optical fiber cable plug, the DIGITAL OPTICAL OUT jack, and the DIGITAL OPTICAL
IN jack before making digital connections. Be sure to replace the terminal's cover when the terminal on the rear panel
is not being used, in order to protect from dust.
Caution
• Do not turn RX-E600 on until all connections between components have been completed.
• Do not connect or disconnect the system control cable and/or power cord while the system components are turned on.

Connecting the system

C
IN
MD
DVD
SYSTEM
OUT
CONNECTOR
FM ANT
D
75Ω UNBAL.
A
R L
IN GND
TAPE
OUT
AM
ANT
B
E
IN
DVD
IN
6Ω MIN./SPEAKER
AUX
TUNER SPEAKERS
R L
COMPONENT VIDEO OUT
P
R
S VIDEO
+
–
SUBWOOFER SYSTEM
CONNECTOR
OUT
2
*
System control cable
SYSTEM
CONNECTOR
RECEIVER
AV
P Y
B
DIGITAL AUDIO
OUT OUT
VIDEO OUT
L
VIDEO
R
COAXIAL OPTICAL
E
GETTING STARTED
<RX-E600>
To wall outlet
<DVD-E600>
