Water Terminal Controller
Room Control Interface
This manual describes how to use WTC Room
Control Interfaces.
Depending on the type of the user interface,
some of the functions described in this manual
may not be active.
If you have any questions, please contact your
installer for more information.
Occupancy
To optimise energy efficiency of the
building while preserving its occupants
comfort, the controller is scheduled
according to occupancy hours.
You can set the room
occupancy manually if the
scheduled program does
not match the current
occupancy status of the
Occupancy button
room.
To set room occupancy
Press the Occupancy button to change
■
the occupancy status of the room.
Occupied room (light ON)
Unoccupied room (light OFF)

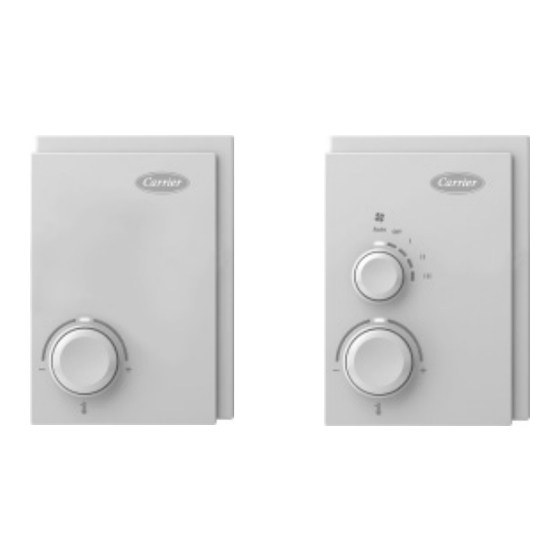

WTC-RCI-S WTC-RCI-SF
Comfort Temperature
To achieve better
comfort, it is possible
to control the comfort
temperature by
adjusting the
temperature
Temperature control knob
control knob.
To set the comfort temperature
Turn the control knob to the right
■
to increase the temperature.
Turn the control knob to the left to
■
decrease the temperature.
Note: Comfort temperature can be
adjusted only when the status of
the room is occupied.
WTC-RCI-SOF
Fan Speed
Auto Fan speed is
adjusted
automatically in
order to provide
optimum comfort
Off
Fan Off
Fan control knob
I
Low speed
II
Medium speed
III
High speed
To set the fan speed
Turn the control knob to set the
■
required fan speed.
Note: Fan speed can be adjusted
only when the status of the room is
occupied.
Scan this QR code
to access Carrier
technical literature.
