Danfoss MCI 15BP Instruktionen

Instructions

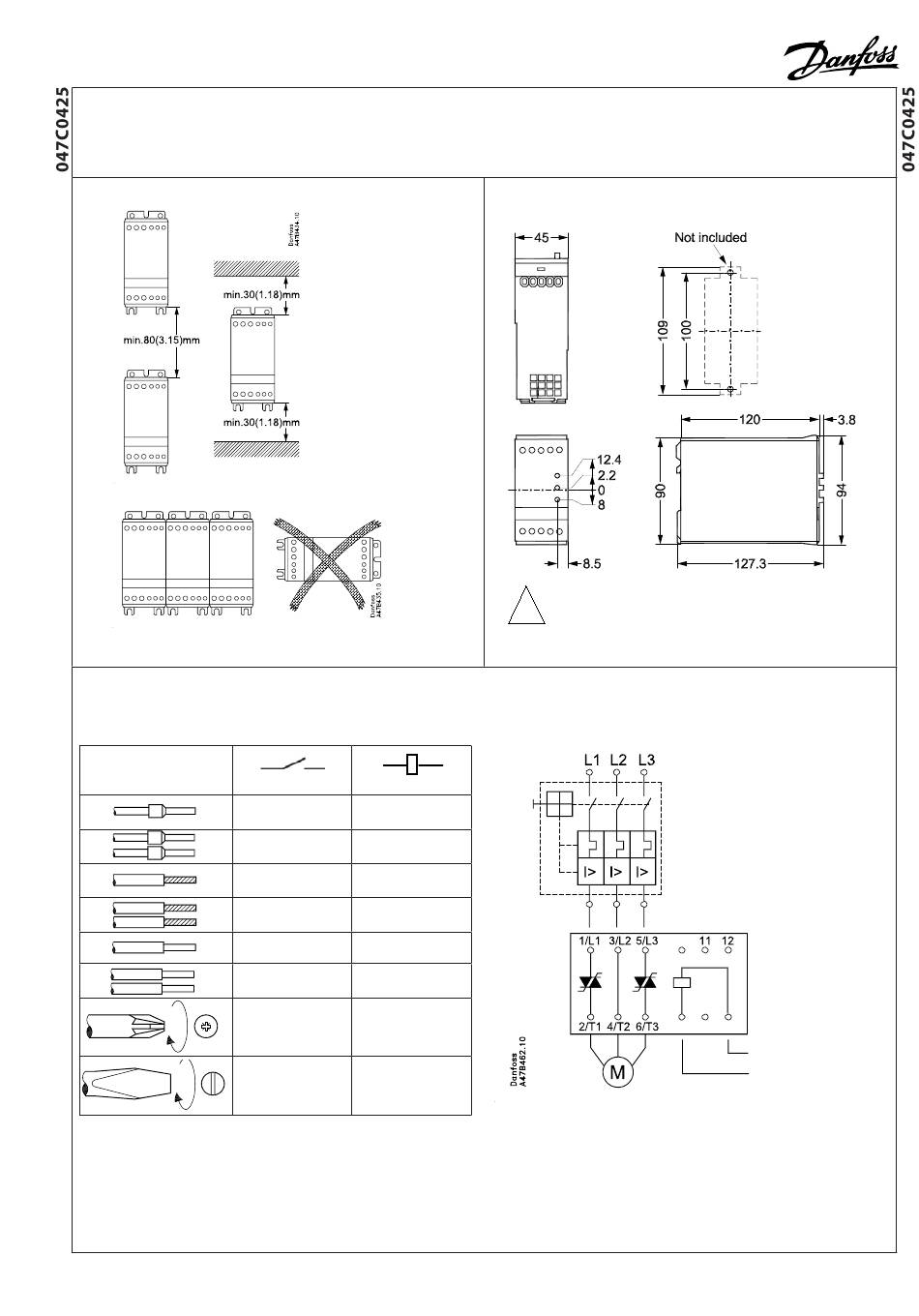

Montering - Mounting - Montage
Forbindelse - Wiring - Verdrahtung
75°C
Kabel/ Wire
- Vigtigt: (Overhold max. skruedrejningsmomenter)
- Important: (Observe the maximum screw torque limits)
- Wichtig: (Max. Drehmoment beachten)
©Danfoss A/S 05-2009 (RA-MC/mr)
Soft Start Motor Controller
mm 2 (AWG) mm 2 (AWG)
0.75 - 4 0.5 - 1.5
(18 - 12) (20 - 16)
2 x 1 2 x 0.5 - 0.75
(2 x 18) (2 x 20 - 18)
0.75 - 6 0.5 - 1.5
(18 - 10) (20 - 16)
2 x 0.75 - 2.5 2 x 0.5 - 1.5
(2 x 18 - 14) (2 x 20 - 16)
0.75 - 6 0.5 - 1.5
(18 - 10) (20 - 16)
2 x 0.75 - 1.5 2 x 0.5 - 1.5
(2 x 18 - 16) (2 x 20 - 16)
Pozidrive 1
N.A.
0.5 Nm max.
4.4 lb-in max.
4 mm 3 mm
0.5 Nm max. 0.4 Nm max.
4.4 lb-in max. 3.5 lb-in max.
MCI 15BP
Mål - Dimensions - Abmessungen
DK Luftstrøm må ikke blokeres
!
UK Airfl ow should not be blocked
D Luftstrom muß ungehindert fl ießen
Do not connect power factor correction capacitors to the output.
P.S.: This product has been designed for class A equipment. Use of the
product in domestic environment may cause radio interference, in
which case the user may be required to employ additional mitigation
methods.
A2
A1
Control voltage
24 - 230 V AC/DC (208 V AC)
24 - 400 V AC/DC (400 V AC)
24 - 480 V AC/DC (480 V AC)
IC.PI.C50.H3.52 - 520B3593
