Electrical connections

R-S-T 230/400V A.C. power supply; three phase (ZT5)
230V/400V 50÷60 H three-phase motor, Maxi-
U-V-W
mum power: 780W
230V A.C. 25W max. (in motion) output for
E-E1
flashing lamp
Serial communication for PC(PC40 o PC30) con-
A-B-GND
nection, use mod. RS235 shielded bipolar cable
with software (optional)
Connection for encoder (for connection between
+ E -
automation and electrical panel, use shielded
2402C 22AWG cable)
The data and information provided in this manual are to be considered susceptible to change at any time without warning, by CAME cancelli automatici s.p.a.

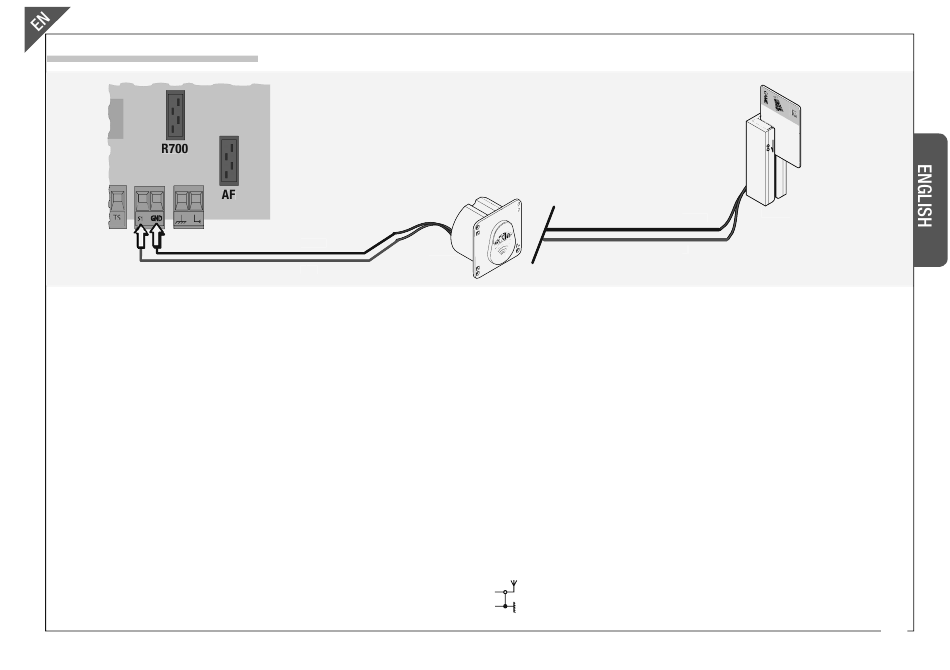

S1-GND Connection of sensors TSP00 (transponder)
LT001 (swipe)
N.B. for the sensors to recognize the card, connect
them with the special decoder card (R700).
Black Black
TSP00 TSP00
Red Red
M E M E
C A C A
230V max. 60W courtesy or cycle light (select from
E-EX
software)
STOP Button N.C.
1-2
Partial opening N.O. button
2-3P
Total opening N.O. button
2-3
Closure N.O. button
2-4
Open-close contact (Step step)
2-7
or Open-stop-close-stop (Sequential) N.O.
Open pilot light 24V 3W
10-5
Output 24V A.C power supply accessories, max 20 W
10-11
Antenna connection
LT001 LT001
Black Black
Red Red
7
