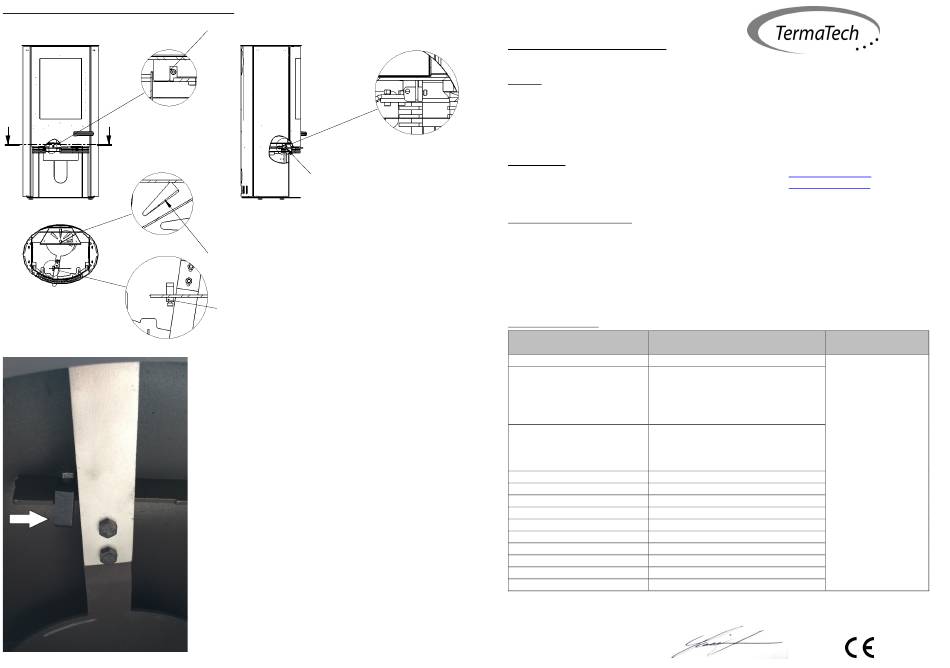

Damper control unit for smoke control areas
A A
DETAIL B
SCALE 1 : 2
SECTION A-A
DETAIL D
SCALE 1 : 2
36
Bracket and screw
Bracket and screw
DETAIL E
SCALE 1 : 2
OPEN
The Bracket make the secondary air open with ca. 40%
If you change the direction of the bracket the
secondary air will be open with ca. 30%.
Bracket and screw
Material: Scale: Tegningsnr. / emnenavn:
40102 TT20 Stove assy - smoke - GB
1:10
Title:
TT20 Stove assy - smoke -GB
Model:
Jegstrupvej 60
DK 8361 Hasselager TT20
PROPRIETARY AND CONFIDENTIAL. The information contained in this drawing is the sole property of TermaTech AS.
Any reproduction in part or as a whole without the written permission of TermaTech AS i prohibited.

Declaration of Performance

TT20-CPR-2011-Version 2
Product:
Product type/application:
Type:
Fuel:
Productions no.
Manufacturer:
DETAIL C
SCALE 1 : 2
Certification and requirements:
AVCP system:
European standard:
Certification:
Declared performance:
Essential characteristics
Revision Rev.
Reaction to fire
25. april 2014 ..
Created date
Distance to combustible materials Rear:
25. april 2014
Initialer: Stk. pr. ovn:
-
EMN
Denne tegning er vor ejendom, den må ikke kopieres på nogen måde
og ikke gøres tilgængelig for trediemand uden vor skriftelige tilladelse
Emission of combustion products
Electrical safety
Maximum operating pressure
Risk of burning fuel falling out
Surface temperature
Clean ability
Mechanical strength
Emission of hazardous materials
Flue gas temperature
Output
Energy efficiency
The undersigned is responsible for the manufacturing and conformity with the declared performance.
Viby 1.03.2011
Room heater burning solid fuel without hot water supply
TT20: S01-600/601, TT20R: S01-602/603, TT20SA: S01-626,
TT20S: S01-618/619, TT20RS: S01-620/621, TT20BAZIC / R: S01-606/608
Wood
Please see nameplate on the back of the oven
TermaTech A/S E-mail: info@termatech.com
Gunnar Clausens Vej 36 Web: www.termatech.com
8260 Viby J Tel.: +45 8742 0035
Denmark
System 3
Rhein-Ruhr Feuerstätten Prüfstelle GmbH, notified body no. 1625, has
performed determination of the product type and declared performance on
the basis of type testing and issued test report no. 40 11 2613. Technologic
Institute, notified body no. 1235, has performed determination of the
type and declared performance on the basis of type testing and issued test
report no. 300-ELAB-1520-SIK-Rev-1.
Performance
AI
min. 150 / 100mm
Sides: min. 350 mm
To the corner 45⁰ min. 125mm / 100mm
Other safety distances – please see User
and mounting manual
CO = 0,08 %
NOx = 125 mg/m³
OGC = 107 mgC/Nmᶟ
PM = 24 mg/m³
NPD
NPD
Passed
Passed
Passed
Passed
Passed
273° Celsius
5,0 KW
83,4 %
Søren Toft______________________________
product
Harmonised technical
specification
CE/DS/DIN/EN
13240:2001+
A2:2004/AC2007
