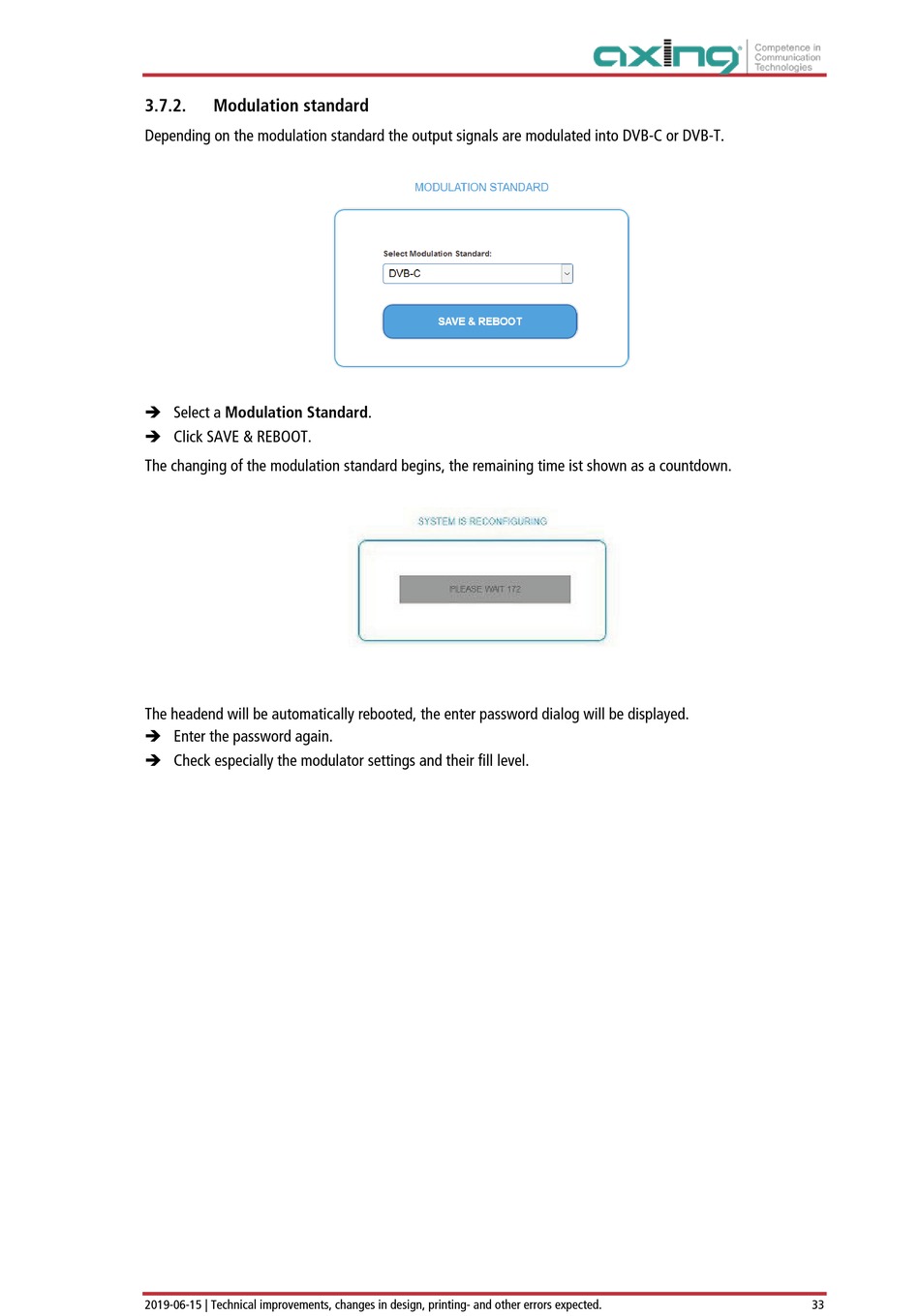

3.7.2.

Modulation standard

Depending on the modulation standard the output signals are modulated into DVB-C or DVB-T.
 Select a Modulation Standard.
 Click SAVE & REBOOT.
The changing of the modulation standard begins, the remaining time ist shown as a countdown.
The headend will be automatically rebooted, the enter password dialog will be displayed.
 Enter the password again.
 Check especially the modulator settings and their fill level.
2019-06-15 | Technical improvements, changes in design, printing- and other errors expected. 33
