8. Connection and Configuration Settings.
8.1. Field Wiring.
The zone wiring is accessed through the back plate of the Detector Head (See Fig 4). The small 2-pin
connector on the left is not used.
8.2. DIP Switch Settings.
Access to the configuration settings is through the back plate of the Detector Head (See Fig 4).
Dip switch 1 on the four pole dip switch is used for alarm auto reset, OFF = latched alarm and ON = auto reset.
Dip switch 2 on the four pole dip switch is used to select panel type, OFF = JSB panel and ON = Menvier panel.
Dip switch 3 and 4 are used to set the alarm threshold.

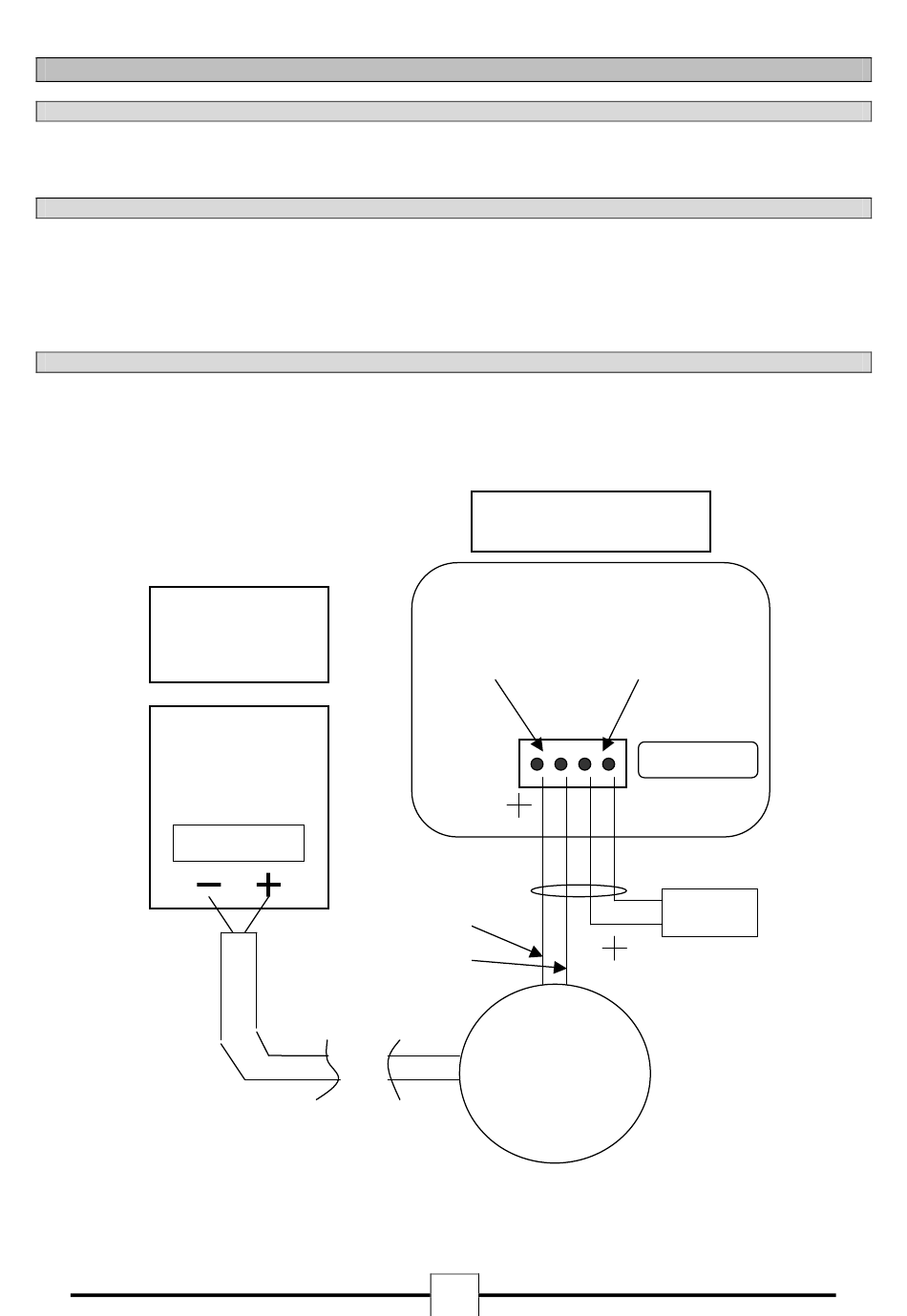

8.3. Typical Single Zone Wiring.
For operation with a JSB panel wire the detector as shown below and connect an EOLM-1 active end of line
module as shown below.
When used with a Menvier panel connect the detector as shown below but DO NOT install the end of line
component.
Conventional
Fire Panel
Connections
Zone wiring
22318.31.01 21.04.06
Cooper Lighting
MBD50R & MBD100R
Zone IN
Zone +ve
Zone -ve
Junction box,
E.O.L can be
fitted here if last
device.
8
Zone OUT
Fit EOL if
JSB Panel
