8. Configuration via display and operating unit

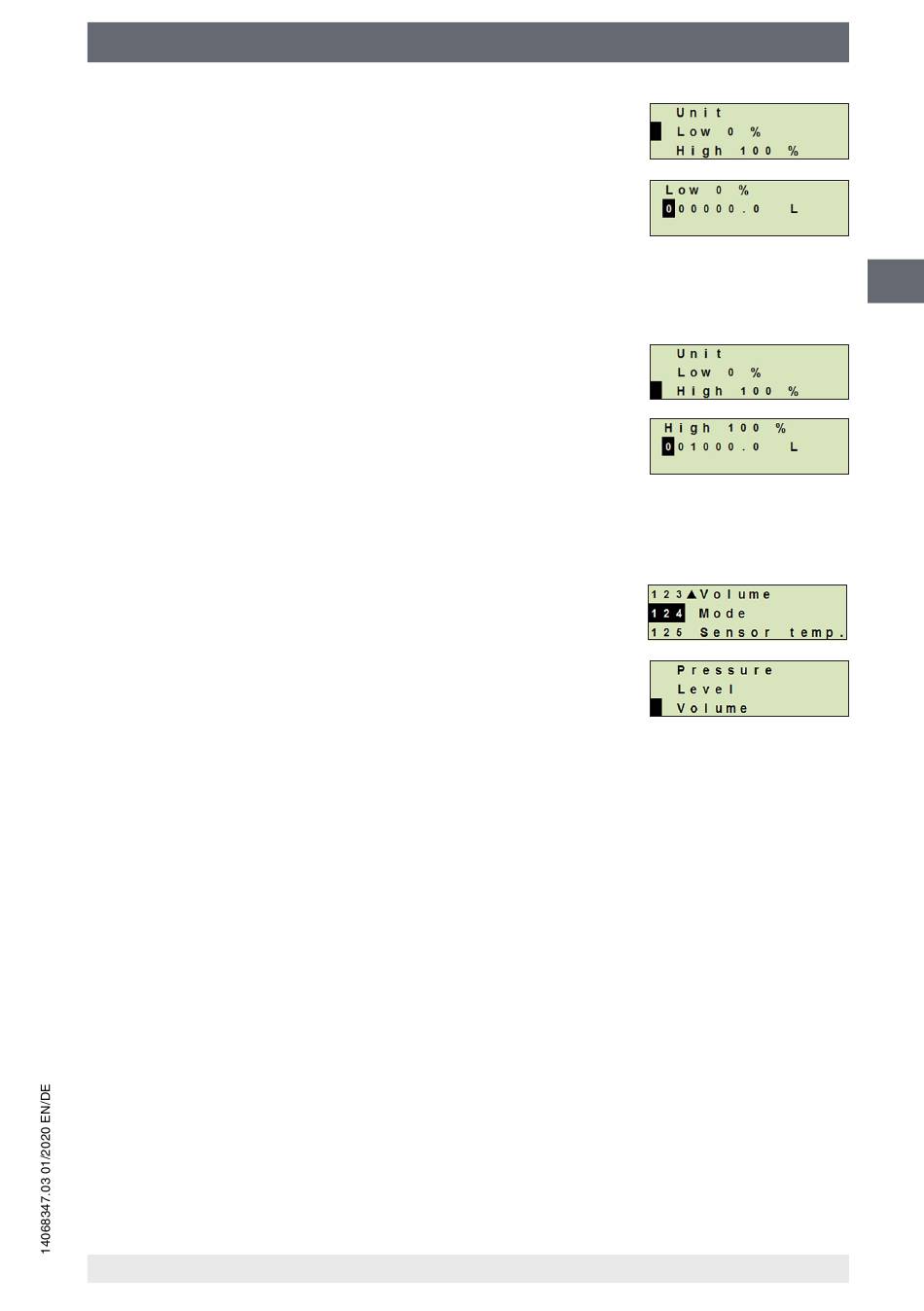

24. Go back one menu levels using [ESC].
Select "Low 0 %" and confirm with [↵].
25. Setting the initial value of the volume measurement with
respect to 0 % of the filling height (e.g. 0 % filling height
corresponds to 3 litres).
» The cursor moves to the next digit.
» Repeat for each digit.
» Initial value of volume measurement is set.
26. Select "High 100 %" and confirm with [↵].
27. Setting the end value of the volume measurement with
respect to 100 % of the filling height (e.g. 100 % filling height
corresponds to 1,000 litres).
» The cursor moves to the next digit.
» Repeat for each digit.
» Initial value of volume measurement is set.
28 Go back two menu levels using [ESC].
Select "Mode" and confirm with [↵].
29. Go back one menu level using [ESC].
Select "Volume" and confirm with [↵].
» Mode is set to volume.
30. Perform a mounting correction.
→ see chapter 8.5 "Mounting correction (offset)".
» Volume measurement is configured.
