AXIS Q1615 Mk II Network Camera

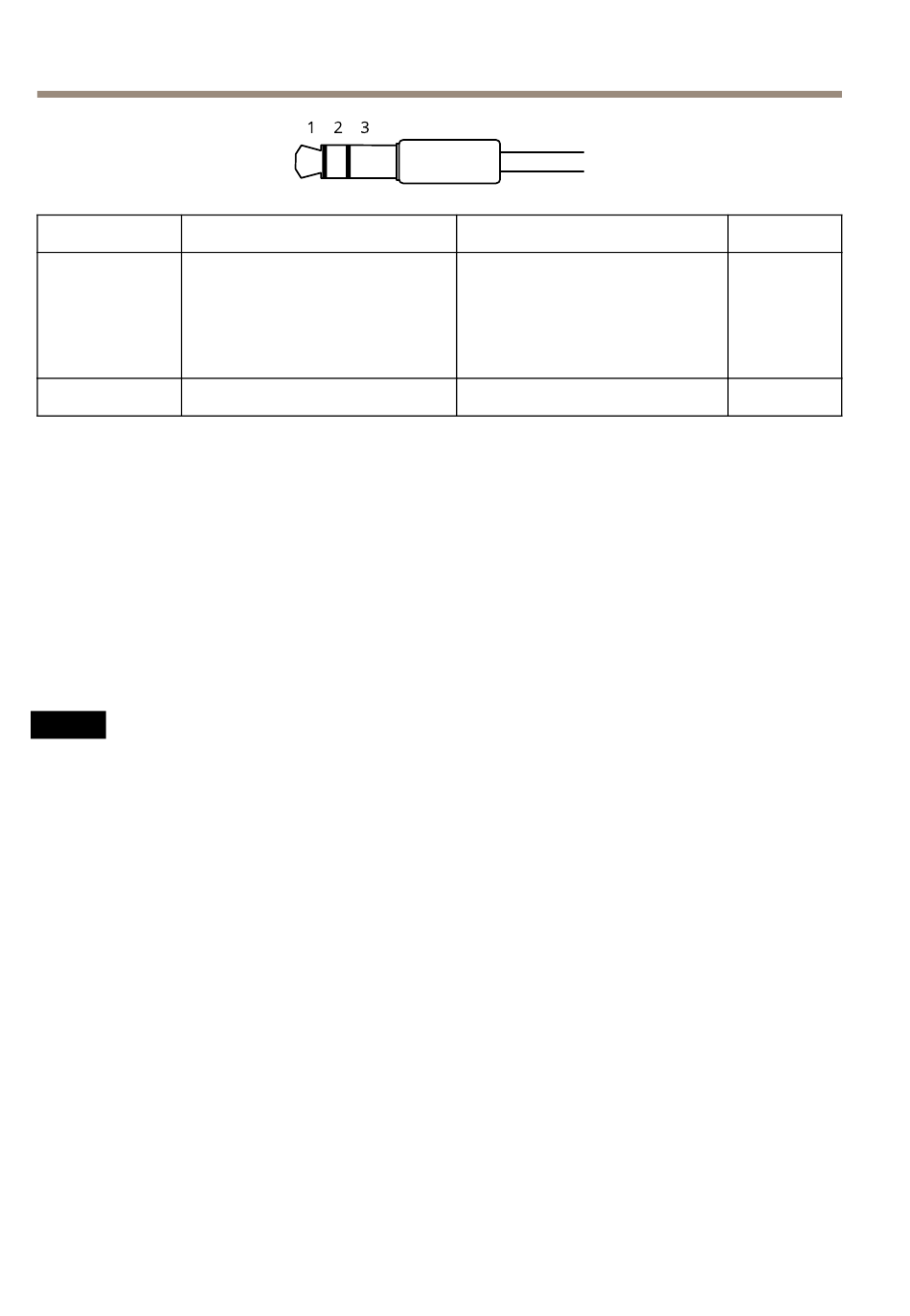

1 Tip
Audio Input Balanced: 'Hot' signal
Microphone/Line in
Unbalanced: Microphone/Line
in
Audio Output Line out, mono
The internal microphone is used by default; the external microphone is used when connected. You
can disable the internal microphone by connecting a plug to the microphone input.
RS485/RS422 connector
Two 2-pin terminal blocks for RS485/RS422 serial interface used to control auxiliary equipment
such as pan-tilt devices.
SD card slot
NO TICE TICE
NO NO TICE
• Risk of damage to SD card. Do not use sharp tools, metal objects, or excessive force when
inserting or removing the SD card. Use your fingers to insert and remove the card.
• Risk of data loss and corrupted recordings. Do not remove the SD card while the product
is running. Unmount the SD card from the product's webpage before removal.
This product supports microSD/microSDHC/microSDXC cards.
For SD card recommendations, see axis.com.
Control button
For location of the control button, see Product overview on page 10.
The control button is used for:
• Resetting the product to factory default settings. See page 21.
• Connecting to an AXIS Video Hosting System service. To find out more about this
service, see axis.com
2 Ring
Balanced: 'Cold' signal
Microphone/Line in
Unbalanced: Unused
Line out, mono
14
3 Sleeve
Ground
Ground
