Due to local regulations or the environmental and electrical conditions in which the product
is to be used, a shielded network cable (STP) may be appropriate or required. All cables
connecting the product to the network and that are routed outdoors or in demanding
electrical environments shall be intended for their specific use. Make sure that the network
devices are installed in accordance with the manufacturer's instructions. For information
about regulatory requirements, see Electromagnetic compatibility (EMC) on page 4.
I/O connector
Use the I/O connector with external devices in combination with, for example, motion detection,
event triggering, and alarm notifications. In addition to the 0 V DC reference point and power (DC
output), the I/O connector provides the interface to:
Digital input - For connecting devices that can toggle between an open and closed circuit, for
example PIR sensors, door/window contacts, and glass break detectors.
Digital output - For connecting external devices such as relays and LEDs. Connected devices can
be activated by the VAPIX® Application Programming Interface or from the product's webpage.
Power connector

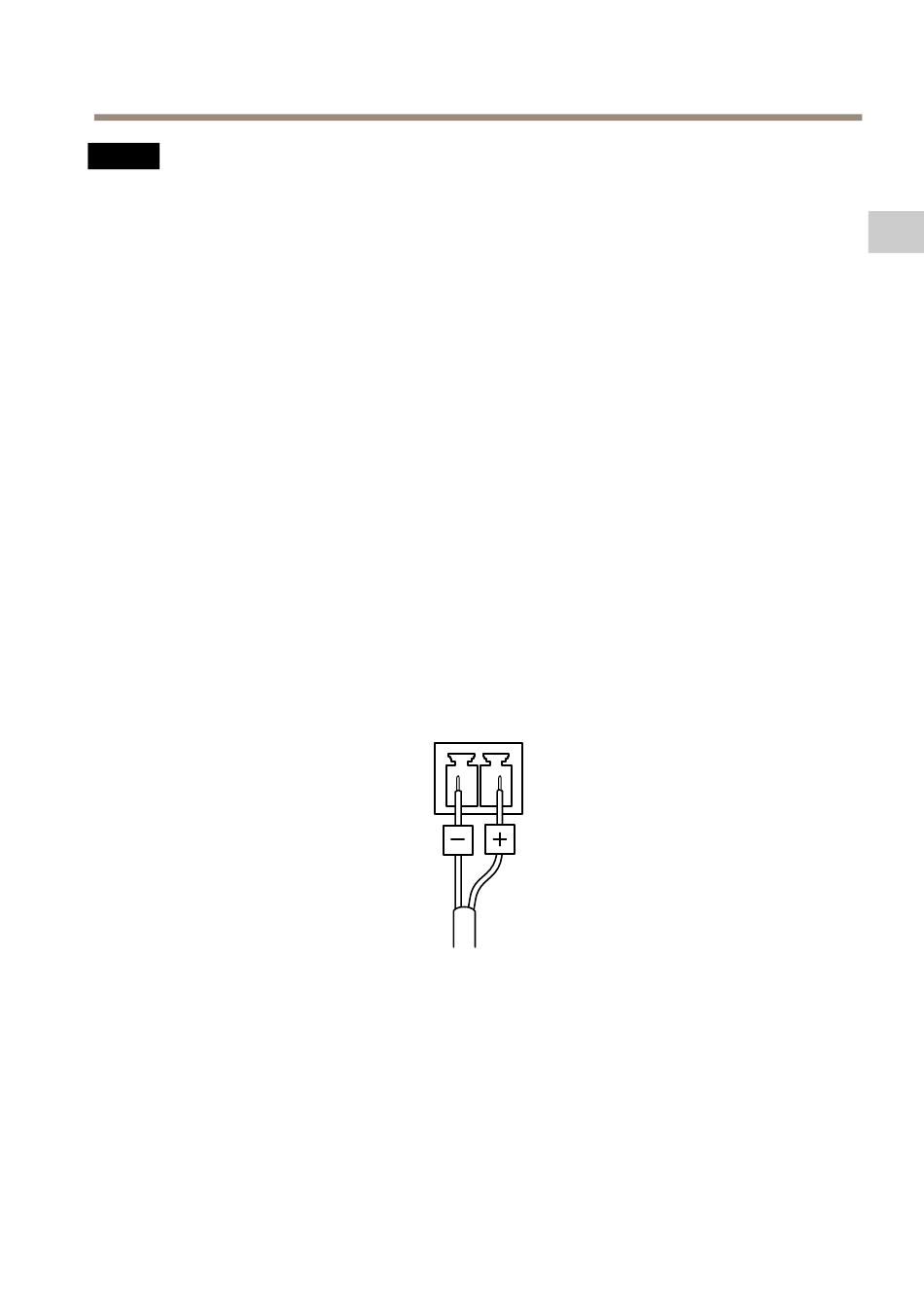

2-pin terminal block for DC power input. Use a Safety Extra Low Voltage (SELV) compliant limited
power source (LPS) with either a rated output power limited to ≤100 W or a rated output current
limited to ≤5 A.
Audio connector
• Audio in – 3.5 mm input for a mono microphone, or a line-in mono signal (left channel
is used from a stereo signal).
• Audio out – 3.5 mm output for audio (line level) that can be connected to a public
address (PA) system or an active speaker with a built-in amplifier. A stereo connector
must be used for audio out.
