Settings; Functions - Optex Smart Line serie Installationshinweise

4

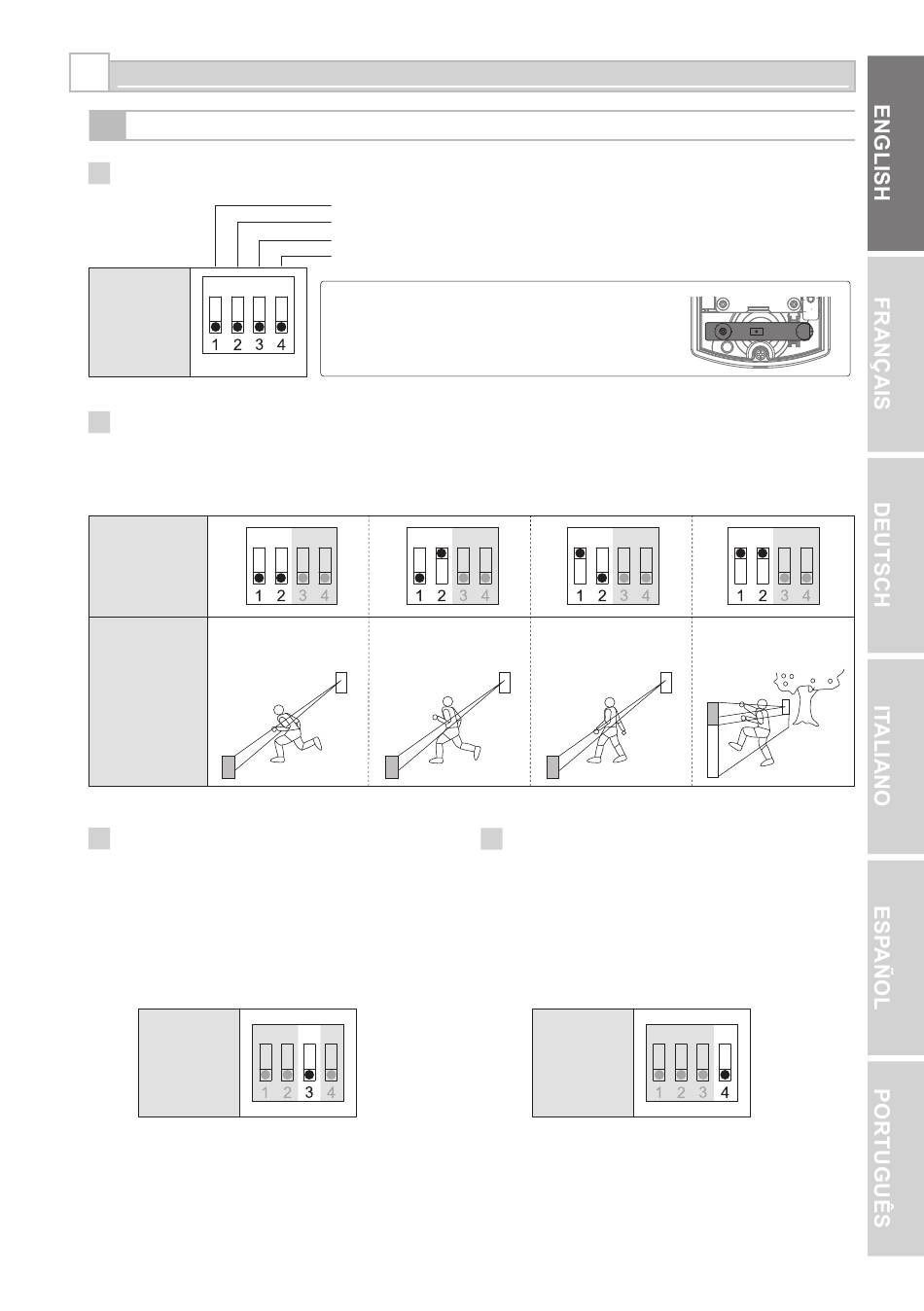

SETTINGS

4-1

FUNCTIONS

DIP SWITCH
1
Receiver
ON
SELECTOR
POSITION
(factory default)
BEAM INTERRUPTION ADJUSTMENT
2
Initial setting is at 50 ms for normal work. According to the speed of a supposed target you select one specific
setting out of 4 steps.
Set the beam interruption adjustment switches of the Receiver according to the speed of the human object to
detect.
ON
SELECTOR
POSITION
(50 msec.)
Typical
interruption
time setting
BATTERY SAVING TIMER
3
The battery saving timer enforces 2 min intervals
between alarm outputs. If the site of security involves a
lot of traffic or in/out of people over a detection zone,
wireless transmitters may wear out batteries quickly.
The battery saving timer cancels alarms for two minutes
after the initial output, preserving powers of wireless
transmitters.
Receiver
SELECTOR
POSITION
ON = Alarm output : 1 output/ 2 minutes
Refer to "1-3 PARTS IDENTIFICATION".
Beam interruption adjustment switch 1
Beam interruption adjustment switch 2
Battery saving timer switch
Intermittent output function switch
Note>>
• Do not press the tamper when you set the DIP
switches. Otherwise the settings will not actually be
changed.
ON
Running Jogging
(100 msec.)
ON
ON
Walking
(250 msec.)
INTERMITTENT OUTPUT FUNCTION
4
Intermittent output function enforces outputs to reset
while beams continues to be interrupted.
This function is effective if your wireless transmitters do
not have supervised features to monitor relay status.
Intermittent output function repeats alarms with intervals
to let the system be aware of interrupted status.
Receiver
SELECTOR
POSITION
ON = Alarm output : 1 output/ 1 minute
EN-11
ON
Slow movement
(500 msec.)
ON
