Dimensional Drawing - Sanus Systems VMUC1 Montageanleitung

Step 1: Remove Cover

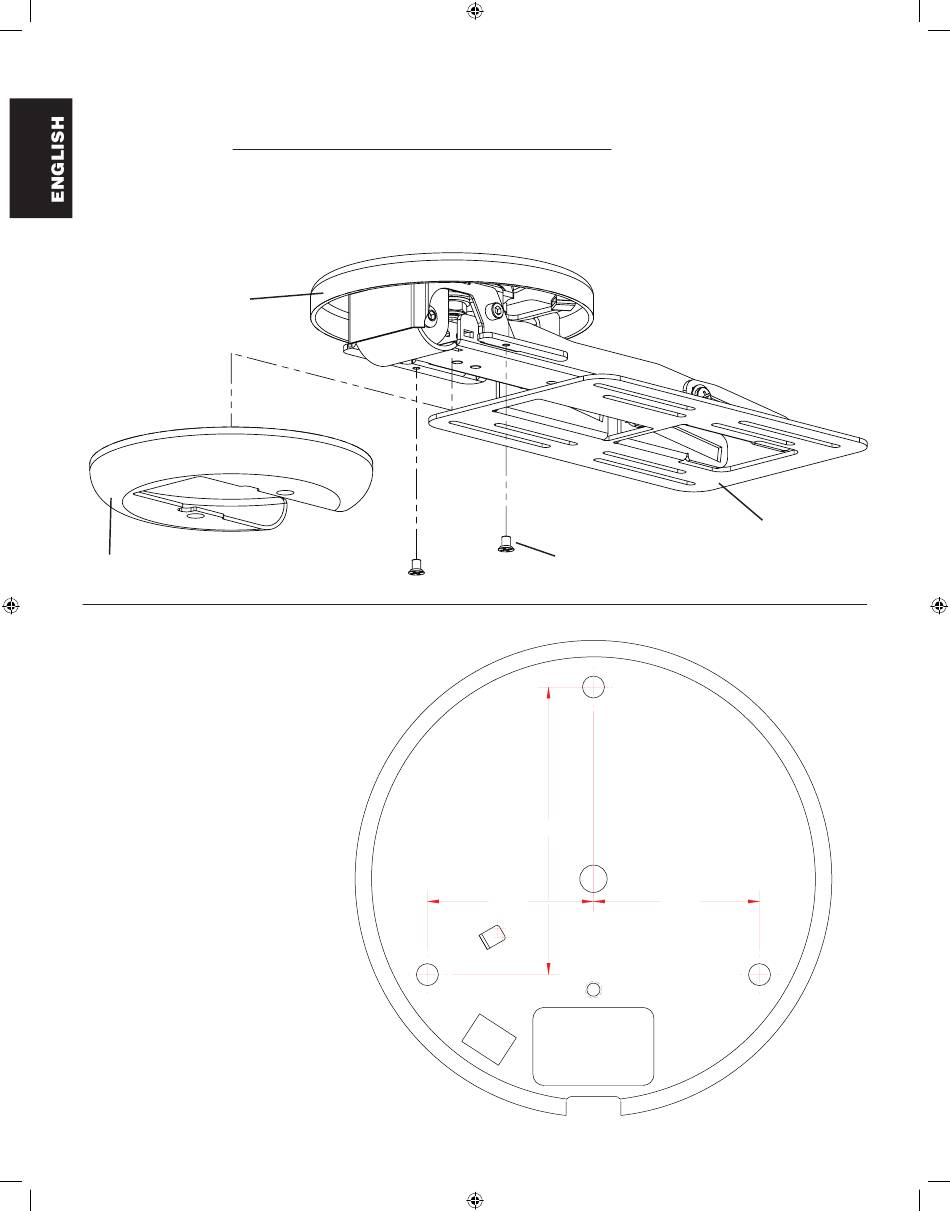

Using a Phillips screw driver loosen the two flat head bolts from the cover and slide it down and away from the mounting plate. See
Diagram 1 for assistance. You will re-install the cover once cable management is complete.
Diagram 1
a
mounting plate
cover flat head bolts

Dimensional Drawing

Step 2: Prepare Mounting Surface
Use the base of the Mount Assembly
(a) as a template to mark three holes
in the cabinet in the desired location.
Drill three 1/4 inch holes at the marked
locations.
See the dimensional drawing on the
right for assistance.
3.28
1.89 1.89
