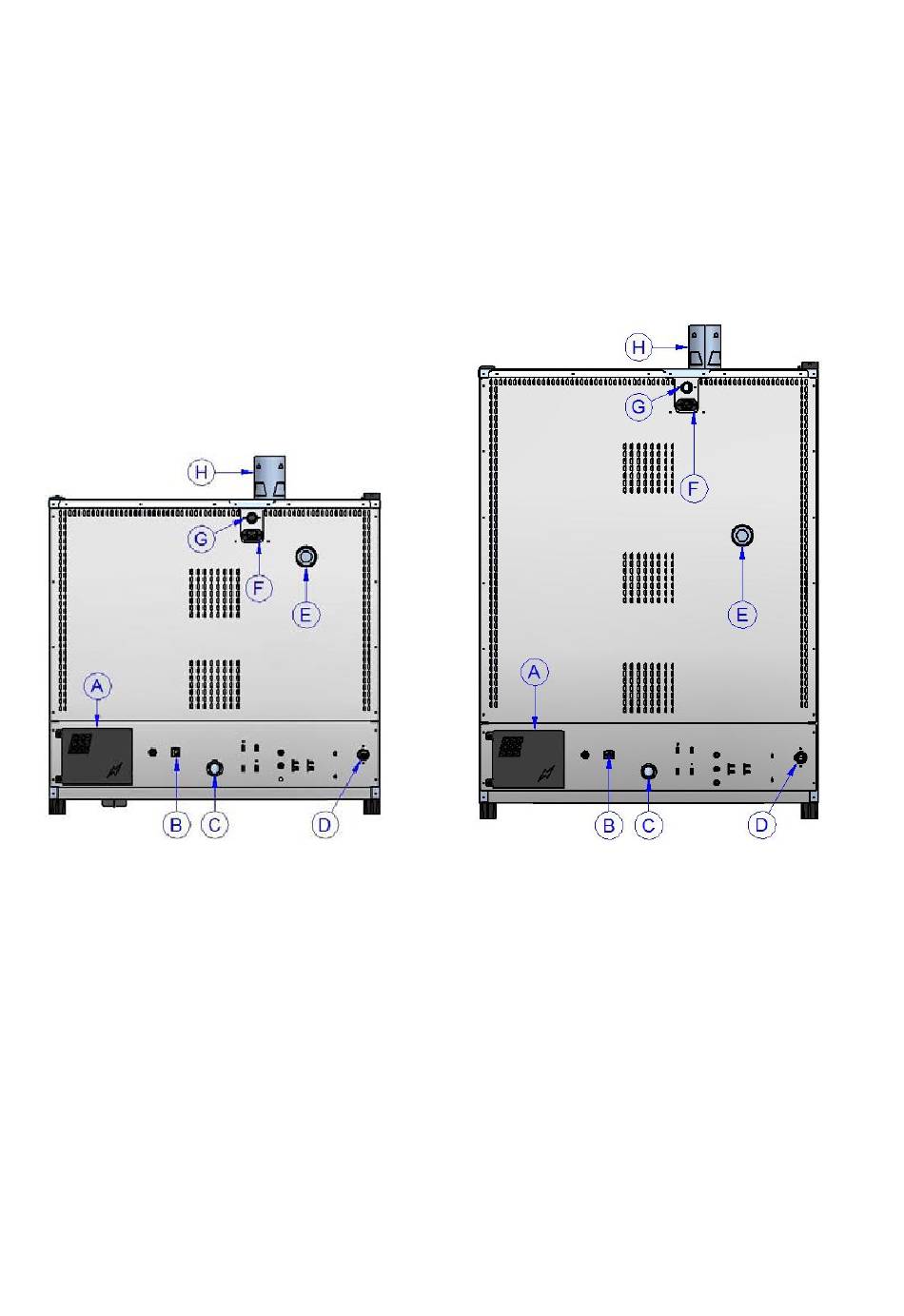

CONNECTIONS ARRANGEMENT

Easy Oven Back 6 Easy Oven Back 10
A = Terminal board power supply access
B = Equipotential terminal
C = Cooking chamber liquid discharge (Ø 30mm)
D = cooking chamber steam generator water inlet (¾ "male)
E = Cooking chamber vapors discharge (Ø 50mm)
F = Hood power supply
G = Gas supply inlet (¾ "tapered male)
(Supplied with the gas models)
H = Chamber fumes discharge (Ø 80mm)
(Supplied with the gas models)
