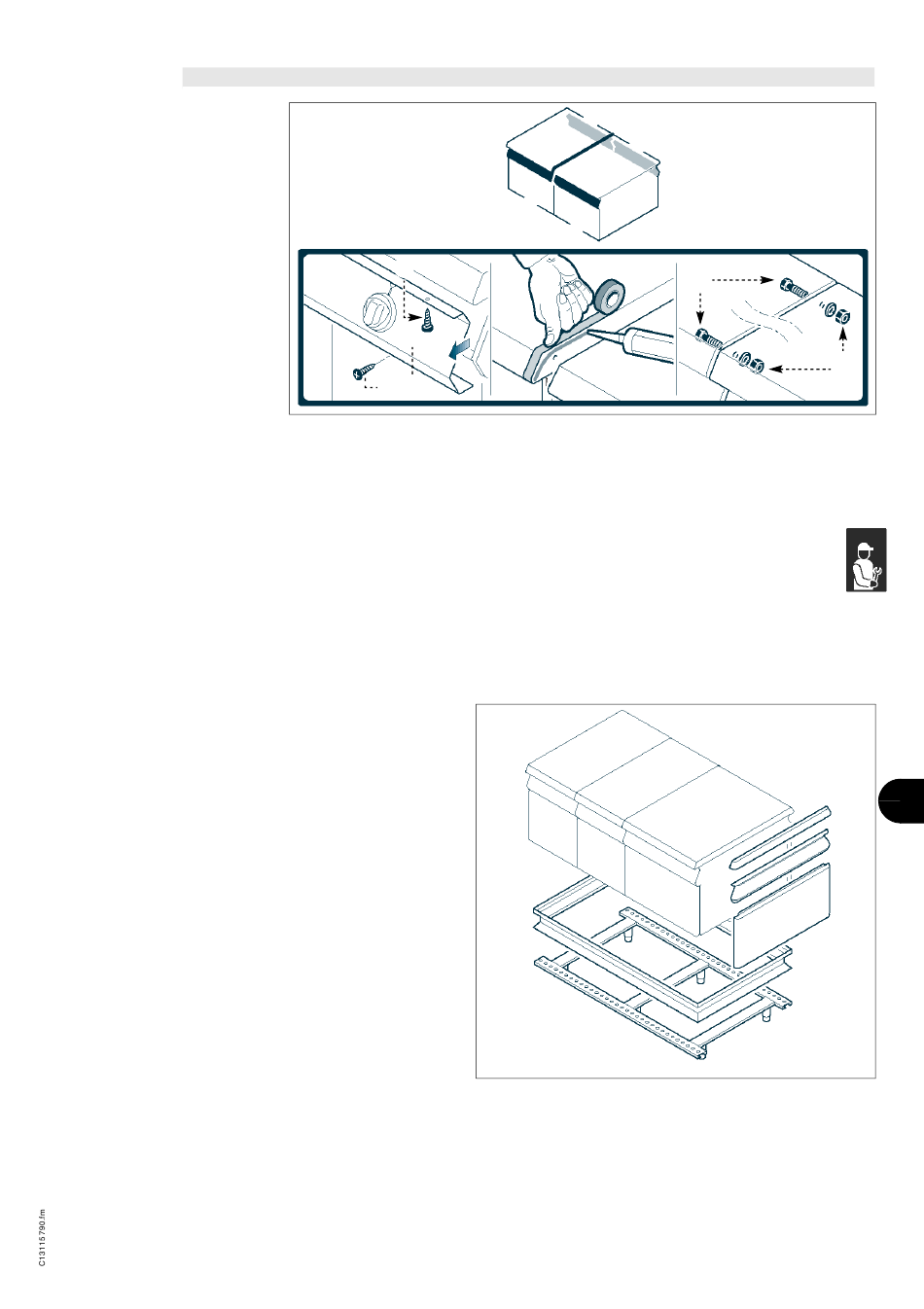

ASSEMBLY APPLIANCES IN BANKS

To assemble appliances in
banks (side by side) proceed
as described below.
1 - Undo the screws (B) and
remove the control pan-
els (C).
2 - Apply masking tape to
the edges to be placed
side by side.
3 - Apply food-approved
sealant to the edges to
be placed side by side.
4 - Place the appliances
side by side.
5 - Connect the appliance using the screws and
nuts (D-E).
For appliances installed in banks, an optional kit is
available with the supporting frame and some trims.
B
B C
6 - Remove the excess sealant and the masking
tape.
7 - Replace the control panels (C) on completion of
the operation.
- 15 -
D
E
