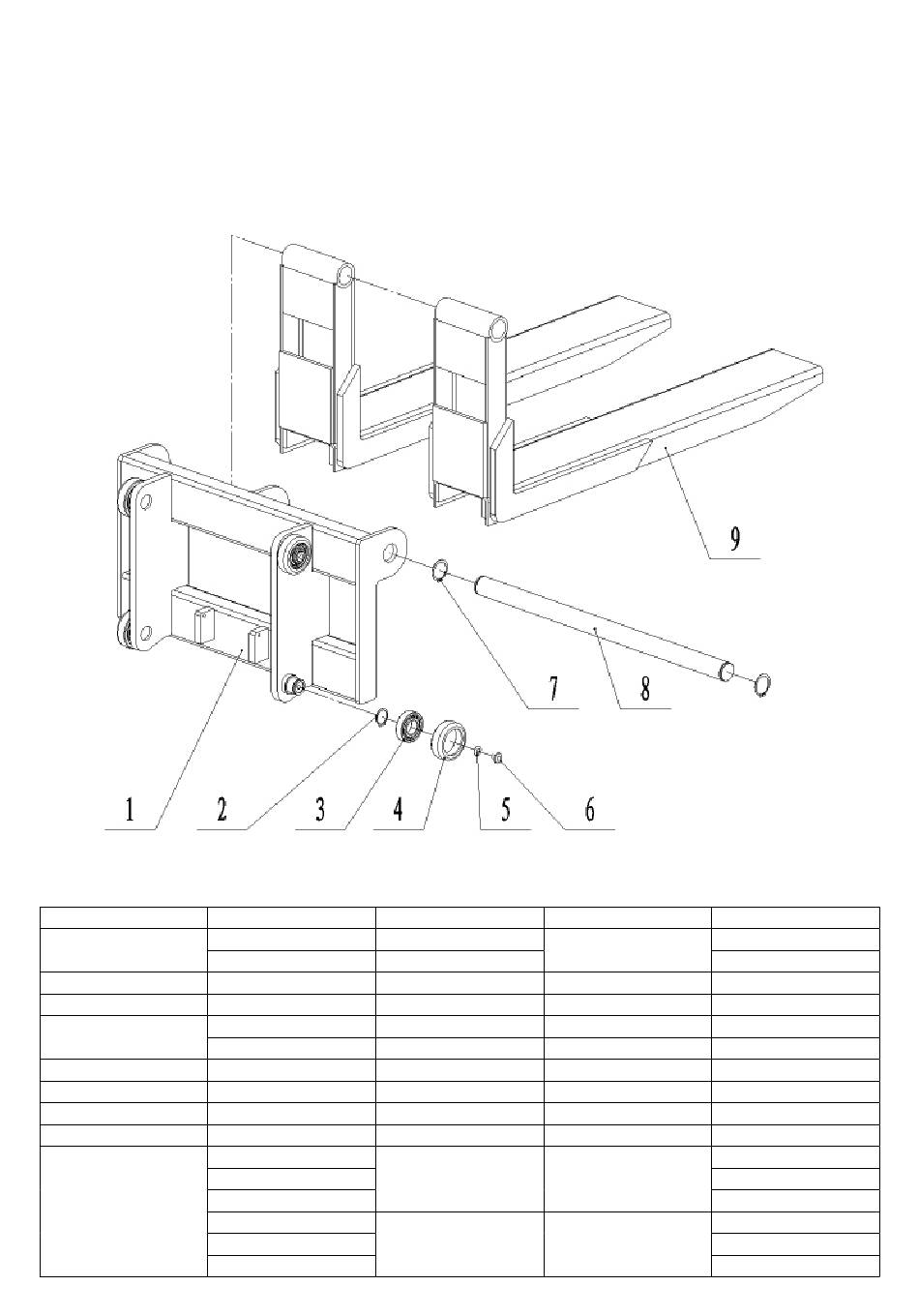

FIg.13 Adjusted PAllet FRAme
No.
1
2
3
4
5
6
7
8
9
Part Number Item
2530401008 Pallet frame
2530401011 Pallet frame
0000026008 Spring retaining ring 30
0000027012 Bearing 6206
2530411001 Roller
2530411002 Roller
2500525001 Washer
2500502003 Side block
0000026045 Spring retaining ring 38
2530507002 Long shaft
2530401009
2530401022 Fork
2530401023
2530401012
2530401024 Fork
2530401025
18 | 01252 359760 • ajproducts.co.uk
Quantity Remarks
For double mast
1
For single mast
4
4
2 Ø76.5
2 Ø78
4
4
2
1
900 for double mast
2 1100
1150
900 for double mast
2 1100
1150
