RADIO T-MODE TELESCOPIC ELECTRO-ROLLER KIT 433Mhz
1 DESCRIPTION AND TECHNICAL SPECIFICATIONS AND BATTERY SUBSTITUTION

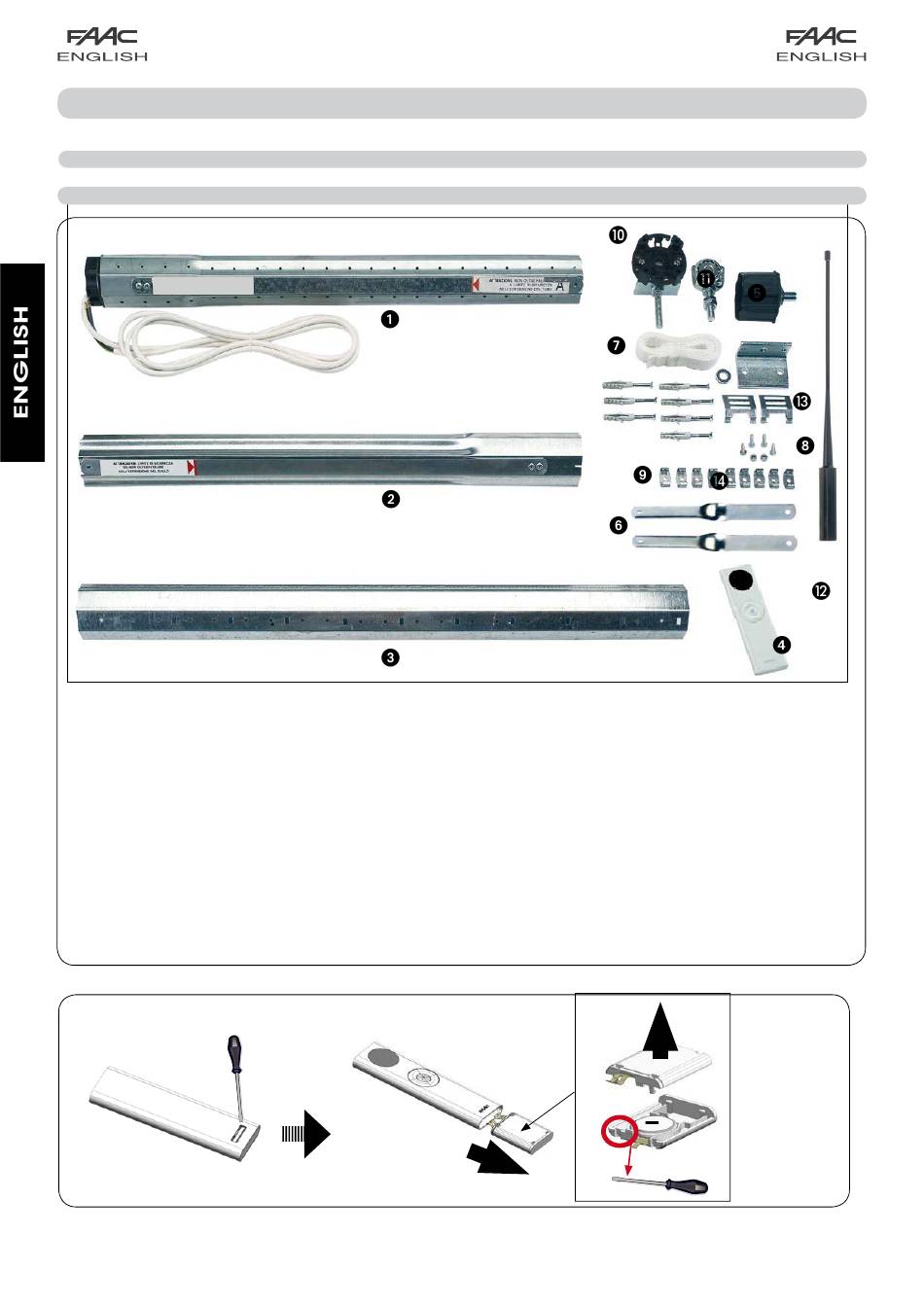

1.1 T-MODE KIT COMPONENTS
FAAC T-MODE
1. Motor sleeve with integrated radio receiver (Qty. 1)
2. Cap sleeve (Qty. 1)
3. Fixed roller (Qty. 1)
4. Transmitter with support 433.92 Mhz (Qty. 1)
5. Cap (Qty. 1)
6. Plates for securing motor support (Qty. 2)
7. Belt (Qty. 3)
8. Hooks for roller (Qty. 2)
9. Belt restraint clip (Qty. 6)
10. Adjustable motor support (Qty. 1)
11. Adjustable cap support complete with bearing (Qty. 1)
12. Limit switch adjustment tool (Qty. 1)
13. Square support (Qty. 1)
14. Various screws (Qty. 7 wall expansion plugs, Qty. 2 self tapping screws, Qty. 2 bolts / nuts / M5 washers)
2
Fig.1
CR 2430
