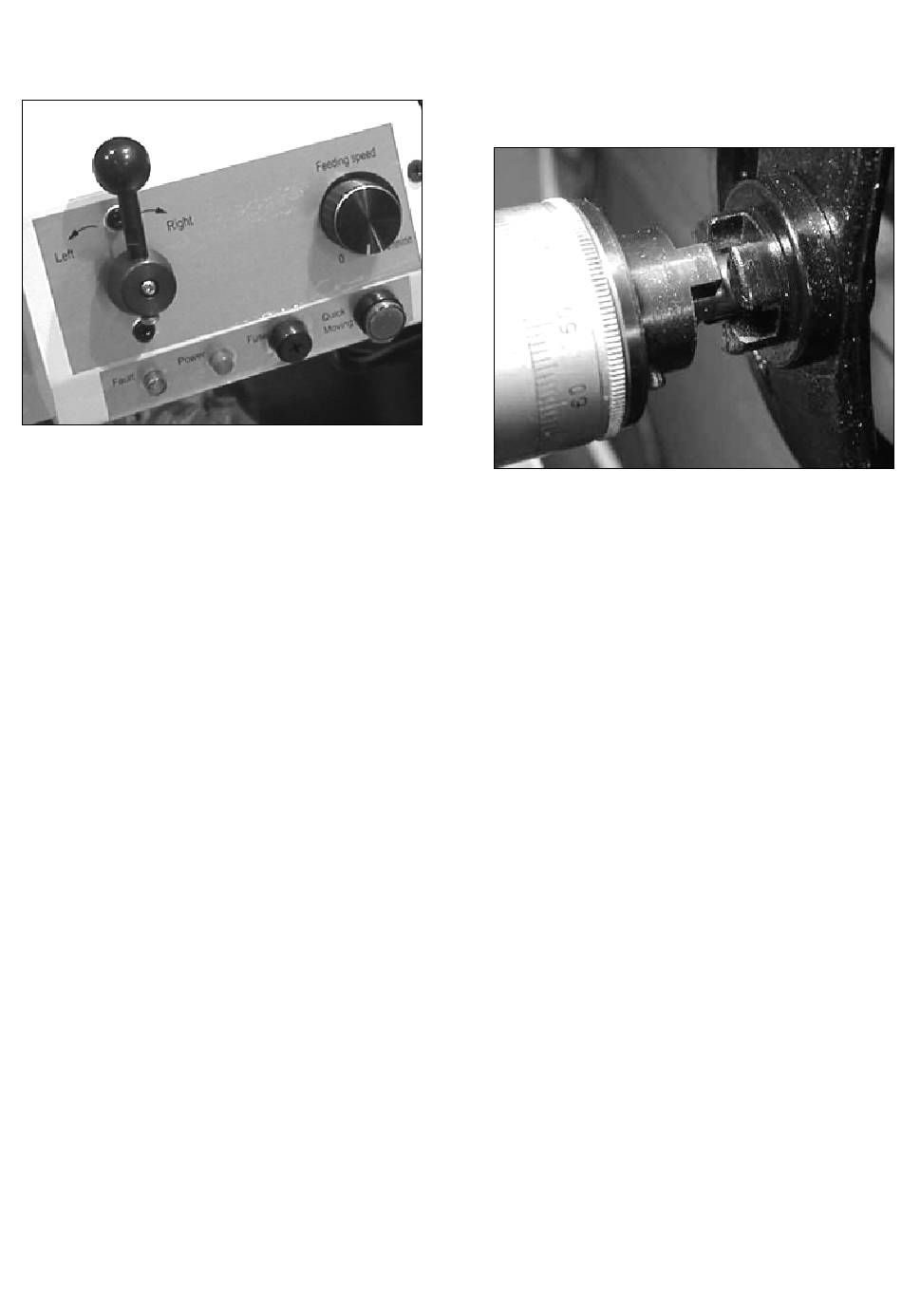

C) Operating the power feed unit:
•
Left - 0 - Right Control Lever
Controls the direction of table movement
•
Feeding Speed Control (max 1100mm/min)
Sets table movement speed; resets controller.
•
Fault Lamp
Indicates "overload" or "not-ready" condition
•
Power Supply Lamp
Lights green when unit is plugged in
•
Fuse
•
Rapid Move
Press for rapid move of table
The feed speed control knob includes a reset switch.
Any time that you start up the power feed - or reverse
direction - you must turn the knob counter clockwise
until it clicks into the reset position.
D) Safety Notes:
Disengage the X-axis handwheel before you use the
power feed
Power feed can move quickly, take extra care when
using power feed
Keep one hand on the Feeding Speed Control so that
you can quickly shut off if necessary.
Disconnect the machine from the power source if not
in use (pull mains plug).
The fuse may only be changed when the machine is
disconnected from power source (pull mains plug).
Arbeiten an der elektrischen Ausrüstung dürfen nur
durch eine Elektrofachkraft vorgenommen werden.
Connection and repair work on the electrical
installation may be carried out by a qualified
electrician only.
