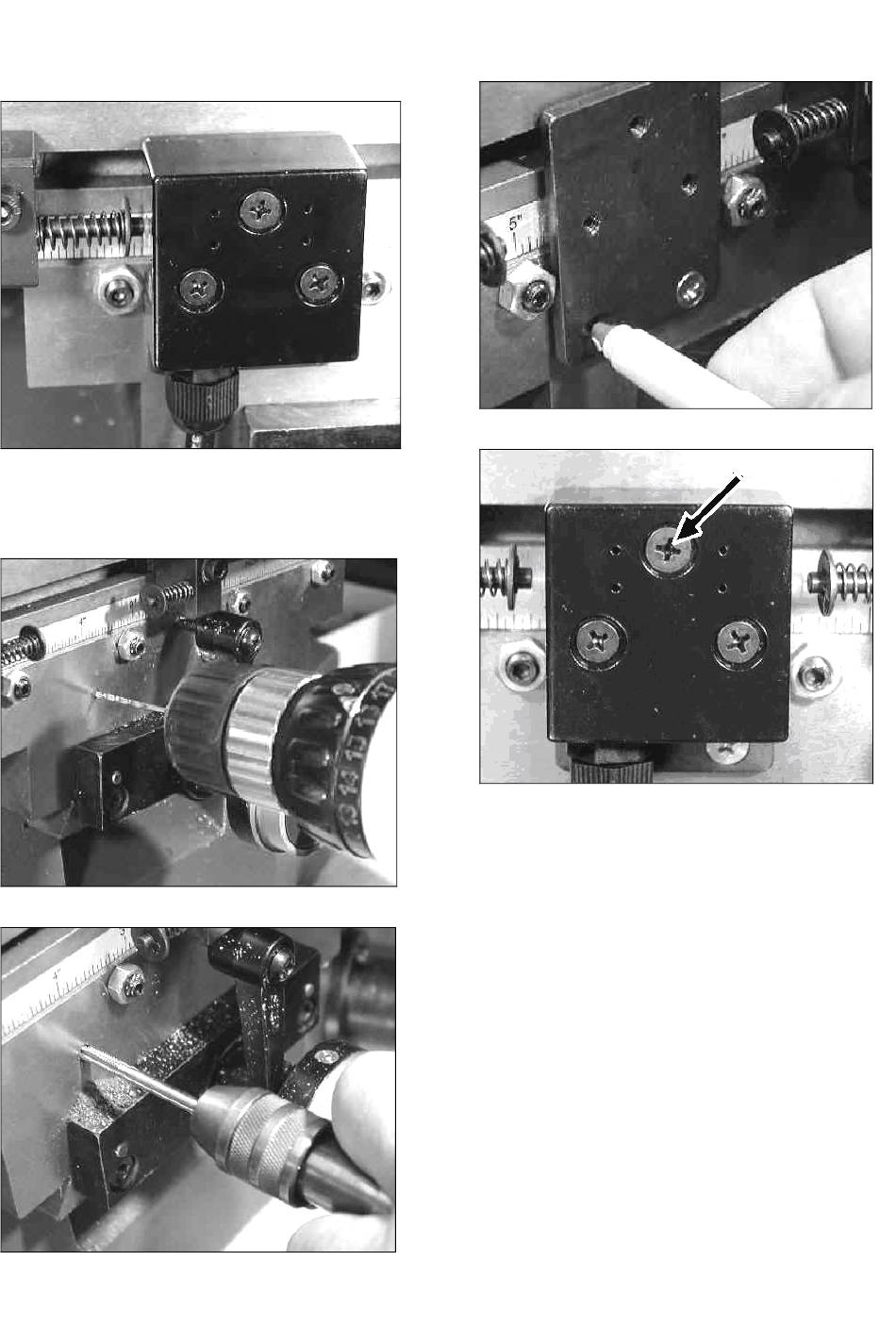

Line up the limit switch position for function and mark
the right mounting hole
After marking the position of the right hole (left hole
not accessible), remove the three flat-head screws and
separate the back plate from the switch housing.
Drill right hole.
Tap right hole
Mark the left hole, drill and tap also
Mount the switch housing onto the back plate.
Safety Note:
One of the three screws has insulating tubing around it
to avoid grounding. That screw goes in the upper-
center hole (see arrow).
