Description of the Display screen in detail
There are three sections in the QX Series display screen, one "PRIMARY" on the top and two "SECONDARY" which are on
left and right bottom of the display.
2.1.
Run Screen

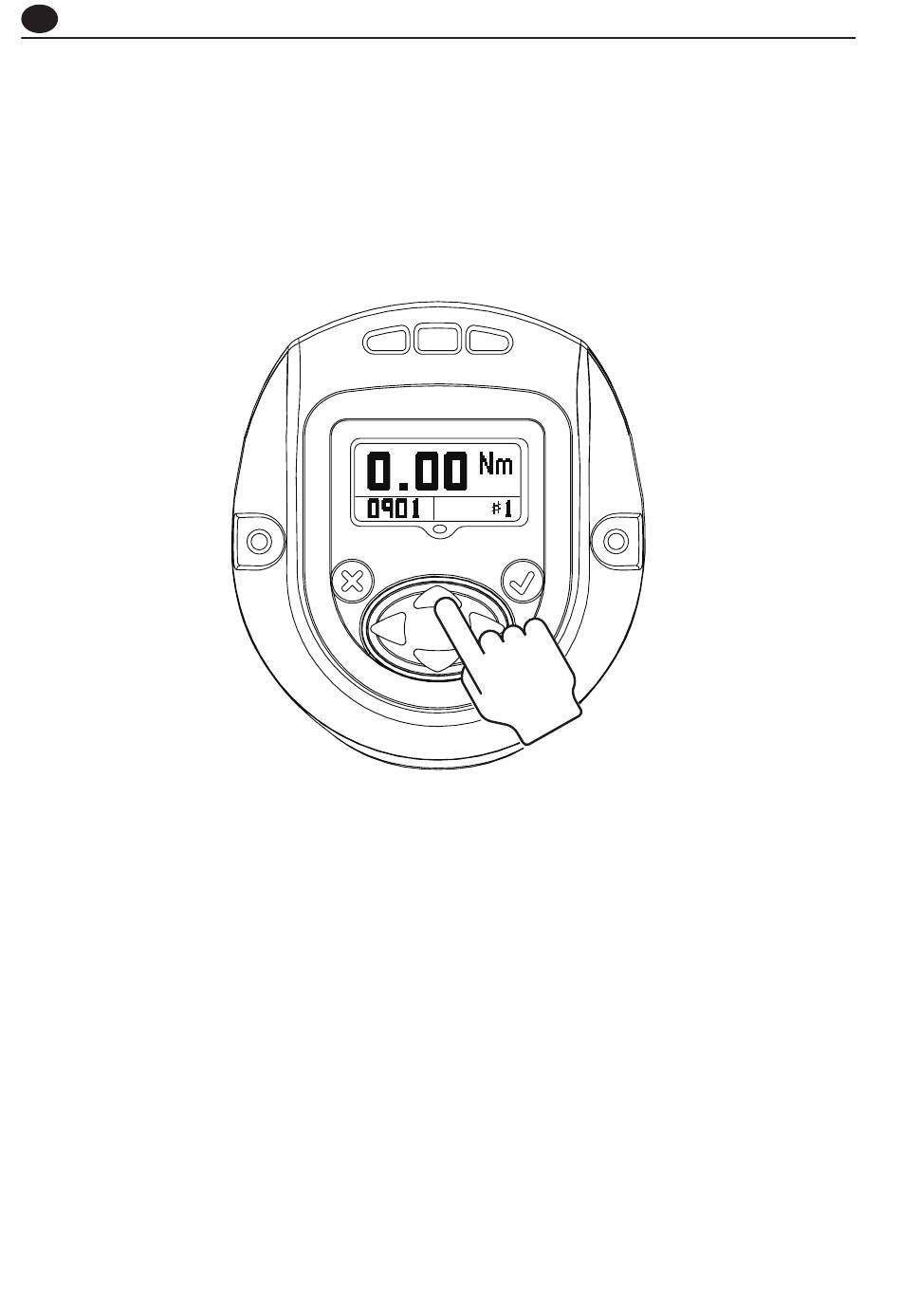

Pressing "ENTER" key after switching on the display will show this image.
PRIMARY Section - shows latest peak torque (for a torque strategy) or the latest peak angle (for an angle strategy), with
units.
The SECONDARY LEFT - shows the cycle count or gang count, if gang count is programmed.
The SECONDARY RIGHT - shows the active configuration number.
EN-4
48619852_ed1
