7.

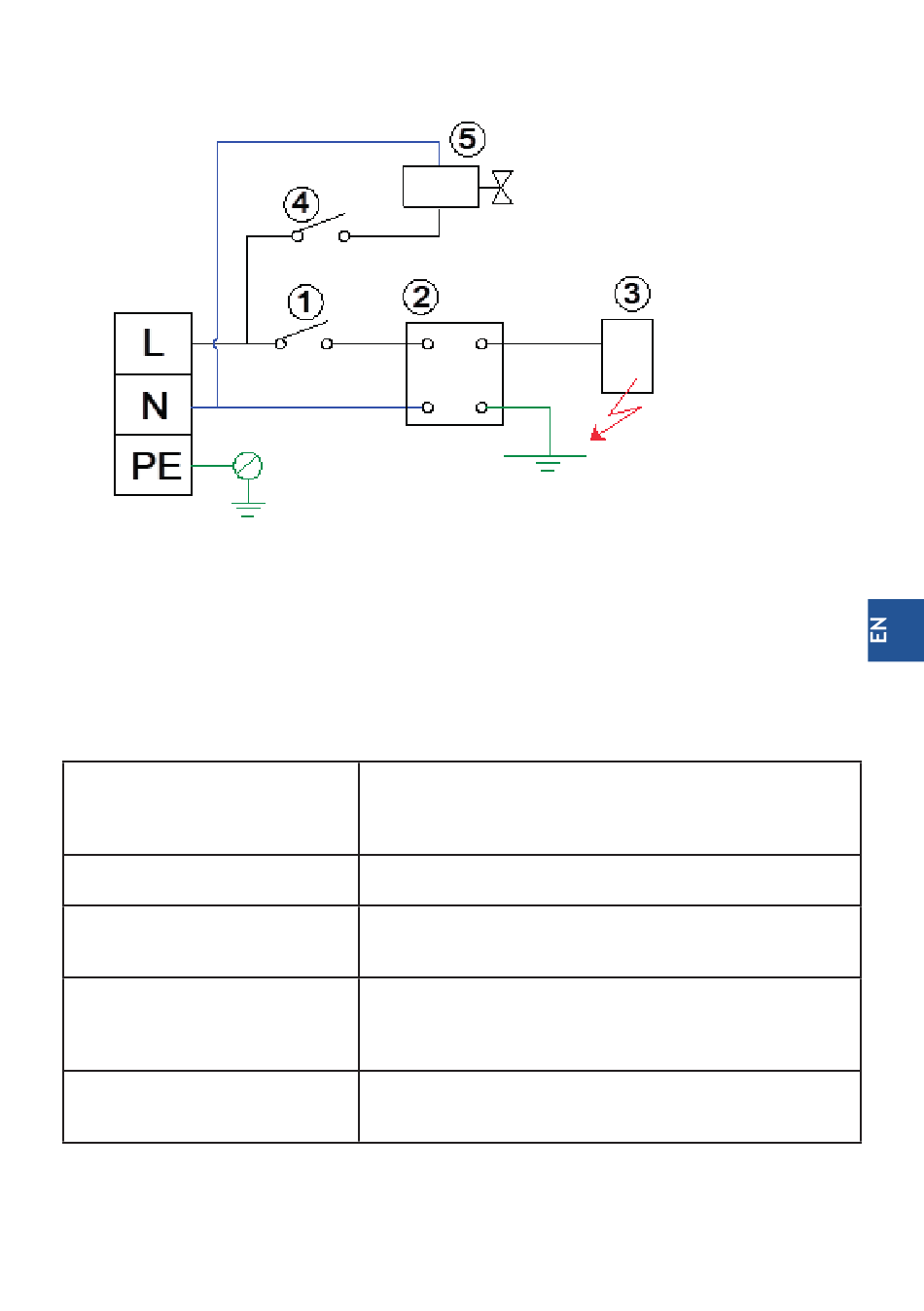

ELECTRICAL WIRING DIAGRAM

1.
Spark button
2.
Spark regulator
3.
Electrode
4.
Water solenoid button
5.
Water solenoid valve
8.

TROUBLESHOOTING

The main burner pilot does not
work
The pilot's flame is not retained
The main burner does not work.
Main burner flame burns yellow
No spark on the pilot
Gas pressure is too low
The pilot nozzle is clogged.
The gas valve is defective.
Electrode damaged
Broken thermocouple or insufficiently heated by the pilot
flame.
Gas pressure is too low
The main burner nozzle is clogged
The gas valve is defective.
Wrong amount of air supplied to the main burner -
requires adjustment of the sleeve at the main burner
nozzle
Soiled main burner - holes
Make sure the unit is connected to the mains
Check the wiring connections
Electrode damaged
- 33 -
