5. ADAPTING THE DEVICE TO ANOTHER GAS TYPE
1. Replace nozzles in the main burner - the nozzle diameters for the respective gas are given in section
4 of the manual in table 4.1.
2. Unscrew the screw securing the sleeve in the burner body, slide in or out the sleeve into the body to
the position shown in Table 4.1
Main nozzle
- 29 -

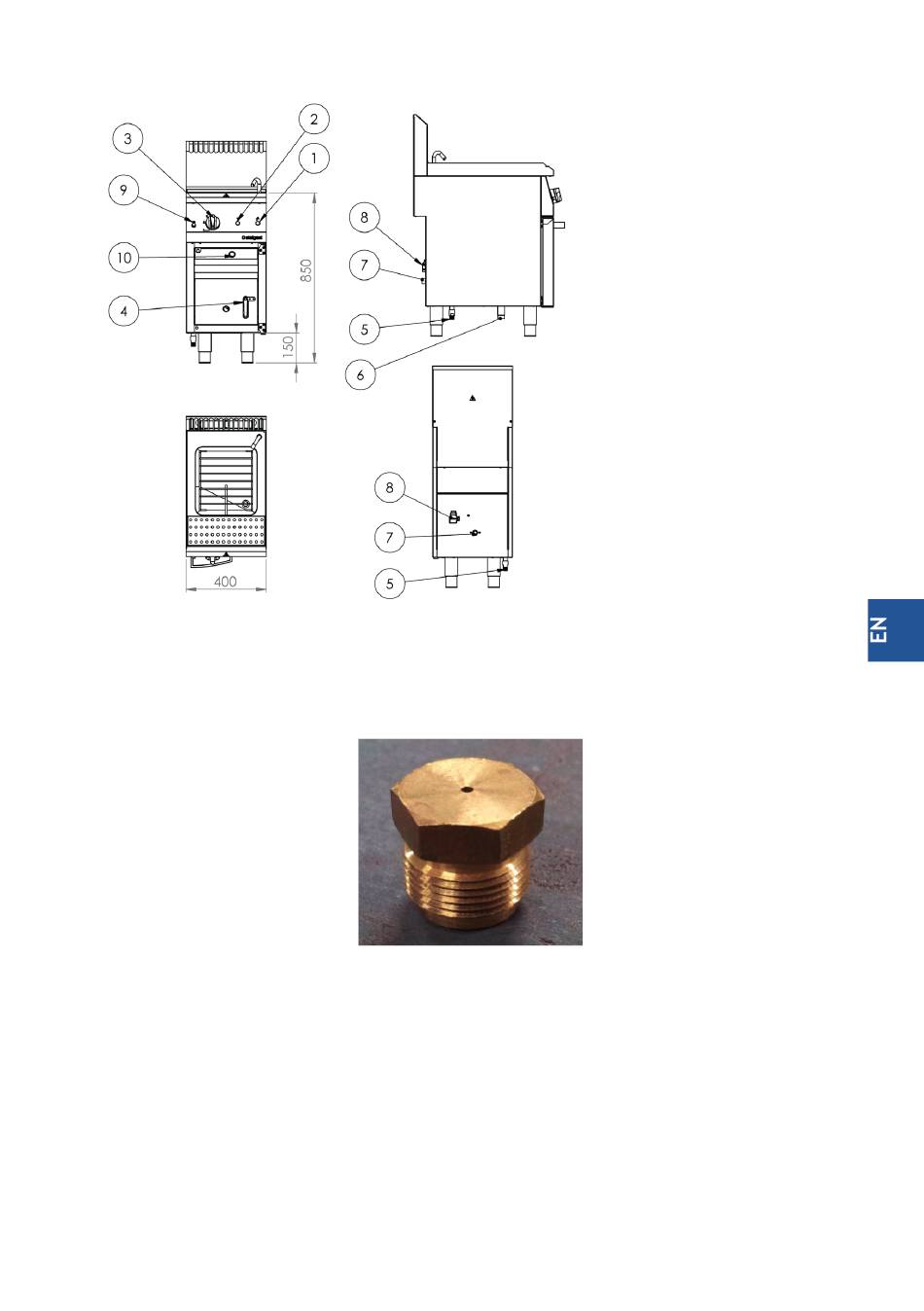

1 - Water valve button
2 - Spark generator button
3 - Gas valve knob
4 - There is a water drain valve
behind the door
5 - Gas connection pipe 1/2"
6 - Water drain connection pipe
1"
7 - Cold water connection 3/4"
8 - Power connection
230V/50Hz,
9 - safety thermostat
10 - Viewfinder of pilot control
flame
