5. INSTALLATION

With bottom-hung windows, there is a danger of potential injury resulting from the window
accidentally falling.
It is OBLIGATORY to fit limiting arms (of the Series 1276 type), or an alternative safety system, of a suitable
size to prevent the window from accidentally falling down. In case of testing before installation, please move
the chain only when opening.

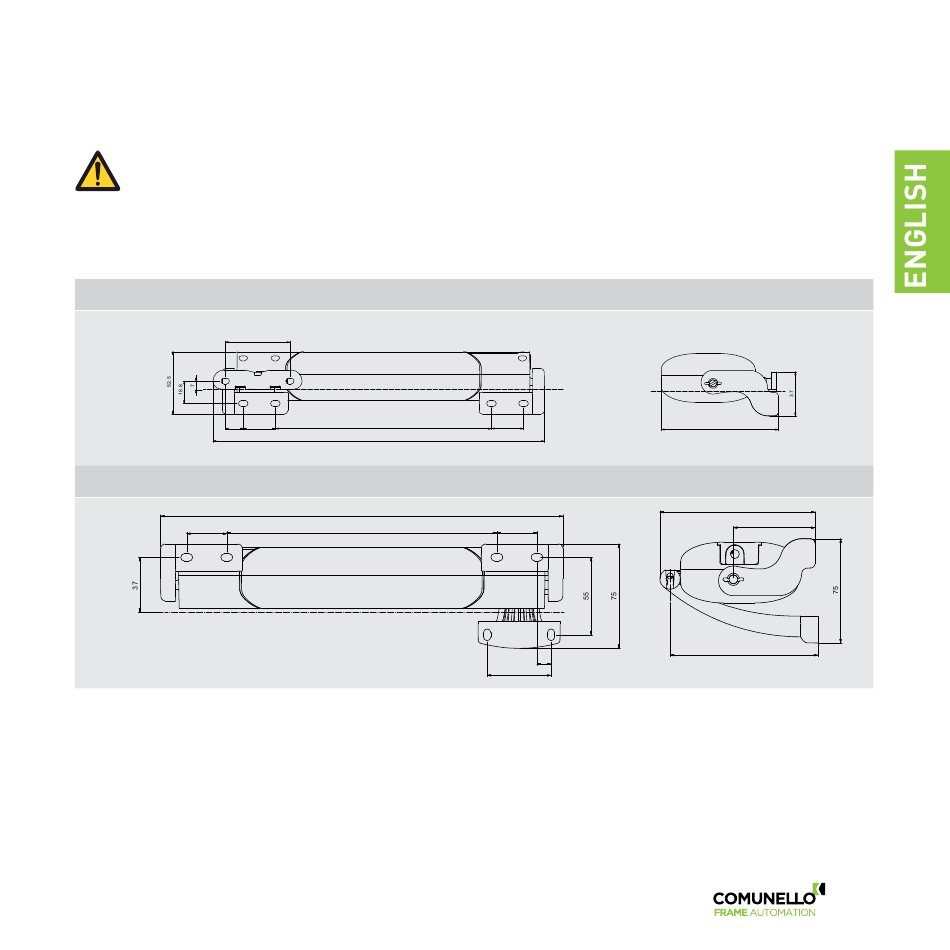

Top-hung outward opening window: Overall dimensions and fixing holes
54.4
15.2
15.2
Bottom-hung inward opening window: Overall dimensions and fixing holes
27
27
FILO SERRAMENTO
FILO SERRAMENTO

5.1 Installation sequence

Check that the width of the window, where the actuator is due to be fitted, is more than 320 mm. Otherwise,
it is NOT POSSIBLE to fit the actuator.
Check that the force required to open/close it (calculated according to the table under Point 4.2) is less than
or equal to that shown in the TECHNICAL DATA table.
Try manually the window opening, checking for and if necessary eliminating any sticking points that could
cause a malfunction.
Manually test the maximum opening of the window, checking that it is greater than the travel set by the
actuator.
54.4
FILO SERRAMENTO
FILO SERRAMENTO
27 182
27 182
280
280
270
270
182
182
27
27
27
27
9.5
9.5
42
42
99
99
105
105
55
55
99.5
99.5
7
