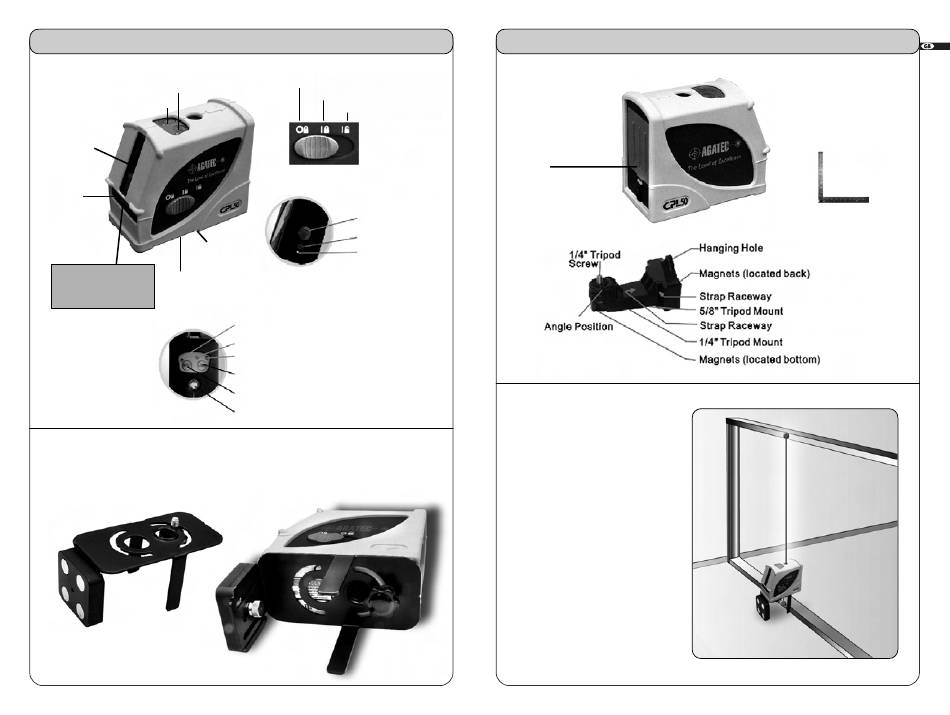

Features
Pulse Mode Button
Line Options Button
Vertical Beam
Aperture
Horizontal
Beam
Aperture
Label A
AVOID EXPOSURE
1/4" Tripod Mount
Laser Light is emitted
(Located Bottom)
from this aperture
Mount for North America
The mounting bracket is designed to extend over drywall track or the floor
stud. This allows for fast plumb set-up when framing out a wall.
4
OFF Position
ON/Locked
ON Position
Plumb Down
Beam Window
1/4" Tripod Mount
Angle Position
- Pulse LED
- Working Mode Green LED
- Low Battery/Out of level Range/Red LED
- Level Line/Vertical Line/Cross Line Button
- Pulse Mode Button
- Plumb Top Beam Window
Features
Battery Compartment
3xAA Batteries
1. Attach laser to the mount so the
downward plumb beam is pass-
ing through the hole between the
2 front legs of the mount.
2. Position laser perpendicular to
the floor track or floor stud so the
2 front legs of the mount are
against the outside edge of the
track or stud.
3. The downward plumb beam
will be on the outside edge of the
track or stud.
4. The top track or top stud can
then be positioned in the same
manner to assure it is plumb with
the floor track or stud.
Optional
Square
(Strap Channel)
(Strap Channel)
5
