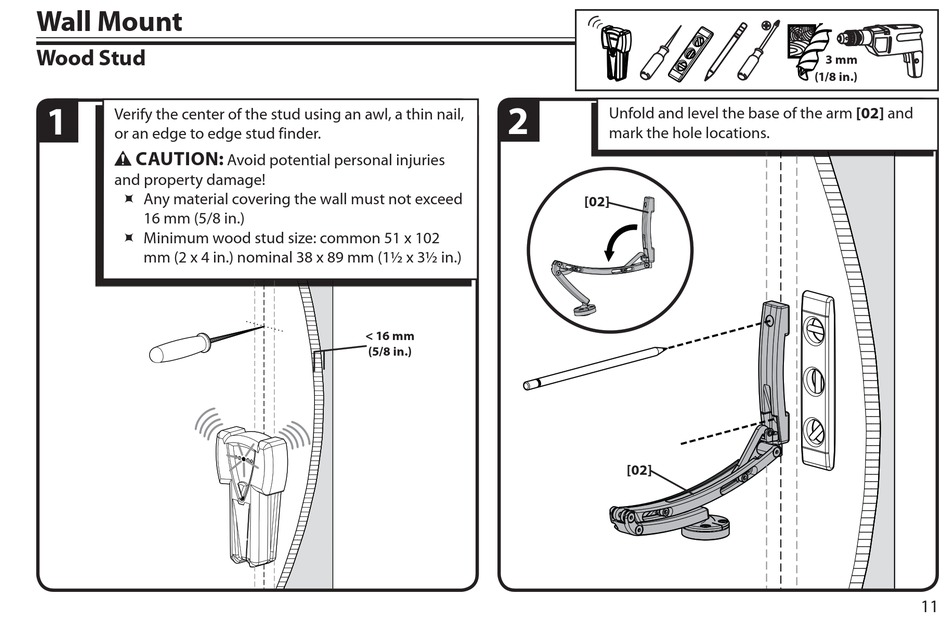

Wall Mount
Wood Stud
1
Verify the center of the stud using an awl, a thin nail,
or an edge to edge stud finder.
CAUTION:
and property damage!
Any material covering the wall must not exceed
16 mm (5/8 in.)
Minimum wood stud size: common 51 x 102
mm (2 x 4 in.) nominal 38 x 89 mm (1½ x 3½ in.)
Avoid potential personal injuries
< 16 mm
(5/8 in.)
2
Unfold and level the base of the arm [02] and
mark the hole locations.
[02]
[02]
3 mm
(1/8 in.)
