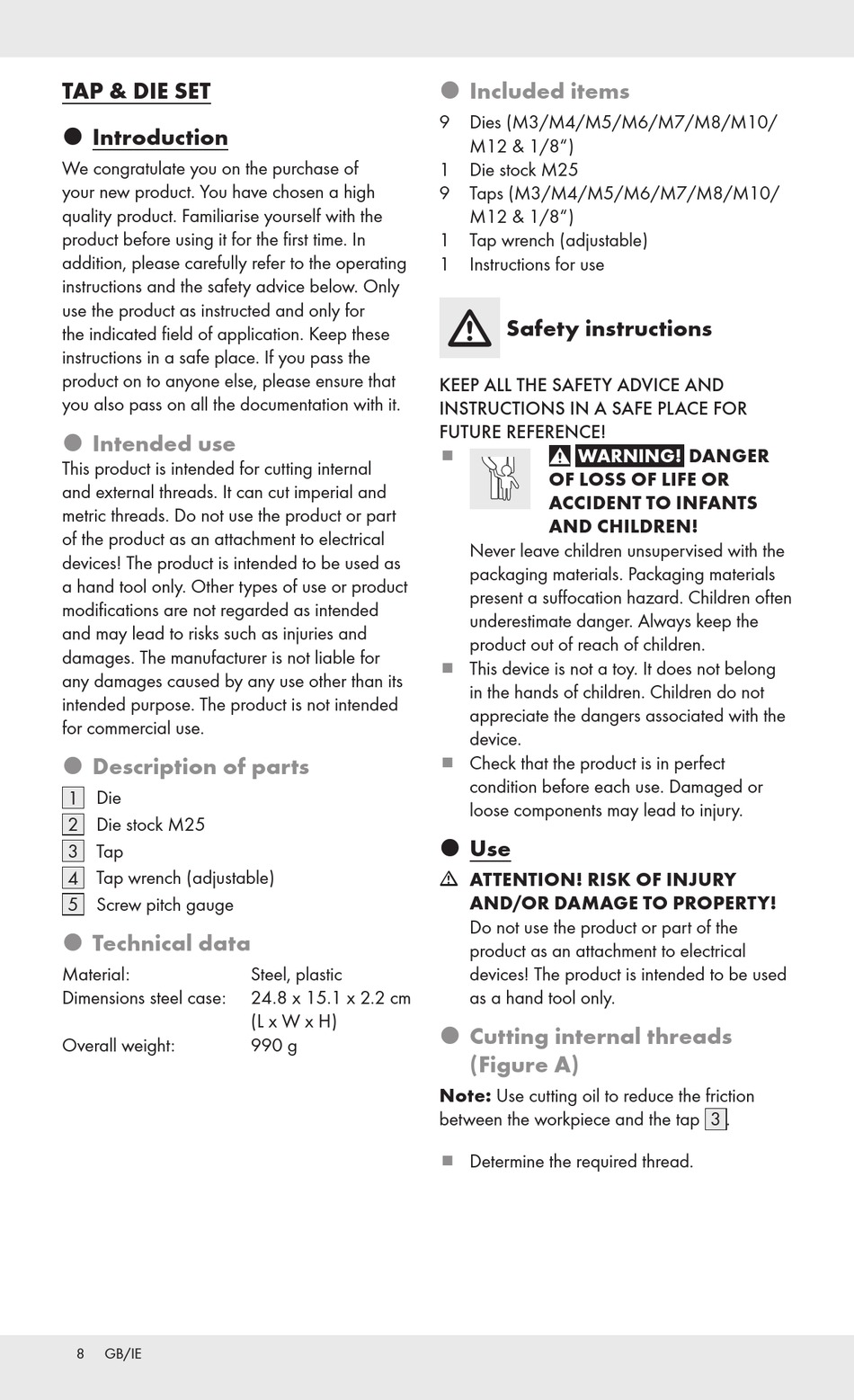

TAP & DIE SET
˜ Introduction
We congratulate you on the purchase of
your new product. You have chosen a high
quality product. Familiarise yourself with the
product before using it for the first time. In
addition, please carefully refer to the operating
instructions and the safety advice below. Only
use the product as instructed and only for
the indicated field of application. Keep these
instructions in a safe place. If you pass the
product on to anyone else, please ensure that
you also pass on all the documentation with it.
˜ Intended use
This product is intended for cutting internal
and external threads. It can cut imperial and
metric threads. Do not use the product or part
of the product as an attachment to electrical
devices! The product is intended to be used as
a hand tool only. Other types of use or product
modifications are not regarded as intended
and may lead to risks such as injuries and
damages. The manufacturer is not liable for
any damages caused by any use other than its
intended purpose. The product is not intended
for commercial use.
˜ Description of parts
1 Die
2 Die stock M25
3 Tap
4 Tap wrench (adjustable)
5 Screw pitch gauge
˜ Technical data
Material:
Dimensions steel case:
Overall weight:
8
GB/IE
Steel, plastic
24.8 x 15.1 x 2.2 cm
(L x W x H)
990 g
˜ Included items
9 Dies (M3/M4/M5/M6/M7/M8/M10/
M12 & 1/8")
1 Die stock M25
9 Taps (M3/M4/M5/M6/M7/M8/M10/
M12 & 1/8")
1 Tap wrench (adjustable)
1 Instructions for use
Safety instructions
KEEP ALL THE SAFETY ADVICE AND
INSTRUCTIONS IN A SAFE PLACE FOR
FUTURE REFERENCE!
WARNING!
OF LOSS OF LIFE OR
ACCIDENT TO INFANTS
AND CHILDREN!
Never leave children unsupervised with the
packaging materials. Packaging materials
present a suffocation hazard. Children often
underestimate danger. Always keep the
product out of reach of children.
This device is not a toy. It does not belong
in the hands of children. Children do not
appreciate the dangers associated with the
device.
Check that the product is in perfect
condition before each use. Damaged or
loose components may lead to injury.
˜ Use
m ATTENTION! RISK OF INJURY
AND/OR DAMAGE TO PROPERTY!
Do not use the product or part of the
product as an attachment to electrical
devices! The product is intended to be used
as a hand tool only.
˜ Cutting internal threads
(Figure A)
Note: Use cutting oil to reduce the friction
between the workpiece and the tap 3 .
Determine the required thread.
DANGER
