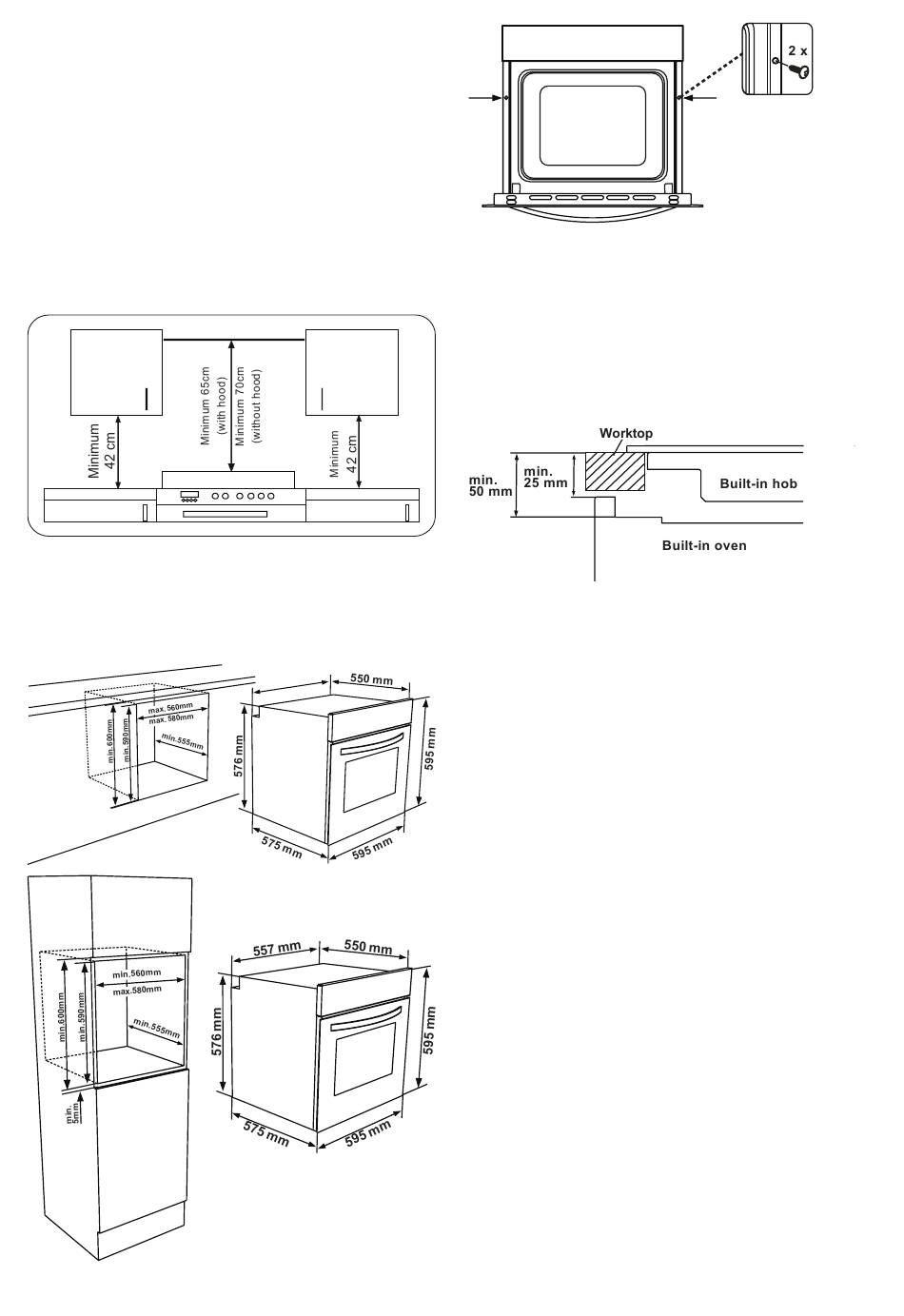

Required changes to wall cabinets and
exhaust fans above the built-in combi-
ned product as well as minimum he-
ights from the oven board are shown in
Figure 1. Accordingly, the exhaust fan
should be at a minimum height of 65 cm
from the hob board. If there is no ex-
haust fan the height should not be less
than 70 cm.
INSTALLATION OF BUILT-IN
OVEN
HOB
Insert the oven into the cabinet by pus-
hing it forward. Open the oven door and
insert 2 screws in the holes located on
the oven frame. While the product fra-
me touches the wooden surface of ca-
binet, tighten the screws.
If the oven is installed under a hob, the
distance between the worktop and the
top panel of the oven must be minimum
50 mm and the distance between the
worktop and the top of control panel
must be minimum 25 mm.
WIRING AND SAFETY OF
BUILT_IN OVEN
The instructions given below must be
followed without fail during wiring :
– The earthing cable must be connec-
ted via the screw with the earthing
mark. Supply cable connection must
be as shown in Figure 6. If there is
no earthed outlet conforming to regu-
lations in the installation environment,
call the Authorized Service immedia-
tely.
– The earthed outlet must be in close
vicinity of the appliance. Never use an
extension cord.
– The supply cable should not contact
