SoftCloud® Ace, SoftCloud® Pro

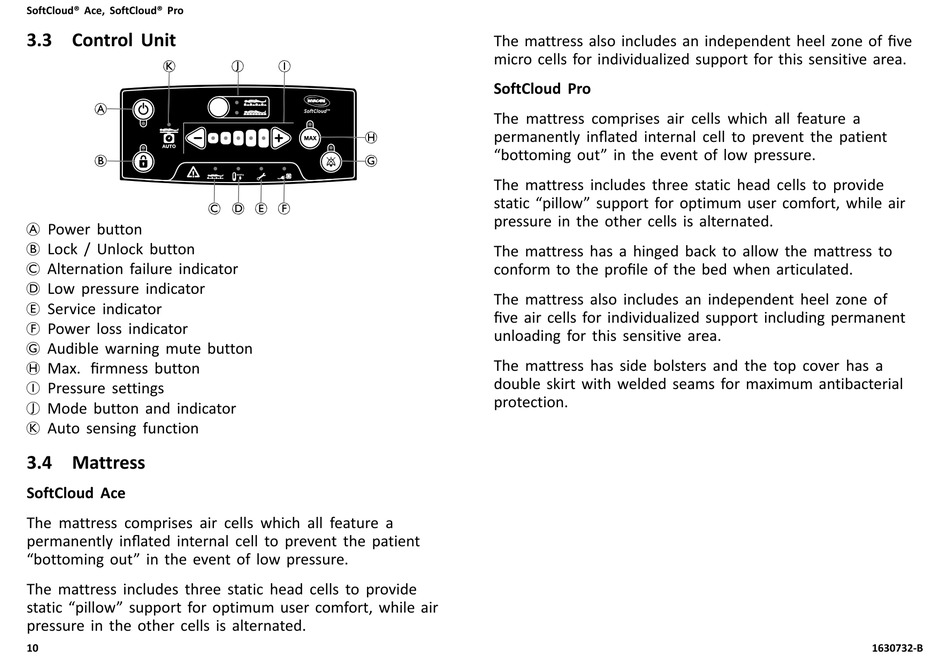

3.3 Control Unit

A
B
A Power button
B Lock / Unlock button
C Alternation failure indicator
D Low pressure indicator
E Service indicator
F Power loss indicator
G Audible warning mute button
H Max. firmness button
I Pressure settings
J Mode button and indicator
K Auto sensing function

3.4 Mattress

SoftCloud Ace
The mattress comprises air cells which all feature a
permanently inflated internal cell to prevent the patient
"bottoming out" in the event of low pressure.
The mattress includes three static head cells to provide
static "pillow" support for optimum user comfort, while air
pressure in the other cells is alternated.
10
C D E F
The mattress also includes an independent heel zone of five
micro cells for individualized support for this sensitive area.
SoftCloud Pro
The mattress comprises air cells which all feature a
permanently inflated internal cell to prevent the patient
"bottoming out" in the event of low pressure.
The mattress includes three static head cells to provide
static "pillow" support for optimum user comfort, while air
pressure in the other cells is alternated.
The mattress has a hinged back to allow the mattress to
conform to the profile of the bed when articulated.
The mattress also includes an independent heel zone of
five air cells for individualized support including permanent
unloading for this sensitive area.
The mattress has side bolsters and the top cover has a
double skirt with welded seams for maximum antibacterial
protection.
1630732-B
