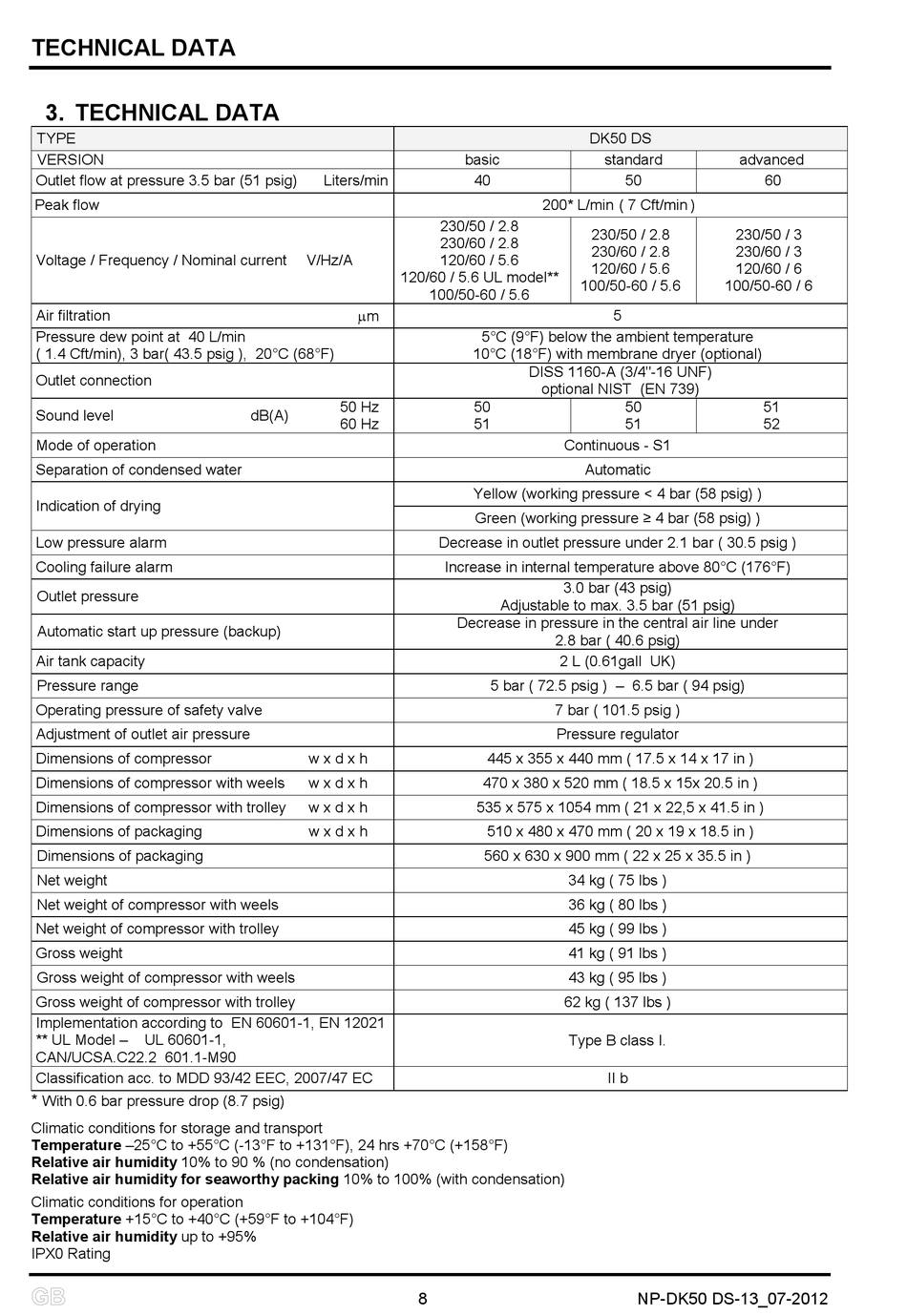

TECHNICAL DATA

3. TECHNICAL DATA
TYPE
VERSION
Outlet flow at pressure 3.5 bar (51 psig)
Peak flow
Voltage / Frequency / Nominal current
Air filtration
Pressure dew point at 40 L/min
( 1.4 Cft/min), 3 bar( 43.5 psig ), 20°C (68°F)
Outlet connection
Sound level
Mode of operation
Separation of condensed water
Indication of drying
Low pressure alarm
Cooling failure alarm
Outlet pressure
Automatic start up pressure (backup)
Air tank capacity
Pressure range
Operating pressure of safety valve
Adjustment of outlet air pressure
Dimensions of compressor
Dimensions of compressor with weels
Dimensions of compressor with trolley
Dimensions of packaging
Dimensions of packaging
Net weight
Net weight of compressor with weels
Net weight of compressor with trolley
Gross weight
Gross weight of compressor with weels
Gross weight of compressor with trolley
Implementation according to EN 60601-1, EN 12021
** UL Model – UL 60601-1,
CAN/UCSA.C22.2 601.1-M90
Classification acc. to MDD 93/42 EEC, 2007/47 EC
*
With 0.6 bar pressure drop (8.7 psig)
Climatic conditions for storage and transport
Temperature –25°C to +55°C (-13°F to +131°F), 24 hrs +70°C (+158°F)
Relative air humidity 10% to 90 % (no condensation)
Relative air humidity for seaworthy packing 10% to 100% (with condensation)
Climatic conditions for operation
Temperature +15°C to +40°C (+59°F to +104°F)
Relative air humidity up to +95%
IPX0 Rating
Liters/min
V/Hz/A
120/60 / 5.6 UL model**
m
50 Hz
dB(A)
60 Hz
w x d x h
w x d x h
w x d x h
w x d x h
8
DK50 DS
basic
40
200* L/min ( 7 Cft/min )
230/50 / 2.8
230/50 / 2.8
230/60 / 2.8
230/60 / 2.8
120/60 / 5.6
120/60 / 5.6
100/50-60 / 5.6
100/50-60 / 5.6
5°C (9°F) below the ambient temperature
10°C (18°F) with membrane dryer (optional)
DISS 1160-A (3/4"-16 UNF)
optional NIST (EN 739)
50
51
Continuous - S1
Automatic
Yellow (working pressure < 4 bar (58 psig) )
Green (working pressure ≥ 4 bar (58 psig) )
Decrease in outlet pressure under 2.1 bar ( 30.5 psig )
Increase in internal temperature above 80°C (176°F)
3.0 bar (43 psig)
Adjustable to max. 3.5 bar (51 psig)
Decrease in pressure in the central air line under
2.8 bar ( 40.6 psig)
2 L (0.61gall UK)
5 bar ( 72.5 psig ) – 6.5 bar ( 94 psig)
7 bar ( 101.5 psig )
Pressure regulator
445 x 355 x 440 mm ( 17.5 x 14 x 17 in )
470 x 380 x 520 mm ( 18.5 x 15x 20.5 in )
535 x 575 x 1054 mm ( 21 x 22,5 x 41.5 in )
510 x 480 x 470 mm ( 20 x 19 x 18.5 in )
560 x 630 x 900 mm ( 22 x 25 x 35.5 in )
34 kg ( 75 lbs )
36 kg ( 80 lbs )
45 kg ( 99 lbs )
41 kg ( 91 lbs )
43 kg ( 95 lbs )
62 kg ( 137 lbs )
Type B class I.
standard advanced
50 60
230/50 / 3
230/60 / 3
120/60 / 6
100/50-60 / 6
5
50 51
51 52
II b
