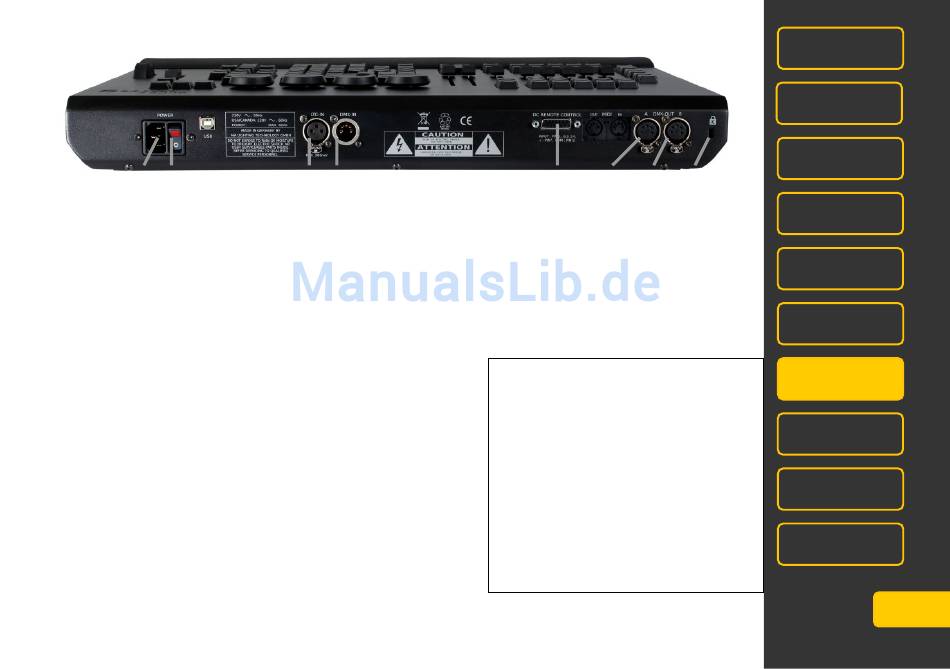

Connectivity
1 2
1) Mains switch ON/OFF (0) and power supply (IEC 22) 90 V – 264 V ~ , 50 / 60 Hz
- Automatic operation, no switching necessary!
Cable and connector are not included in delivery and must meet the local requirements.
Caution! Use the identical electrical circuit, respectively the identical protective earth conductor for PC
(onPC) and MA onPC command wing; otherwise damages of hardware and/or malfunction can result
from connecting via USB cable. That means, both units (PC and MA onPC command wing) must be
connected to the same socket or (only if guaranteed) to the same electric circuit (protective earth
identical)!
2) USB USB – cable included in delivery
3) LTC – timecode – IN (XLR 3 pin)
4) DMX - IN (5 pin)
5) Connectivity for Analogue Remote Control Input
NOTE: do not use this connector for the grandMA 2 fader wing!
6) MIDI - IN / OUT, Midi – Note, Midi Time Code and
Midi Show Control (MSC)
7) 2 DMX - OUT (5 pin)
8) Kensington Lock (anti theft device)
3 4 5 6 7
SUB D15 setting / DC Remote
Control:
Pin 1-6: channels 1,3,5,7,9,11
Pin 7: +5V
Pin 8: ground
Pin 9-14: channels 2,4,6,8,10,12
Pin 15: n.c.
Connect channel with + 5V (Pin 7)
or connect channel with extern
current 5 - 10V and ground (Pin 8)
Note: channels have switch
function only!
