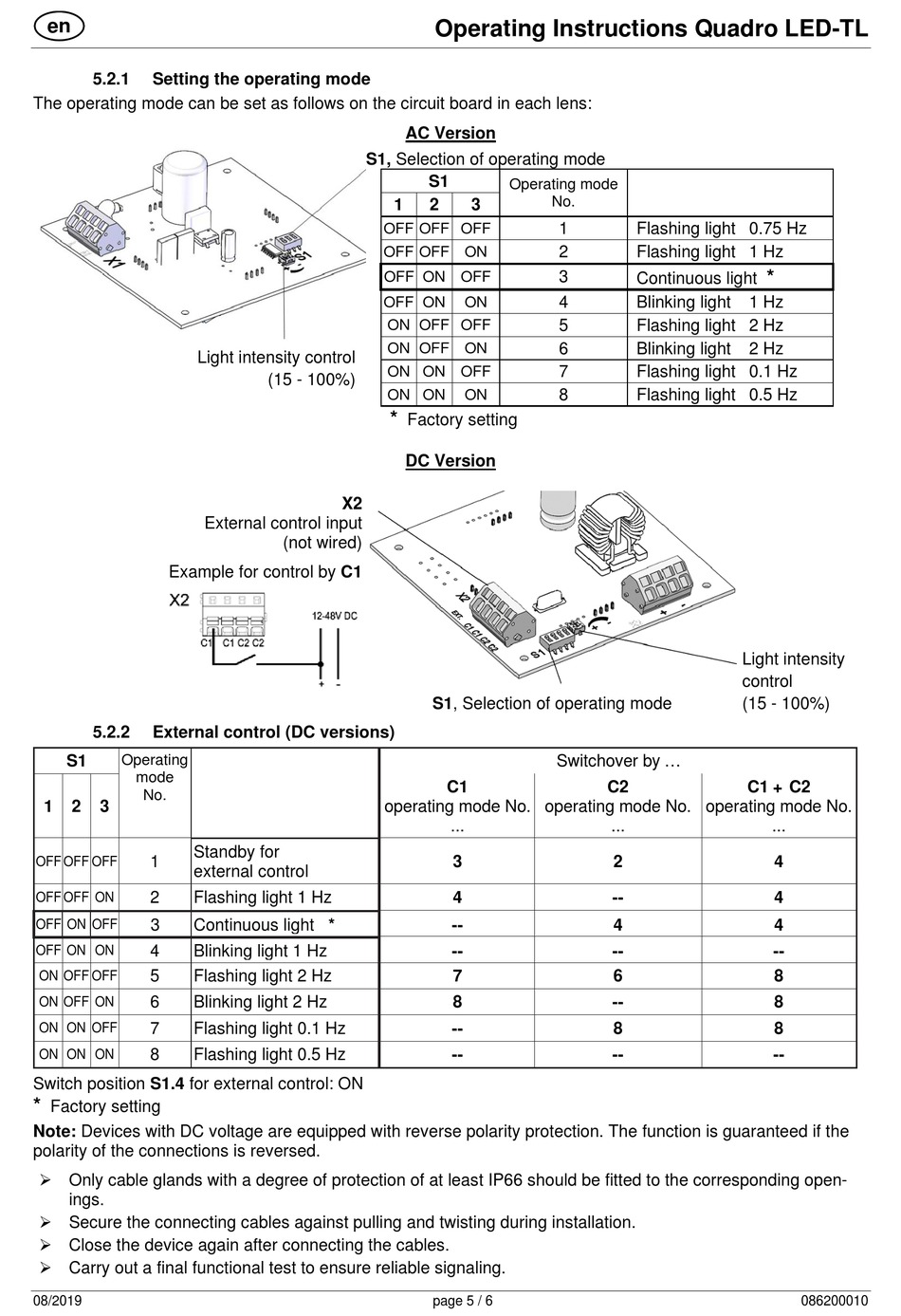

5.2.1

Setting the operating mode

The operating mode can be set as follows on the circuit board in each lens:
Light intensity control
Example for control by C1
5.2.2

External control (DC versions)

Operating
S1
mode
No.
1 2 3
Standby for
1
OFF OFF OFF
external control
2 Flashing light 1 Hz
OFF OFF ON
3 Continuous light *
OFF ON OFF
4 Blinking light 1 Hz
OFF ON ON
5 Flashing light 2 Hz
ON OFF OFF
6 Blinking light 2 Hz
ON OFF ON
7 Flashing light 0.1 Hz
ON ON OFF
8 Flashing light 0.5 Hz
ON ON ON
Switch position S1.4 for external control: ON
*
Factory setting
Note: Devices with DC voltage are equipped with reverse polarity protection. The function is guaranteed if the
polarity of the connections is reversed.
 Only cable glands with a degree of protection of at least IP66 should be fitted to the corresponding open-
ings.
 Secure the connecting cables against pulling and twisting during installation.
 Close the device again after connecting the cables.
 Carry out a final functional test to ensure reliable signaling.
08/2019
S1, Selection of operating mode
(15 - 100%)
X2
External control input
(not wired)
Operating Instructions Quadro LED-TL
AC Version
S1
Operating mode
No.
1 2 3
OFF OFF OFF
OFF OFF ON
OFF ON OFF
OFF ON ON
ON OFF OFF
ON OFF ON
ON ON OFF
ON ON ON
*
Factory setting
DC Version
S1, Selection of operating mode
C1
operating mode No. operating mode No.
...
3
4
--
--
7
8
--
--
page 5 / 6
1 Flashing light 0.75 Hz
2 Flashing light 1 Hz
3
Continuous light
4 Blinking light
5 Flashing light 2 Hz
6 Blinking light
7 Flashing light 0.1 Hz
8 Flashing light 0.5 Hz
Switchover by ...
C2
operating mode No.
...
2
--
4
--
6
--
8
--
*
1 Hz
2 Hz
Light intensity
control
(15 - 100%)
C1 + C2
...
4
4
4
--
8
8
8
--
086200010
