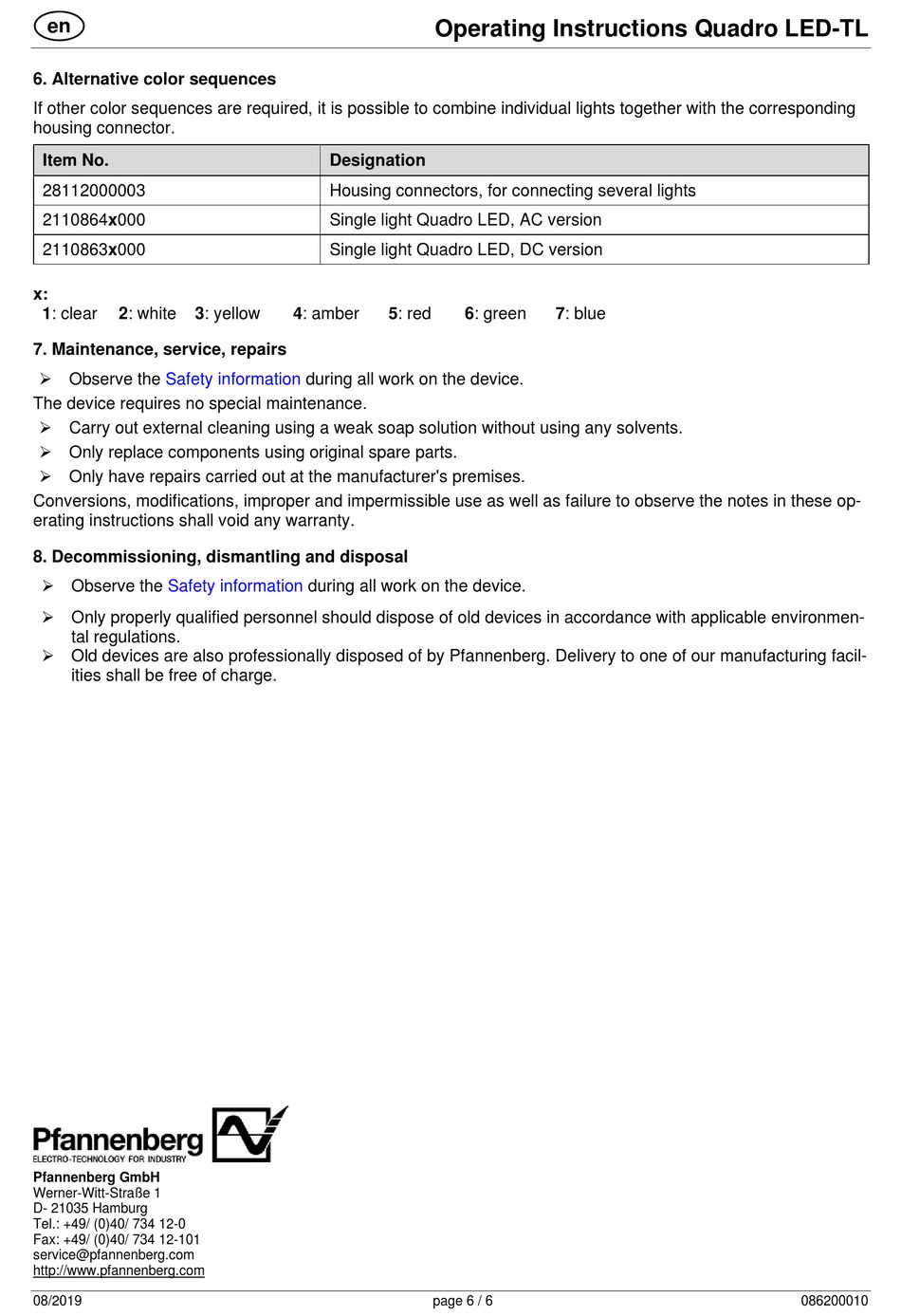

Alternative Color Sequences; Maintenance, Service, Repairs; Decommissioning, Dismantling And Disposal - Pfannenberg Quadro LED-TL Betriebsanleitung

en

6. Alternative color sequences

If other color sequences are required, it is possible to combine individual lights together with the corresponding
housing connector.
Item No.
28112000003
2110864x000
2110863x000
x:
1: clear 2: white 3: yellow

7. Maintenance, service, repairs

 Observe the
Safety information
The device requires no special maintenance.
 Carry out external cleaning using a weak soap solution without using any solvents.
 Only replace components using original spare parts.
 Only have repairs carried out at the manufacturer's premises.
Conversions, modifications, improper and impermissible use as well as failure to observe the notes in these op-
erating instructions shall void any warranty.

8. Decommissioning, dismantling and disposal

 Observe the
Safety information
 Only properly qualified personnel should dispose of old devices in accordance with applicable environmen-
tal regulations.
 Old devices are also professionally disposed of by Pfannenberg. Delivery to one of our manufacturing facil-
ities shall be free of charge.
Pfannenberg GmbH
Werner-Witt-Straße 1
D- 21035 Hamburg
Tel.: +49/ (0)40/ 734 12-0
Fax: +49/ (0)40/ 734 12-101
service@pfannenberg.com
http://www.pfannenberg.com
08/2019
Operating Instructions Quadro LED-TL
Designation
Housing connectors, for connecting several lights
Single light Quadro LED, AC version
Single light Quadro LED, DC version
4: amber 5: red
during all work on the device.
during all work on the device.
page 6 / 6
6: green 7: blue
086200010
