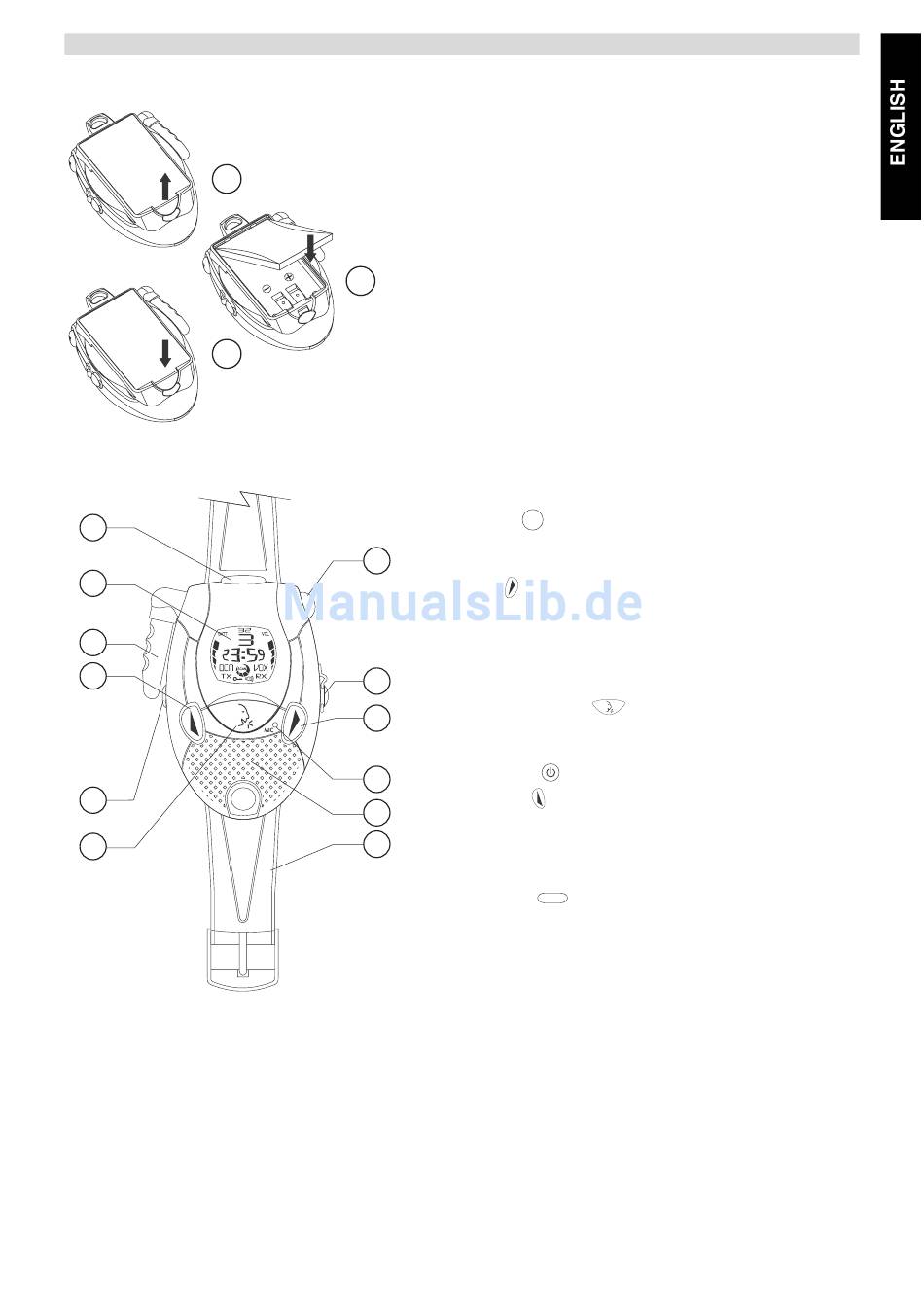

BATTERY INSTALLATION

1
3
8 BUTTONS
12
11
10
9
8
7
TOPCOM MULTITALKER 1000
1.Insert a small coin behind the battery door open area and
remove battery cover.
2.Insert the enclosed Li-ion battery pack as shown. Make sure
that the metal contacts are facing down.
3.Re-install the Battery Cover.
2
1.CALL button
CALL
- Transmit a call tone
1
2.SPEAKER/MIC/CHARGER Connector
3.UP button
- Increase the speaker volume
- Select the next item in the menu
4.MICROPHONE
5.SPEAKER
2
6.WRIST BELT
7.PUSH TO TALK button
3
- Press To Talk or release to listen
- Confirm a setting in the menu
8.ON/OFF button
4
9.DOWN button
5
- Decrease the speaker volume
6
- Select the previous item in the menu.
10.Antenna
11.Display
12.MENU button
- Enter menu.
