REAR PANEL

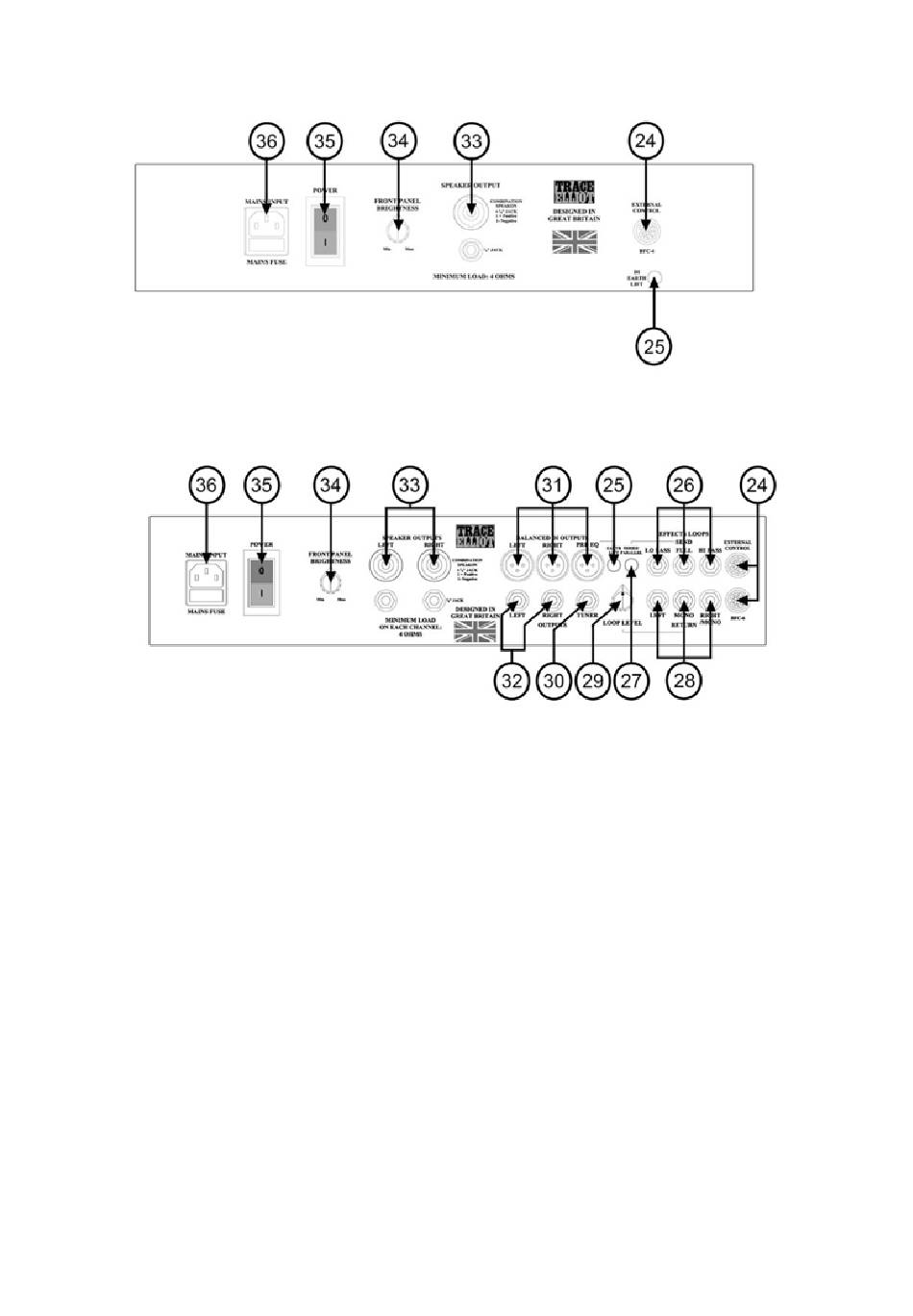

7 BAND
12 BAND
N.B. Within the 7 Band and 12 Band ranges the rear panels may vary slightly from those shown above.
(24) EXTERNAL CONTROL 8 pin DIN socket(s) – BFC-4 (7Band), BFC-6 (12 Band)
The socket(s) are for connecting to the footcontroller supplied with the unit. It should be connected before
the unit is switched on. Please ensure that the lead is inserted firmly and securely into the sockets on both the
amplifier and the footcontroller.
7 Band units are supplied with a 4-function footcontroller (BFC-4) that enables the user to control PRE-
SHAPE, GRAPHIC, COMPRESSOR and MUTE.
The 12 Band units are supplied with a 6-function footcontroller (BFC-6) that enables the user to control PRE-
SHAPE, VALVE, GRAPHIC, COMPRESSOR, LOOP and MUTE.
The LEDs on both footcontrollers all correspond in colour and function to those on the front panel.
If a footcontroller is disconnected from the amplifier while it is on and then reconnected, it may display
different settings to the front panel.
