7.1.2 Fixing the base to the support

Use the screws and the washers supplied with
the base.

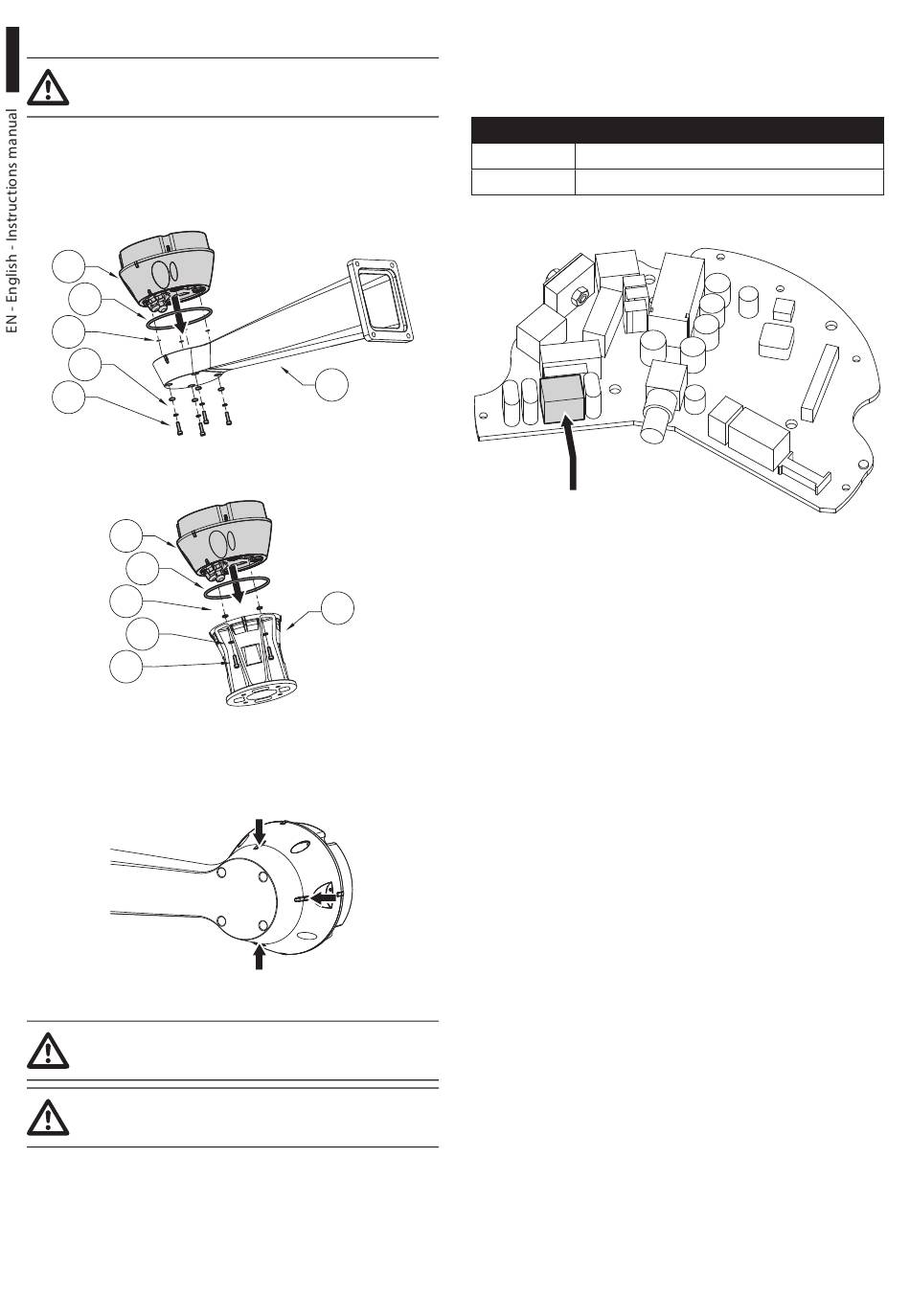

After having positioned gasket (01), fasten base (02)
on support (03) using screws (04), toothed spring
washers and the flat washers (05). Insert the screw-
sealing OR (06).
02
01
06
05
04
Fig. 8
02
01
06
05
04
Fig. 9
Align the 3 notches on the base with those on the
support as shown in the following figure.
Fig. 10
Apply a thread-locker on the holes of the
screws (Loctite 243®).
Pay attention to the fixing. Tightening torque:
4Nm.
14
7.1.3 Connection of the connector
board

7.1.3.1 Connector board description

BOARD DESCRIPTION
Connector
J2
Tab. 1
03
Fig. 11
03
Function
Board power supply (V )1
IN
J2
