4 Identification

4.1 Product description and type
designation
The ULISSE COMPACT HD is an IP66 Full HD network
PTZ camera that delivers excellent high-definition
picture quality.
The Full HD camera integrates a 30x optical zoom
lens and is able to accurately identify specific details
of a scene.
The flexible operator control of Pan/Tilt/Zoom
functions allows the images transmission over
Ethernet with H.264/AVC and MJPEG compression,
certified ONVIF, Profile S.
This HD PTZ camera can deliver from 2 to 4 H.264/
AVC or MJPEG streams simultaneously, up to a total of
20Mbits depending on the unit configuration.
The ULISSE COMPACT HD response to operator
commands is immediate.
The camera has Day/Night functionality for high
image quality in low light conditions. Moreover the
optional integrated LED illuminator delivers round-
the-clock clear images of the area.
Thanks to the built-in wiper, the images result always
perfectly clear; wide choice of tanks with washer
pump available with different capacities and delivery
heights.
ULISSE COMPACT HD can withstand to harsh external
environments, ensuring high speed and accurate
target detection at any time, with zero maintenance.
Thanks to its characteristics of reliability, robustness
and accuracy, this PTZ camera unit is the ideal
solution for demanding security applications,
including: traffic and highways control, borders,
stadiums and industries surveillance, prisons, military
installation and perimeter surveillance.
10

4.2 Product markings

Pan & tilt devices have a label complying with
CE markings.

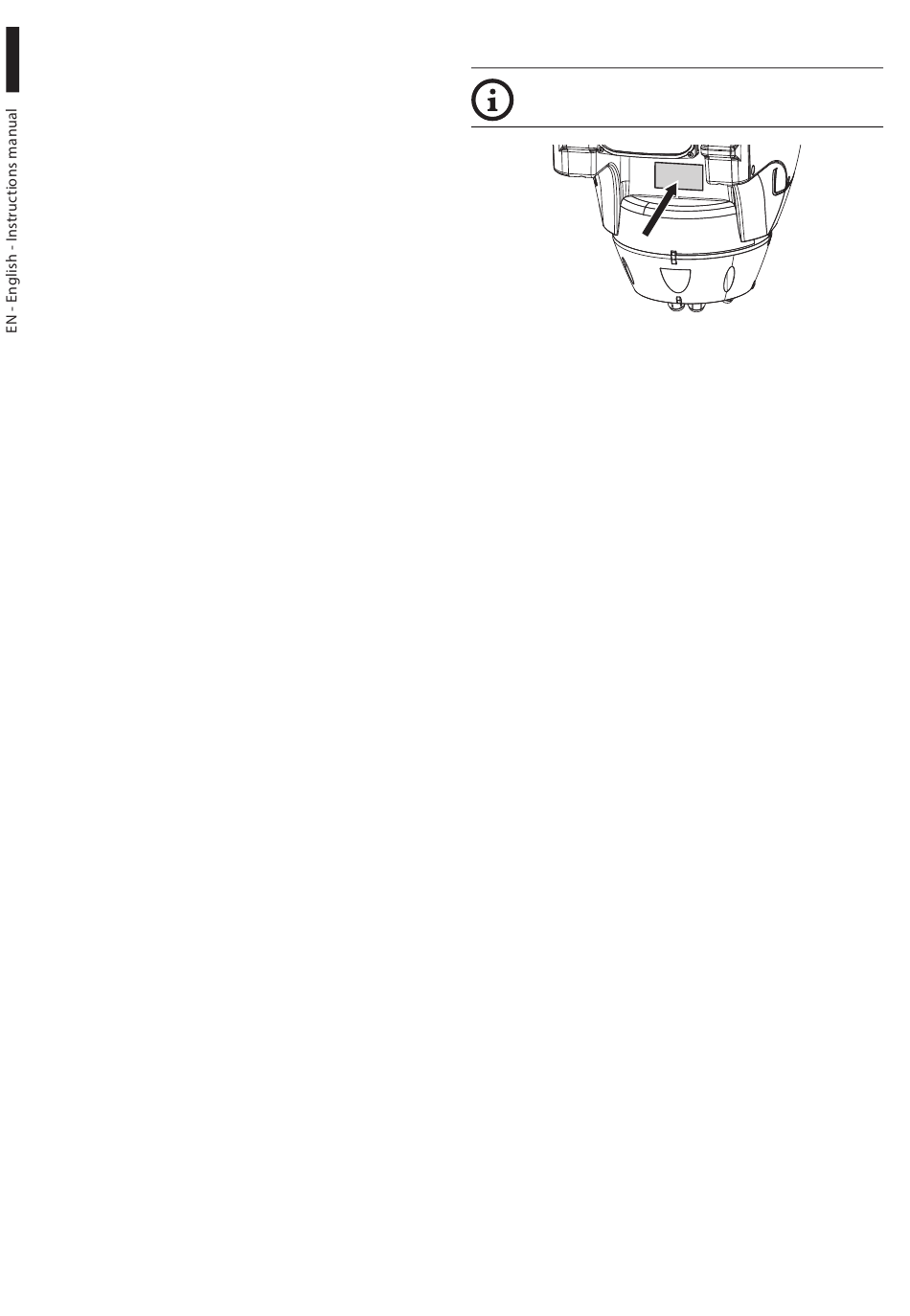

Fig. 2
The label shows:
• Model identification code (Extended 3/9 bar code).
• Power supply (Volt).
• Frequency (Hertz).
• Current consumption (Amps).
• Weatherproof standard (IP).
• Serial number.

4.2.1 Checking the markings

Before proceeding further with installation, make
sure the material supplied corresponds to the order
specification by examining the marking labels.
Never, under any circumstances, make any changes
or connections that are not shown in this handbook.
Improper use of the appliance can cause serious
hazards, risking the safety of personnel and of the
installation.
