LinMot P01-23 Montageanleitung Seite 91

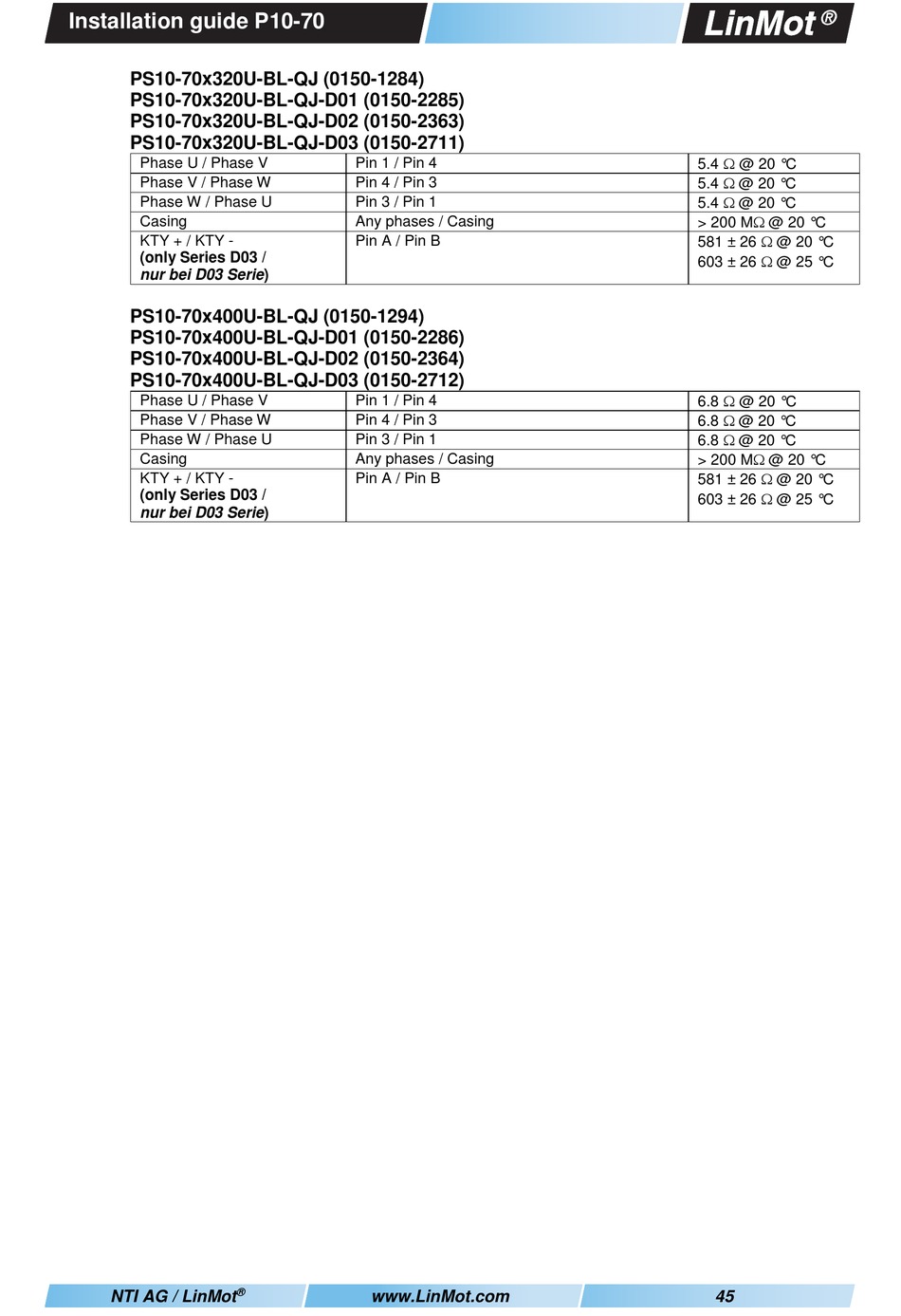

Installation guide P10-70
PS10-70x320U-BL-QJ (0150-1284)
PS10-70x320U-BL-QJ-D01 (0150-2285)
PS10-70x320U-BL-QJ-D02 (0150-2363)
PS10-70x320U-BL-QJ-D03 (0150-2711)
Phase U / Phase V
Phase V / Phase W
Phase W / Phase U
Casing
KTY + / KTY -
(only Series D03 /
nur bei D03 Serie)
PS10-70x400U-BL-QJ (0150-1294)
PS10-70x400U-BL-QJ-D01 (0150-2286)
PS10-70x400U-BL-QJ-D02 (0150-2364)
PS10-70x400U-BL-QJ-D03 (0150-2712)
Phase U / Phase V
Phase V / Phase W
Phase W / Phase U
Casing
KTY + / KTY -
(only Series D03 /
nur bei D03 Serie)
®
NTI AG / LinMot
Pin 1 / Pin 4
Pin 4 / Pin 3
Pin 3 / Pin 1
Any phases / Casing
Pin A / Pin B
Pin 1 / Pin 4
Pin 4 / Pin 3
Pin 3 / Pin 1
Any phases / Casing
Pin A / Pin B
www.LinMot.com
5.4  @ 20 °C
5.4 @ 20 °C
5.4 @ 20 °C
> 200 M@ 20 °C
581 ± 26 @ 20 °C
603 ± 26 @ 25 °C
6.8  @ 20 °C
6.8 @ 20 °C
6.8 @ 20 °C
> 200 M@ 20 °C
581 ± 26 @ 20 °C
603 ± 26 @ 25 °C
45
