L3070 Rev. E
Index:
English ............................................................... 1-9
Français ......................................................... 10-18
Deutsch ........................................................ 19-27
Italiano .......................................................... 28-36
Español ......................................................... 37-45
Nederlands ................................................... 46-54
Portuguese ................................................... 55-63
........................................................... 64-71
.......................................................... 72-79
Finnish ........................................................... 80-88
Norwegian ..................................................... 89-97
Svenska ....................................................... 98-106
Russian ...................................................... 107-115
Greek ......................................................... 116-125
Repair Parts Sheets for this product are available
from the Enerpac web site at www.enerpac.com, or
from your nearest Enerpac Authorized Service Center
or Enerpac Sales office.
1.0 IMPORTANT RECEIVING
INSTRUCTIONS
Visually inspect all components for shipping damage.
Shipping damage is not covered by warranty. If
shipping damage is found, notify carrier at once. The
carrier is responsible for all repair and replacement
costs resulting from damage in shipment.
SAFETY FIRST
2.0 SAFETY ISSUES
precautions to avoid personal injury or property
damage during system operation. Enerpac cannot be
responsible for damage or injury resulting from unsafe
product use, lack of maintenance or incorrect product
and/or system operation. Contact Enerpac when in
doubt as to the safety precautions and operations. If
you have never been trained on high-pressure
hydraulic safety, consult your distribution or service
center for a free Enerpac Hydraulic safety course.
Failure to comply with the following cautions and
warnings could cause equipment damage and
personal injury.
A CAUTION is used to indicate correct operating or
maintenance procedures and practices to prevent
damage to, or destruction of equipment or other
property.
A WARNING indicates a potential danger that
requires correct procedures or practices to avoid
personal injury.
A DANGER is only used when your action or lack of
action may cause serious injury or even death.
05/12
Read all instructions,
warnings and cautions
carefully. Follow all safety
Instruction Sheet

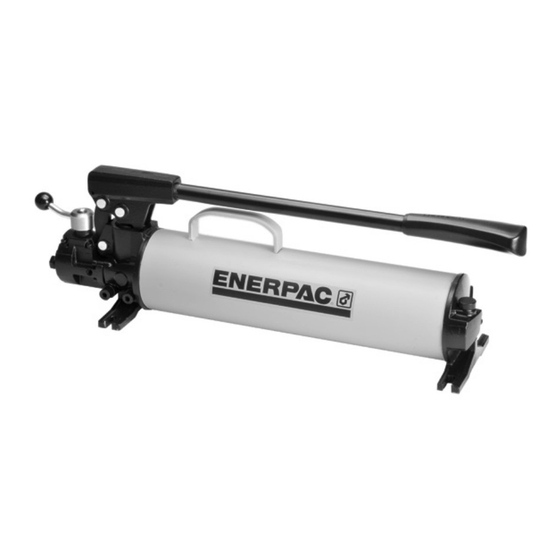

ULTIMA Series Hand Pumps
P-18, P-39, P-77, P-80, P-801 and P-84
WARNING:
protective gear when operating hydraulic
equipment.
WARNING: Stay clear of loads supported
by hydraulics. A cylinder, when used as a
load lifting device, should never be used
as a load holding device. After the load
has been raised or lowered, it must always be
blocked mechanically.
WARNING: USE ONLY RIGID PIECES
TO HOLD LOADS. Carefully select steel
or wood blocks that are capable of
supporting the load. Never use a hydraulic cylinder
as a shim or spacer in any lifting or pressing
application.
DANGER: To avoid personal injury
keep hands and feet away from cylinder
and workpiece during operation.
WARNING: Do not exceed equipment
ratings. Never attempt to lift a load
weighing more than the capacity of the
cylinder. Overloading causes equipment
failure and possible personal injury. The cylinders are
designed for a max. pressure of 700 bar [10,000 psi].
Do not connect a jack or cylinder to a pump with a
higher pressure rating.
WARNING: Never set the relief valve
pressure above 10,500 psi [725 bar].
Serious personal injury could result if this
maximum limit is exceeded. Damage to pump and
components may also occur.
WARNING:
pressure must not exceed the pressure
rating of the lowest rated component in
the system. Install pressure gauges in the
system to monitor operating pressure. It is your
window to what is happening in the system.
Wear proper personal
The system operating
