Overview
The HP Designjet 3D Removal System removes support material by immersing models in a bath of water
with a specific amount of cleaning agent bags added to the cleaning agent receptacle. The system heats
and circulates solution around the models in the cleaning tank. The solution dissolves the support material
without harming the underlying model material. Over time, depending on geometry and the amount of
support material, all the support material is dissolved and the models are ready to be removed, dried and
used for their intended purpose.
The system incorporates the following functions:
• Automatic water fill
• User selectable cleaning tank level (half or full)
• Automatic water drain
• Automatic timing device for user selectable short, medium, or long cycles
• Automatic lock/unlock before and after cycling
• Automatic rinse and drain cycle

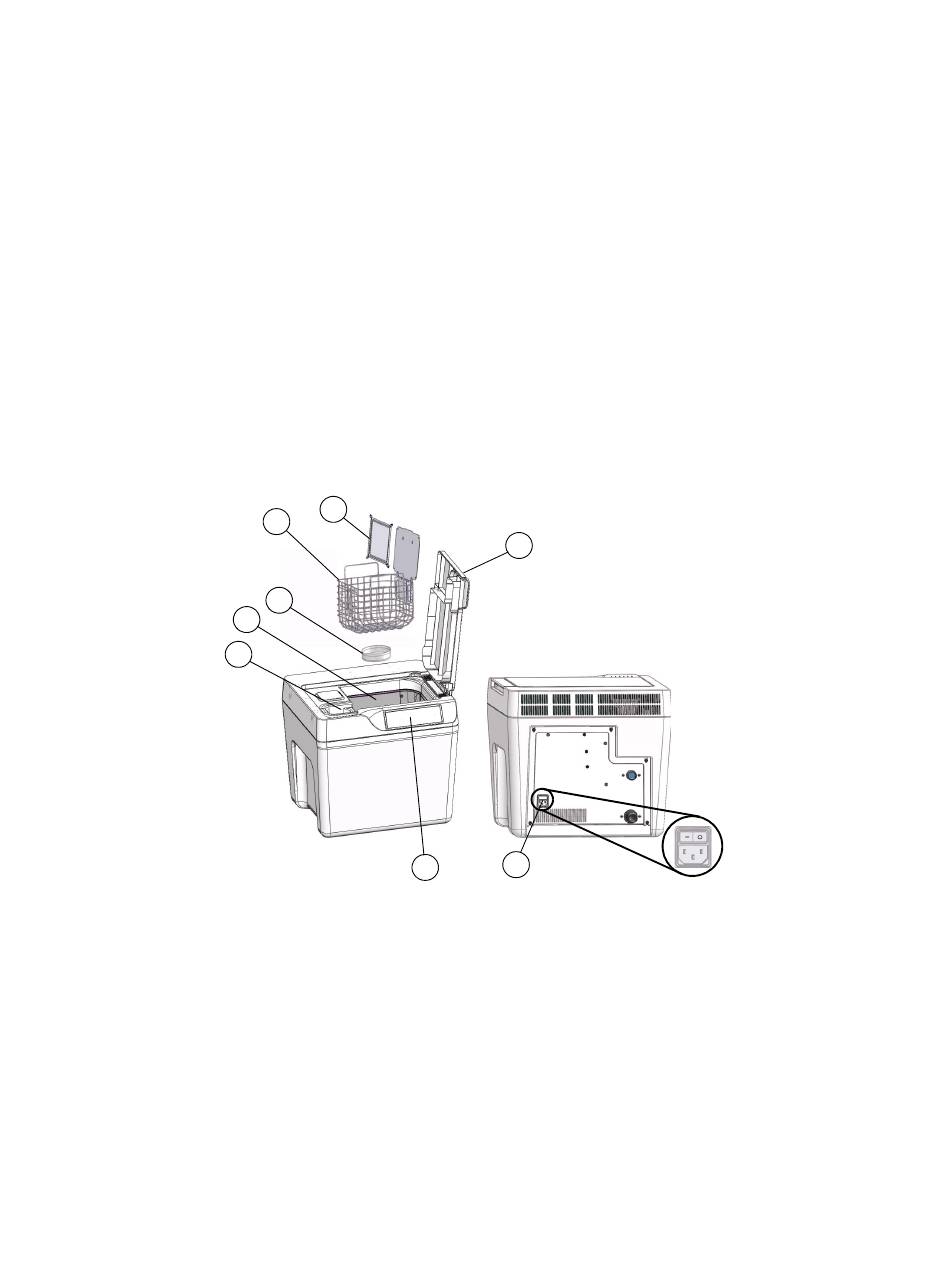

Major Components

4
3
2
1
1 Cleaning Agent Receptacle
2 Cleaning Tank
3 Strainer
4 Model Basket
5 Model Bag
6 System Lid
7 Control Panel
8 On/Off Switch and Power Cord Receptacle
5
7
2
6
8
