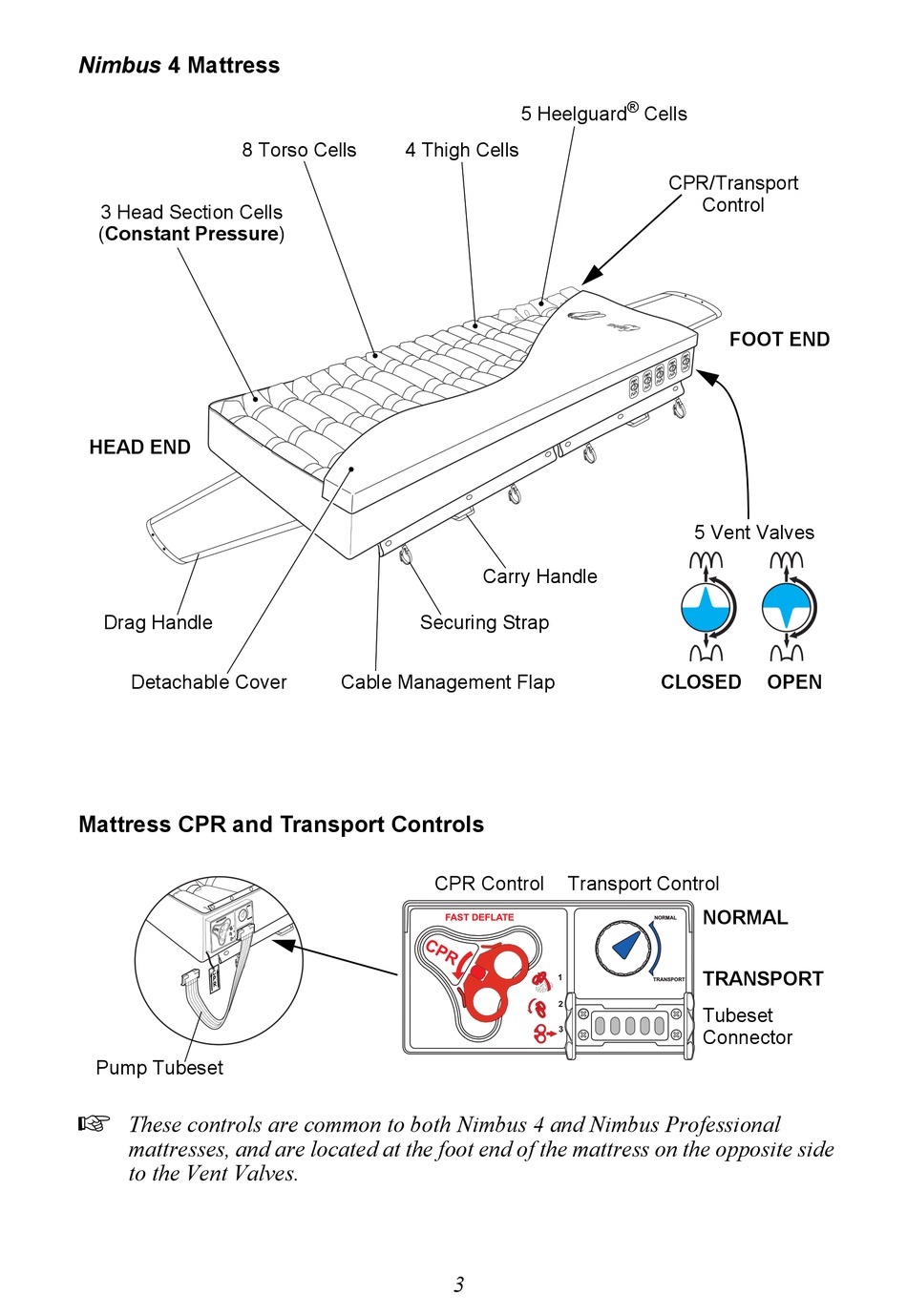

Nimbus 4 Mattress

8 Torso Cells
3 Head Section Cells
(Constant Pressure)
HEAD END
Drag Handle
Detachable Cover

Mattress CPR and Transport Controls

Pump Tubeset

These controls are common to both Nimbus 4 and Nimbus Professional
mattresses, and are located at the foot end of the mattress on the opposite side
to the Vent Valves.
4 Thigh Cells
Carry Handle
Securing Strap
Cable Management Flap
CPR Control
FAST DEFLATE
3
®
5 Heelguard Cells
CPR/Transport
CLOSED
Transport Control
NORMAL
1
TRANSPORT
2
3
Control
FOOT END
5 Vent Valves
OPEN
NORMAL
TRANSPORT
Tubeset
Connector
