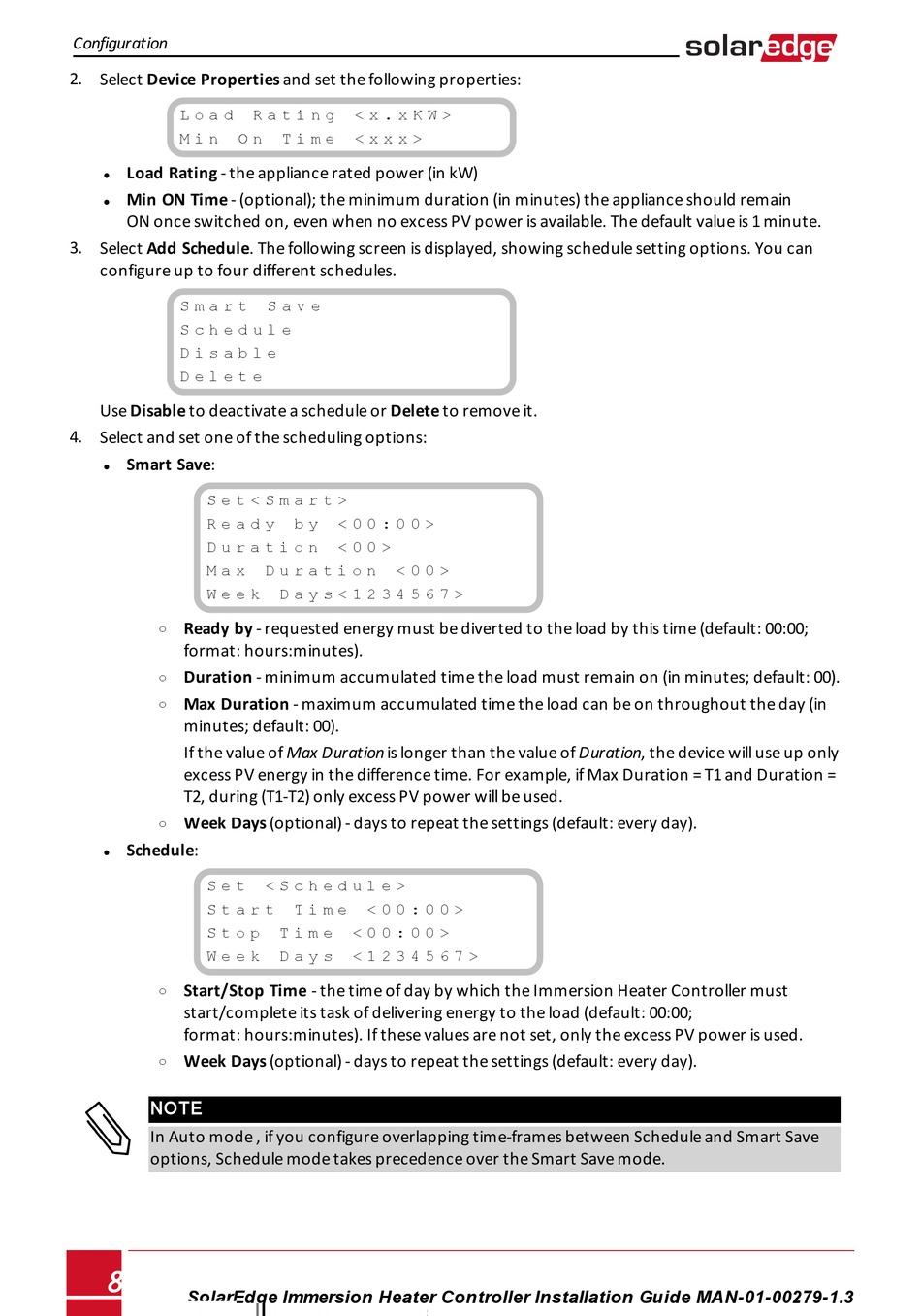

Configuration
2. Select Device Properties and set the following properties:
L o a d
M i n O n
Load Rating - the appliance rated power (in kW)
l
Min ON Time - (optional); the minimum duration (in minutes) the appliance should remain
l
ON once switched on, even when no excess PV power is available. The default value is 1 minute.
3. Select Add Schedule. The following screen is displayed, showing schedule setting options. You can
configure up to four different schedules.
S m a r t
S c h e d u l e
D i s a b l e
D e l e t e
Use Disable to deactivate a schedule or Delete to remove it.
4. Select and set one of the scheduling options:
Smart Save:
l
S e t < S m a r t >
R e a d y
D u r a t i o n
M a x
W e e k
Ready by - requested energy must be diverted to the load by this time (default: 00:00;
o
format: hours:minutes).
Duration - minimum accumulated time the load must remain on (in minutes; default: 00).
o
Max Duration - maximum accumulated time the load can be on throughout the day (in
o
minutes; default: 00).
If the value of Max Duration is longer than the value of Duration, the device will use up only
excess PV energy in the difference time. For example, if Max Duration = T1 and Duration =
T2, during (T1-T2) only excess PV power will be used.
Week Days (optional) - days to repeat the settings (default: every day).
o
Schedule:
l
S e t
S t a r t
S t o p
W e e k
Start/Stop Time - the time of day by which the Immersion Heater Controller must
o
start/complete its task of delivering energy to the load (default: 00:00;
format: hours:minutes). If these values are not set, only the excess PV power is used.
Week Days (optional) - days to repeat the settings (default: every day).
o
NOTE
In Auto mode , if you configure overlapping time-frames between Schedule and Smart Save
options, Schedule mode takes precedence over the Smart Save mode.
