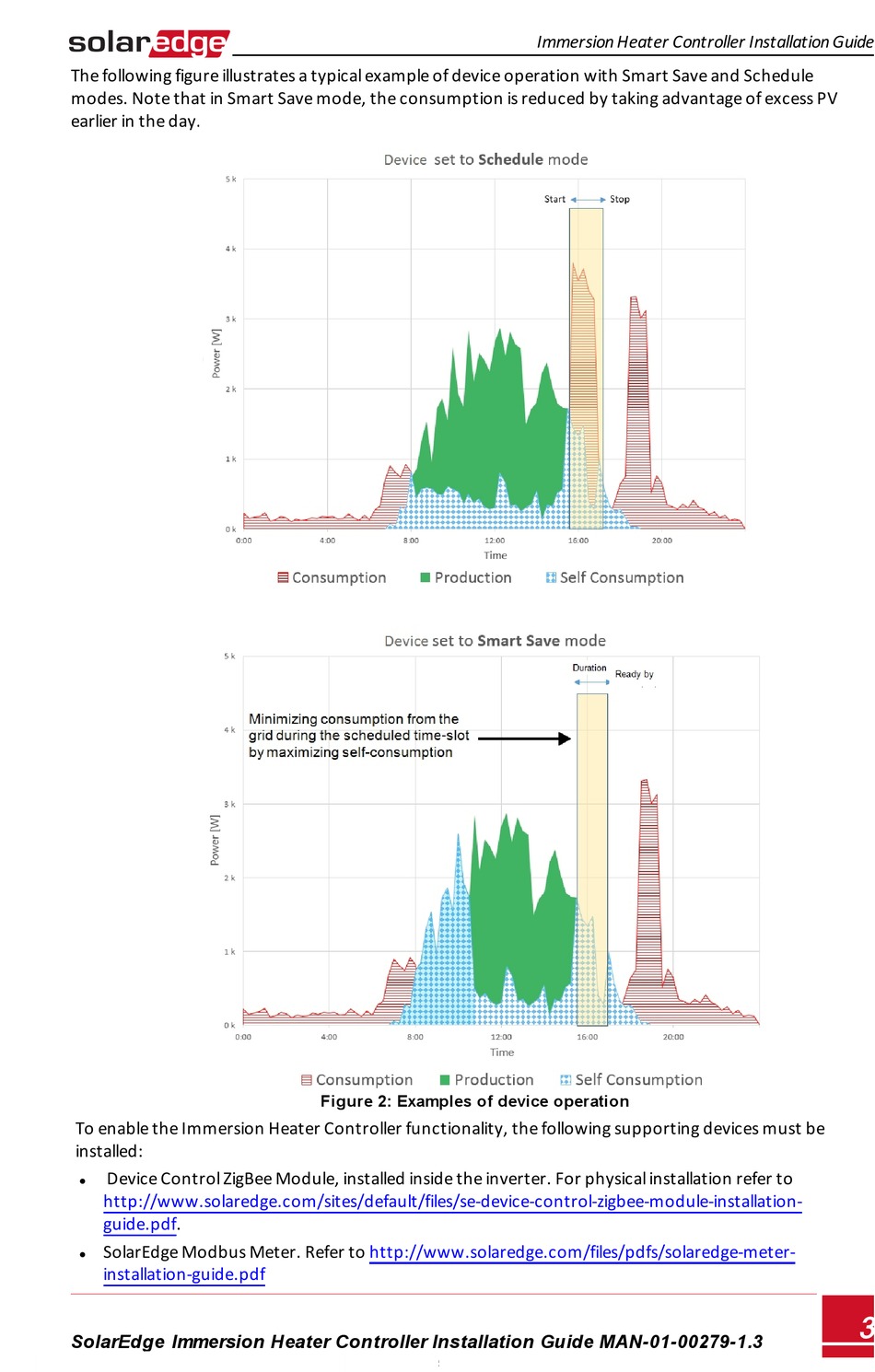

The following figure illustrates a typical example of device operation with Smart Save and Schedule
modes. Note that in Smart Save mode, the consumption is reduced by taking advantage of excess PV
earlier in the day.
To enable the Immersion Heater Controller functionality, the following supporting devices must be
installed:
Device Control ZigBee Module, installed inside the inverter. For physical installation refer to
l
http://www.solaredge.com/sites/default/files/se-device-control-zigbee-module-installation-
guide.pdf.
SolarEdge Modbus Meter. Refer to
l
installation-guide.pdf
SolarEdge-Immersion Heater Controller Installation Guide MAN-01-00279-1.3
Figure 2: Examples of device operation
http://www.solaredge.com/files/pdfs/solaredge-meter-
